TE Connectivity AMP Connectors 102153-7 Equivalent & Substitute Parts

Part Overview

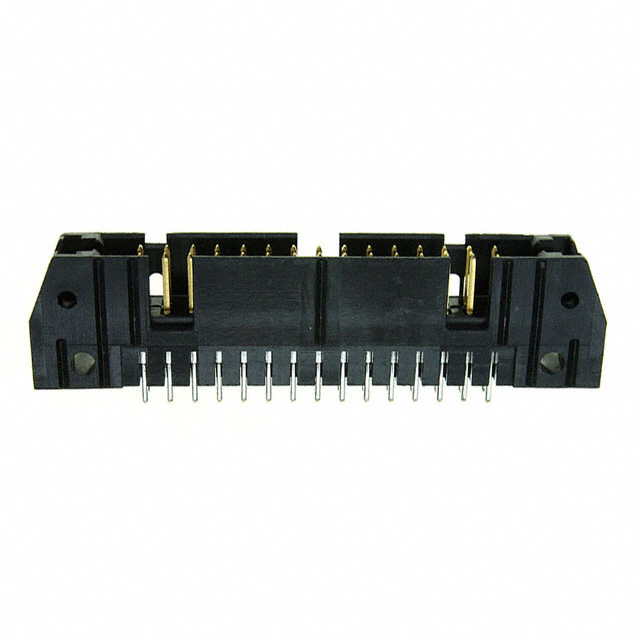

The TE Connectivity AMP Connectors 102153-7 is a rectangular connector header designed for through-hole mounting applications. This shrouded, 30-position male pin header operates with a 0.100" (2.54mm) pitch and supports board-to-cable/wire connections with push-pull fastening. The connector is classified as Active product status and is suitable for applications requiring reliable solder termination with gold or gold-palladium mating contact finish.

Substitute parts are identified to provide alternative sourcing options when the primary part number is unavailable or when inventory requirements necessitate alternative stock sources while maintaining full electrical and mechanical compatibility.

Substiute Parts

102153-7

TE Connectivity AMP ConnectorsIn Stock: 1063102153-7 Datasheet

Current PartRFQ

5102153-7

TE Connectivity AMP ConnectorsIn Stock: 21035102153-7 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution between the main part number 102153-7 and the alternative part number 5102153-7 is based on strict equivalence of the following critical parameters:

Electrical Compatibility Parameters:

• Contact Type: Male Pin
• Number of Positions: 30
• Pitch - Mating: 0.100" (2.54mm)
• Row Spacing - Mating: 0.100" (2.54mm)
• Current Rating: 1A per Contact
• Operating Temperature Range: -55°C ~ 105°C

Mechanical Compatibility Parameters:

• Connector Type: Header
• Number of Rows: 2
• Mounting Type: Through Hole
• Shrouding: Shrouded - 4 Wall
• Fastening Type: Push-Pull
• Termination: Solder
• Contact Length - Mating: 0.240" (6.10mm)
• Contact Length - Post: 0.110" (2.79mm)
• Overall Contact Length: 0.639" (16.23mm)
• Insulation Height: 0.549" (13.94mm)
• Contact Shape: Square
• Contact Finish - Mating: Gold or Gold-Palladium
• Contact Finish Thickness - Mating: 15.0µin (0.38µm)
• Contact Finish Thickness - Post: 100.0µin (2.54µm)
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black
• Features: Mounting Flange
• Series: AMP-Latch

Both parts maintain identical form, fit, and function across all specified electrical and mechanical parameters, establishing direct substitutability for component selection purposes.

Parameter Comparison

Engineering Selection Recommendations

Both part numbers 102153-7 and 5102153-7 are classified as Active product status and maintain identical electrical and mechanical specifications across all critical parameters. Selection between these parts is based on the following factors:

Compliance Considerations: The substitute part 5102153-7 carries ROHS3 Compliant certification, whereas the main part 102153-7 is marked as Not applicable for RoHS status. Applications subject to RoHS3 regulatory requirements should specify part number 5102153-7.

Contact Finish Specification: The main part 102153-7 specifies Tin-Lead contact finish on the post, while the substitute part 5102153-7 specifies Tin contact finish on the post. Both maintain identical contact finish thickness of 100.0µin (2.54µm) and identical mating contact finish specifications. This distinction may be relevant for applications with specific soldering process requirements or environmental constraints.

Inventory and Availability: The substitute part 5102153-7 maintains higher inventory levels (2084 Pcs) compared to the main part 102153-7 (980 Pcs), providing enhanced availability for high-volume procurement scenarios.

Both parts are suitable for direct substitution in applications requiring 30-position, 2-row rectangular connectors with 0.100" (2.54mm) pitch, through-hole mounting, and push-pull fastening.

Frequently Asked Questions (FAQ)

Q: Are parts 102153-7 and 5102153-7 electrically interchangeable?

A: Yes. Both parts maintain identical electrical specifications including 30-position configuration, 0.100" (2.54mm) mating pitch, 1A per contact current rating, and -55°C ~ 105°C operating temperature range.

Q: Are parts 102153-7 and 5102153-7 mechanically interchangeable?

A: Yes. Both parts are identical in form and fit, featuring 2-row through-hole mounting, shrouded 4-wall design, push-pull fastening, and solder termination with matching contact geometries and insulation dimensions.

Q: What is the difference in contact finish between these parts?

A: The main part 102153-7 specifies Tin-Lead contact finish on the post, while the substitute part 5102153-7 specifies Tin contact finish on the post. Both maintain identical contact finish thickness of 100.0µin (2.54µm) and identical mating contact finish of Gold or Gold-Palladium at 15.0µin (0.38µm).

Q: Which part should be selected for RoHS3 compliant applications?

A: Part number 5102153-7 carries ROHS3 Compliant certification and is the appropriate selection for applications subject to RoHS3 regulatory requirements.

Q: Are both parts suitable for board-to-cable/wire connections?

A: Yes. Both parts are classified as Board to Cable/Wire style connectors with identical solder termination specifications and mounting flange features.

Q: What is the pitch specification for these connectors?

A: Both parts feature a mating pitch of 0.100" (2.54mm) with row spacing of 0.100" (2.54mm), establishing a standard 2-row configuration with uniform spacing.

Q: Are these parts suitable for high-temperature applications?

A: Yes. Both parts maintain an operating temperature range of -55°C ~ 105°C and carry UL94 V-0 material flammability rating, suitable for industrial and commercial temperature environments.

Q: What is the current handling capacity per contact?

A: Both parts are rated for 1A per contact, providing consistent current distribution across all 30 positions.
