Phoenix Contact 1020009 Circuit Breaker 30A - Equivalent & Substitute Parts

Part Overview

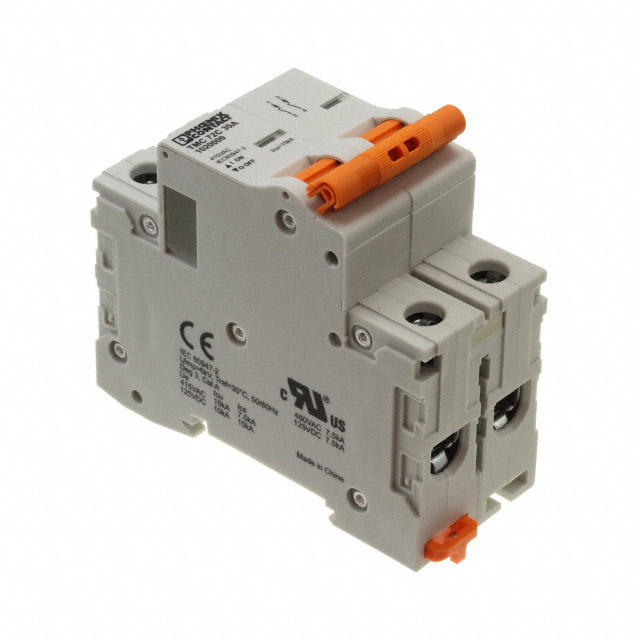

The Phoenix Contact 1020009 is a thermal magnetic circuit breaker rated for 30A at 277V AC and 125V DC, designed for DIN rail mounting with lever actuation. This two-pole breaker is part of the TMC 7 series and maintains active product status with ROHS3 compliance. Alternative equivalent parts are necessary to support supply chain flexibility, inventory management, and regional availability requirements while maintaining identical electrical and mechanical performance specifications.

Substiute Parts

1020009

Phoenix ContactIn Stock: 9641020009 Datasheet

Current PartRFQ

1019945

Phoenix ContactIn Stock: 10121019945 Datasheet

Parametric EquivalentRFQ

1020076

Phoenix ContactIn Stock: 8201020076 Datasheet

Parametric EquivalentRFQ

GMB63H2PC30

Carlo Gavazzi Inc.In Stock: 896GMB63H2PC30 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Phoenix Contact 1020009 are classified based on strict parametric equivalence across the following critical specifications:

Primary Equivalence Criteria:

• Current Rating: 30A (exact match required)
• Number of Poles: 2 (exact match required)
• Mounting Type: DIN Rail (exact match required)
• Breaker Type: Thermal Magnetic (exact match required)
• Actuator Type: Lever (exact match required)

Voltage Compatibility Considerations: Substitutes are grouped into two categories based on voltage ratings:

1. Direct Voltage Equivalents (277V AC / 125V DC): Parts 1019945 and 1020076 maintain identical voltage specifications to the main part, ensuring direct interchangeability in existing circuit designs without modification.

2. Higher Voltage Rated Equivalent (480V AC): Part GMB63H2PC30 from Carlo Gavazzi Inc. operates at 480V AC, representing a higher voltage-rated alternative suitable for applications where the main part's voltage rating is exceeded or where cross-manufacturer standardization is required.

All substitute parts maintain identical current ratings, pole configuration, mounting methodology, and actuation mechanism as the primary part.

Parameter Comparison

Engineering Selection Recommendations

Phoenix Contact 1019945 and 1020076: These parts are parametric equivalents to the main part 1020009, maintaining identical electrical specifications (30A, 277V AC, 125V DC) and mechanical configuration. Both parts retain ROHS3 compliance and active product status. Selection between these three Phoenix Contact variants should be based on inventory availability and supply chain logistics, as all three are functionally interchangeable within the TMC 7 series.

Carlo Gavazzi Inc. GMB63H2PC30: This part operates at 480V AC, exceeding the voltage rating of the main part. This substitute is suitable for applications requiring higher voltage operation or where cross-manufacturer component standardization is mandated. The GMB63H2PC30 maintains the 30A current rating, two-pole configuration, DIN rail mounting, and lever actuation. Selection of this part requires confirmation that the higher voltage rating is compatible with the target application circuit design.

All substitute parts maintain active product status and are available in production quantities.

Frequently Asked Questions (FAQ)

Q: Can Phoenix Contact 1019945 or 1020076 be used as direct replacements for 1020009?

A: Yes. Parts 1019945 and 1020076 are parametric equivalents with identical current ratings (30A), voltage specifications (277V AC / 125V DC), pole configuration (2-pole), mounting type (DIN rail), and actuation mechanism (lever). These parts are interchangeable within the TMC 7 series.

Q: What is the primary difference between the three Phoenix Contact variants?

A: The three Phoenix Contact parts (1020009, 1019945, 1020076) are functionally identical. Differences exist only in REACH compliance status and inventory levels. Parts 1019945 and 1020076 are REACH Unaffected, while 1020009 is REACH Affected. Selection should be based on supply chain requirements and regulatory compliance needs for the end application.

Q: Can the Carlo Gavazzi GMB63H2PC30 replace the Phoenix Contact 1020009 in all applications?

A: The GMB63H2PC30 maintains the same current rating (30A), pole configuration (2-pole), mounting type (DIN rail), and actuation mechanism (lever). However, it operates at 480V AC, which exceeds the 277V AC rating of the main part. This substitute is suitable only for applications designed for 480V AC operation or where higher voltage capability is required.

Q: Are there packaging or mechanical mounting differences between these parts?

A: All substitute parts are packaged in boxes and designed for DIN rail mounting with identical lever actuation. No mechanical modification is required for installation compatibility.

Q: What compliance certifications apply to each substitute part?

A: Phoenix Contact 1020009, 1019945, and 1020076 are ROHS3 compliant. The Carlo Gavazzi GMB63H2PC30 carries UL489 and CSA approvals. Compliance requirements for the target application should determine which part is appropriate for selection.
