Amphenol ICC 10117835-001LF USB 3.0 Type-A Receptacle Connector - Equivalent & Substitute Parts

Part Overview

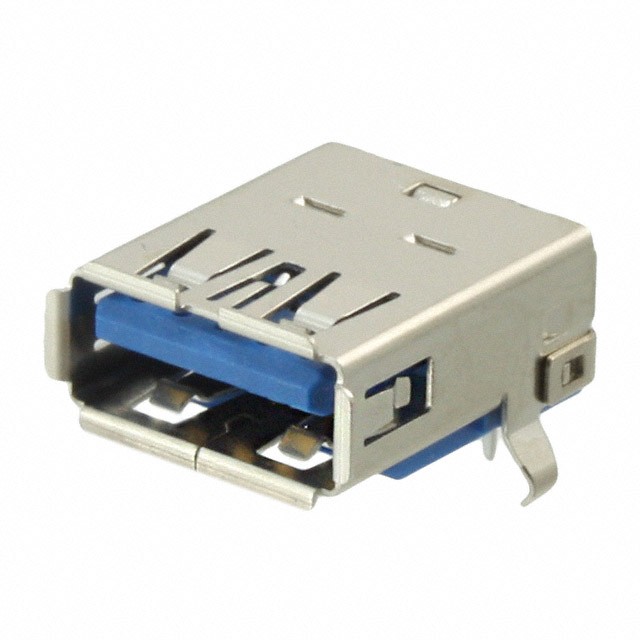

The Amphenol ICC 10117835-001LF is a USB-A Type-A USB 3.2 Gen 1 receptacle connector with 9 positions, designed for through-hole, right-angle mounting with horizontal orientation. This connector features board lock capability and solder termination. The part is currently listed as obsolete, making equivalent and substitute parts necessary for ongoing design support and component sourcing.

Substiute Parts

10117835-001LF

Amphenol ICC (FCI)In Stock: 369210117835-001LF Datasheet

Current PartRFQ

10153890-3120LF

Amphenol ICC (FCI)In Stock: 303210153890-3120LF Datasheet

DirectRFQ

54-00007

Tensility International CorpIn Stock: 76854-00007 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 10117835-001LF are identified based on matching the following critical parameters:

• Connector Type: USB-A (USB TYPE-A)
• Specification: USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed USB 3.0)
• Number of Contacts: 9
• Gender: Receptacle
• Mounting Type: Through Hole, Right Angle
• Mounting Feature: Horizontal
• Termination: Solder
• Features: Board Lock
• Contact Finish: Gold
• Shielding: Unshielded
• Insulation Color: Blue

Two substitute parts meet these criteria:

1. 10153890-3120LF (Amphenol ICC) - Direct manufacturer equivalent with matching core specifications
2. 54-00007 (Tensility International Corp) - Parametric equivalent with full specification alignment

Parameter Comparison

Engineering Selection Recommendations

10153890-3120LF is the direct manufacturer equivalent from Amphenol ICC (FCI), the original manufacturer of the 10117835-001LF. This part maintains the same manufacturer lineage and RoHS compliance status. With 2972 pieces in stock, this part provides continuity for designs currently using the obsolete 10117835-001LF.

54-00007 from Tensility International Corp is a parametric equivalent that matches all critical functional specifications including connector type, contact count, mounting configuration, and termination method. This part is ROHS3 compliant and offers higher current rating (3A versus 1.8A) and extended mating cycle rating (1500 cycles). The operating temperature range is -40°C to 85°C, which is narrower at the lower end compared to the main part (-55°C). With 694 pieces in stock, this part is suitable for applications where the temperature and current specifications align with design requirements.

Both substitute parts are active products with current availability, making them viable alternatives to the obsolete 10117835-001LF for new designs and ongoing production support.

Frequently Asked Questions (FAQ)

Q: Can 10153890-3120LF be used as a direct replacement for 10117835-001LF?

A: 10153890-3120LF is the direct manufacturer equivalent from Amphenol ICC (FCI). Both parts are from the same manufacturer and share the same core connector category. However, detailed specification parameters for 10153890-3120LF are not fully documented in available data. Verification against your specific application requirements is necessary before implementation.

Q: What are the key differences between 54-00007 and the main part 10117835-001LF?

A: Both parts share identical connector type (USB-A), specification (USB 3.2 Gen 1), contact count (9), mounting configuration (through-hole, right-angle, horizontal), and termination method (solder). Key differences include: manufacturer (Tensility International Corp versus Amphenol ICC), operating temperature range (-40°C to 85°C versus -55°C to 85°C), current rating (3A versus 1.8A), voltage rating (30VDC versus 30VAC), and mating cycles (1500 versus not specified). The 54-00007 offers higher current capacity and cycle rating.

Q: Are all substitute parts RoHS compliant?

A: Yes. The main part 10117835-001LF is RoHS Compliant. The direct equivalent 10153890-3120LF is RoHS Compliant. The parametric equivalent 54-00007 is ROHS3 Compliant. All parts meet RoHS requirements.

Q: What is the moisture sensitivity level for these connectors?

A: All three parts—10117835-001LF, 10153890-3120LF, and 54-00007—have a Moisture Sensitivity Level (MSL) of 1 (Unlimited), indicating no moisture sensitivity restrictions for storage and handling.

Q: Which substitute part should I select for a new design?

A: Selection depends on your specific application requirements. If you require the exact manufacturer (Amphenol ICC) and direct product lineage, choose 10153890-3120LF. If your application requires higher current capacity (3A), extended mating cycles (1500), and can operate within the -40°C to 85°C temperature range, 54-00007 is suitable. Both parts are active products with current inventory availability.

Q: What is the packaging format for these parts?

A: The main part 10117835-001LF packaging is not specified. Both substitute parts—10153890-3120LF and 54-00007—are supplied in Tray packaging.
