Equivalent & Substitute Parts for 10028542-001LF

Part Overview

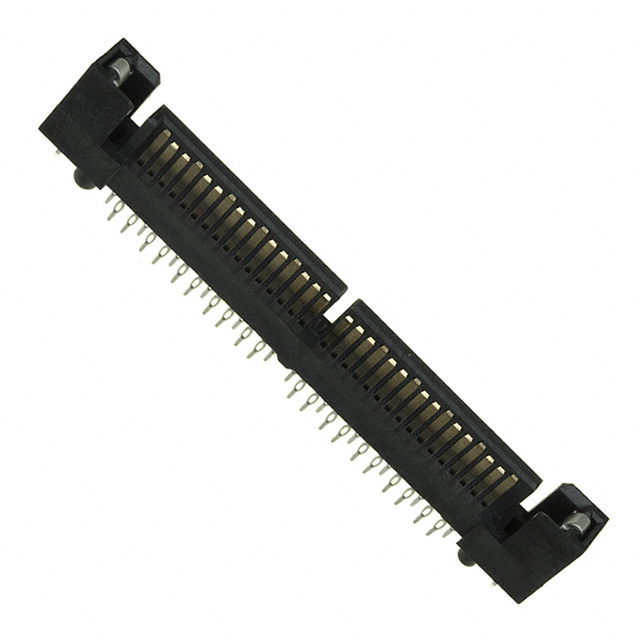

The 10028542-001LF is a 32 Position SAS, 4x Header Connector with press-fit through-hole termination, manufactured by Amphenol ICC (FCI). This connector features board guide and board lock functionality with gold-plated contacts. The part is currently classified as obsolete, making identification of suitable substitute components essential for ongoing system support and procurement planning.

Substiute Parts

10028542-001LF

Amphenol ICC (FCI)In Stock: 82210028542-001LF Datasheet

Current PartRFQ

10028542-003LF

Amphenol ICC (FCI)In Stock: 109110028542-003LF Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 10028542-001LF is determined by strict equivalence across the following critical parameters:

• Connector Type: SAS, 4x configuration
• Number of Positions: 32 positions
• Connector Style: Header format
• Mounting Type: Through hole installation
• Termination Method: Press-fit technology
• Contact Finish: Gold plating at 30.0µin (0.76µm) thickness
• Features: Board guide and board lock presence

The substitute part 10028542-003LF maintains identical electrical and mechanical specifications across all these parameters, differing only in packaging format and product status classification.

Parameter Comparison

Engineering Selection Recommendations

The 10028542-003LF is the direct functional equivalent to the obsolete 10028542-001LF. Both parts share identical connector specifications, electrical characteristics, and mechanical dimensions. The primary distinction is product status: 10028542-003LF is currently active in production with RoHS compliance certification, whereas 10028542-001LF is obsolete.

For new designs and ongoing procurement, 10028542-003LF is the appropriate selection. The tray packaging format of the substitute part accommodates standard component handling and storage procedures. Both parts maintain equivalent performance within the same application context.

Frequently Asked Questions (FAQ)

Q: Are 10028542-001LF and 10028542-003LF electrically identical?

A: Yes. Both parts feature identical 32-position SAS, 4x header connector specifications with press-fit through-hole termination, gold contact finish at 30.0µin thickness, and board guide/board lock features.

Q: What is the primary reason for substitution?

A: The 10028542-001LF is classified as obsolete. The 10028542-003LF is the active production equivalent, ensuring continued availability and supply chain reliability.

Q: Does packaging format affect connector performance?

A: No. Packaging format (tray versus unspecified) does not affect electrical or mechanical performance. It impacts only handling, storage, and logistics procedures.

Q: Is RoHS compliance a functional difference?

A: RoHS compliance is a regulatory and environmental specification, not a functional performance parameter. The 10028542-003LF meets RoHS requirements, which may be mandatory depending on application and regional regulations.

Q: Can these connectors be used interchangeably in existing assemblies?

A: Yes. Identical connector type, position count, mounting method, and termination technology ensure direct interchangeability in PCB applications designed for the 10028542-001LF.
