Blackfin® Embedded Module CM-BF561 600MHz x 2 128KB (100-1214-1) Equivalent & Substitute Parts

Part Overview

The BECOM Systems GmbH 100-1214-1 is a Blackfin® Embedded Module featuring a dual-core CM-BF561 processor running at 600MHz per core with 128KB internal RAM and 32MB flash memory. This module is classified as an MPU Core embedded component with dual 100-pin expansion connectors.

The 100-1214-1 has reached obsolete product status. Identifying functionally equivalent substitute parts is essential for system redesign, long-term supply chain planning, and production continuity when original inventory becomes unavailable.

Substiute Parts

100-1214-1

BECOM Systems GmbHIn Stock: 1136100-1214-1 Datasheet

Current PartRFQ

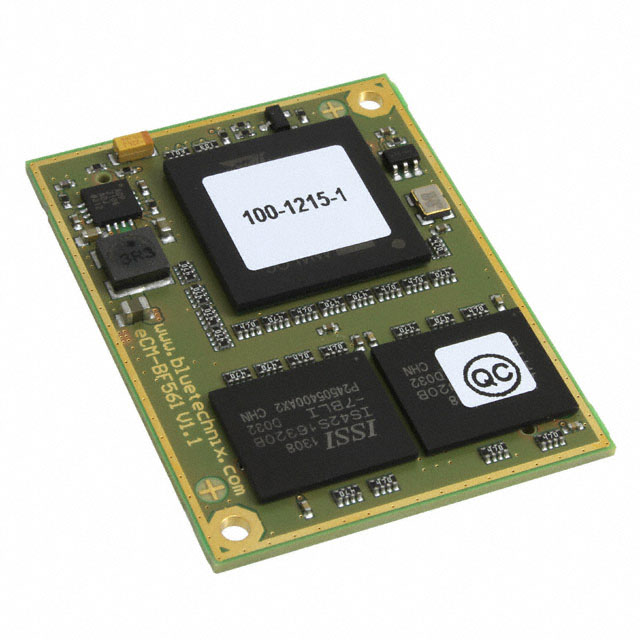

100-1215-1

BECOM Systems GmbHIn Stock: 921100-1215-1 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The 100-1215-1 qualifies as a direct substitute for the 100-1214-1 based on the following critical parameters:

• Core Processor: Both use the identical CM-BF561 dual-core architecture
• Processing Speed: Both operate at 600MHz x 2
• Memory Configuration: Both feature 32MB flash and 128KB RAM
• Connector Interface: Both provide Expansion 2 x 100 connectors
• Physical Dimensions: Both measure 1.730" L x 1.300" W (44.00mm x 33.00mm)
• Manufacturer: Both are manufactured by BECOM Systems GmbH

The primary differences between these parts relate to product lifecycle status, packaging format, and environmental specifications rather than functional capability.

Parameter Comparison

Engineering Selection Recommendations

The 100-1215-1 is the direct functional equivalent of the 100-1214-1 for applications requiring the CM-BF561 dual-core processor architecture at 600MHz with 32MB flash and 128KB RAM.

Product Status Consideration: The 100-1215-1 maintains Active product status with current manufacturing support, whereas the 100-1214-1 is Obsolete. For new designs or production continuity, the 100-1215-1 is the appropriate selection.

Environmental Specifications: The 100-1215-1 supports an extended operating temperature range of -40°C to 85°C compared to the 100-1214-1 range of 0°C to 70°C. Applications requiring operation below 0°C or above 70°C must use the 100-1215-1.

Compliance and Reliability: The 100-1215-1 carries ROHS3 compliance certification and features MSL 1 (Unlimited moisture sensitivity), indicating superior handling and storage characteristics compared to the 100-1214-1 MSL 5A (24 Hours).

Packaging: The 100-1215-1 is supplied in Cut Tape (CT) format, which may require adjustment to receiving and handling procedures if the original 100-1214-1 used different packaging.

Frequently Asked Questions (FAQ)

Q: Can the 100-1215-1 directly replace the 100-1214-1 in existing designs?

A: Yes. Both parts share identical processor architecture, speed, memory configuration, connector type, and physical dimensions. The 100-1215-1 is functionally equivalent and pin-compatible.

Q: What are the key differences between these parts?

A: The primary differences are product lifecycle status (100-1215-1 is Active; 100-1214-1 is Obsolete), operating temperature range (100-1215-1 supports -40°C to 85°C versus 0°C to 70°C), moisture sensitivity level (100-1215-1 is MSL 1 versus MSL 5A), and RoHS compliance (100-1215-1 is ROHS3 compliant).

Q: Are there any connector or pinout differences?

A: No. Both parts feature identical Expansion 2 x 100 connectors and maintain the same 1.730" L x 1.300" W physical footprint.

Q: Which part should be selected for new production?

A: The 100-1215-1 should be selected for new designs and ongoing production due to its Active product status, extended environmental specifications, and superior moisture handling characteristics.

Q: Does the 100-1215-1 require different handling procedures?

A: The 100-1215-1 features MSL 1 (Unlimited), which provides greater flexibility in storage and handling compared to the 100-1214-1 MSL 5A (24 Hours). No special handling modifications are required; standard MSL 1 procedures apply.

Q: Are both parts manufactured by the same company?

A: Yes. Both the 100-1214-1 and 100-1215-1 are manufactured by BECOM Systems GmbH and are part of the Blackfin® embedded module series.
