Littelfuse 0MIN015.V Automotive Miniature Blade Fuse - Equivalent & Substitute Parts

Part Overview

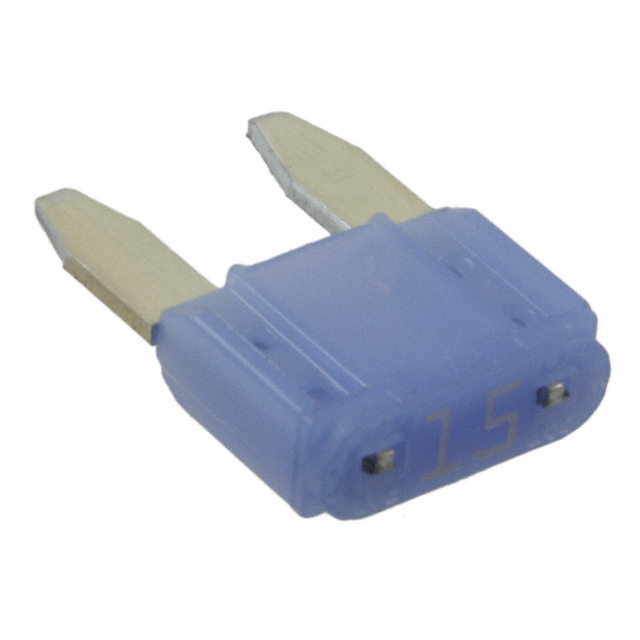

The Littelfuse 0MIN015.V is a 15 A, 32 V AC/DC automotive miniature blade fuse designed for circuit protection in automotive applications. This fast-blow fuse requires a compatible holder for installation and is classified as an active product with full regulatory compliance. Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across the same product family, ensuring direct interchangeability without circuit redesign or holder modification.

Substiute Parts

0MIN015.V

Littelfuse Inc.In Stock: 8140MIN015.V Datasheet

Current PartRFQ

0MIN015.HXGLO

Littelfuse Inc.In Stock: 11950MIN015.HXGLO Datasheet

Parametric EquivalentRFQ

0MIN015.MXGLO

LittelfuseIn Stock: 13970MIN015.MXGLO Datasheet

Parametric EquivalentRFQ

0MIN015.VP

LittelfuseIn Stock: 7870MIN015.VP Datasheet

Parametric EquivalentRFQ

0MIN015.VPGLO

Littelfuse Inc.In Stock: 6810MIN015.VPGLO Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 0MIN015.V are qualified based on strict parametric equivalence across the following critical criteria:

• Current Rating: 15 A (exact match required)
• Voltage Rating: 32 V AC and 32 V DC (exact match required)
• Response Time: Fast Blow (exact match required)
• Package / Case: Blade, Miniature (exact match required)
• Physical Dimensions: 0.429" L x 0.150" W x 0.346" H (exact match required)
• Fuse Type: Automotive (exact match required)
• Mounting Type: Requires Holder (exact match required)

All substitute parts listed maintain these parameters without deviation. Substitution is valid only when all electrical and mechanical specifications align with the original part number.

Parameter Comparison

Engineering Selection Recommendations

All listed substitute parts maintain active product status and full regulatory compliance with SAE and UL approvals. Selection between 0MIN015.V and its substitutes should be based on inventory availability and packaging requirements. The 0MIN015.VP variant is supplied in 5-pack card packaging, while all other variants are supplied in bulk packaging. All parts are REACH Unaffected and classified under ECCN EAR99 with HTSUS code 8536.10.0040. No electrical or mechanical performance differentiation exists between these part numbers.

Frequently Asked Questions (FAQ)

Q: Can 0MIN015.HXGLO, 0MIN015.MXGLO, 0MIN015.VP, and 0MIN015.VPGLO be used interchangeably with 0MIN015.V?

A: Yes. All substitute parts share identical electrical ratings (15 A, 32 V AC/DC), response time (Fast Blow), physical dimensions (10.90mm x 3.80mm x 8.80mm), and package type (Blade, Miniature). Direct substitution is valid without circuit modification or holder replacement.

Q: What is the difference between bulk and card packaging variants?

A: The 0MIN015.VP is supplied in 5-pack card packaging, while 0MIN015.V, 0MIN015.HXGLO, 0MIN015.MXGLO, and 0MIN015.VPGLO are supplied in bulk packaging. Electrical and mechanical specifications are identical. Packaging selection depends on procurement and inventory management requirements.

Q: Are all substitute parts compliant with the same regulatory standards?

A: All parts are ROHS3 Compliant and REACH Unaffected. The main part 0MIN015.V and substitutes 0MIN015.HXGLO and 0MIN015.VPGLO carry both SAE and UL approvals. The 0MIN015.VP carries SAE approval. All parts meet automotive fuse standards for circuit protection applications.

Q: What holder type is required for these fuses?

A: All parts require a compatible miniature blade fuse holder. Physical dimensions (10.90mm x 3.80mm x 8.80mm) are identical across all variants, ensuring compatibility with the same holder assembly.

Q: Can these fuses be used in applications rated above 32 V?

A: No. The voltage rating of 32 V AC and 32 V DC is the maximum operating specification. Application of these fuses in circuits exceeding this rating will result in fuse failure and loss of circuit protection.
