0MAX080.X Automotive Fuse - Equivalent & Substitute Parts

Part Overview

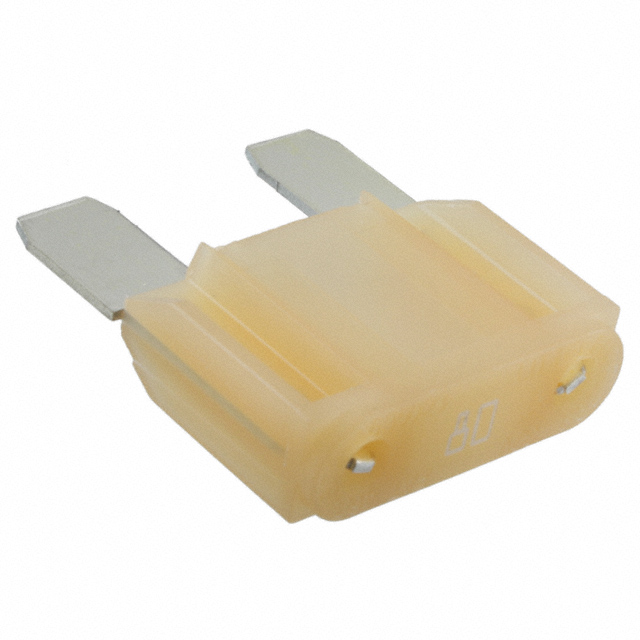

The 0MAX080.X is an 80 A automotive fuse manufactured by Littelfuse Inc., rated for 32 V AC and 32 V DC operation. This slow-blow fuse is designed for automotive applications requiring a MAXI blade-type holder and meets SAE approval standards. The part is currently active in production with 960 units in stock. Substitute parts are identified when identical electrical and mechanical parameters are maintained across the same product series and manufacturer.

Substiute Parts

0MAX080.X

Littelfuse Inc.In Stock: 9860MAX080.X Datasheet

Current PartRFQ

0MAX080.XPGLO

Littelfuse Inc.In Stock: 11250MAX080.XPGLO Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 0MAX080.X are identified based on strict equivalence of the following critical parameters:

• Current Rating: 80 A
• Voltage Rating: 32 V AC / 32 V DC
• Fuse Type: Automotive
• Response Time: Slow Blow
• Package / Case: Blade, Max
• Series: MAXI®
• Manufacturer: Littelfuse Inc.
• Approval Agency: SAE

The 0MAX080.XPGLO meets all these criteria and is classified as a parametric equivalent. Both parts share identical electrical specifications, mechanical dimensions, and compliance certifications, making them interchangeable within automotive fuse applications requiring these exact parameters.

Parameter Comparison

Engineering Selection Recommendations

Both the 0MAX080.X and 0MAX080.XPGLO are active production parts from Littelfuse Inc. with identical electrical and mechanical specifications. Selection between these parts may be based on inventory availability: 0MAX080.X has 960 units in stock, while 0MAX080.XPGLO has 1021 units in stock. Both parts maintain ROHS3 compliance and REACH unaffected status, meeting current regulatory requirements for automotive applications. The choice between these equivalents does not affect circuit performance or safety characteristics.

Frequently Asked Questions (FAQ)

Q: Are 0MAX080.X and 0MAX080.XPGLO fully interchangeable?

A: Yes. Both parts are parametric equivalents with identical current ratings (80 A), voltage ratings (32 V AC / 32 V DC), response time (slow blow), package type (MAXI blade), and mechanical dimensions. They are interchangeable in automotive fuse applications.

Q: What determines if a fuse can substitute for the 0MAX080.X?

A: A substitute must match all critical parameters: 80 A current rating, 32 V AC and 32 V DC voltage ratings, slow-blow response time, MAXI blade package, automotive fuse type, and SAE approval. Deviation in any of these parameters disqualifies a part as an equivalent.

Q: Do both parts require the same holder?

A: Yes. Both parts use the MAXI blade package and require a compatible MAXI fuse holder for installation. Mechanical dimensions are identical.

Q: Are there compliance differences between these parts?

A: No. Both parts are ROHS3 compliant, REACH unaffected, and carry SAE approval. Regulatory compliance is identical.

Q: Which part should I select based on availability?

A: Selection may be based on inventory levels. 0MAX080.XPGLO currently has higher stock (1021 units) compared to 0MAX080.X (960 units). Both are active production parts with no supply concerns indicated.
