HARTING 09682635813 D-Sub Plug 15-Position Right Angle Solder Connector
Part Overview
The HARTING 09682635813 is a 15-position D-Sub plug connector with right-angle solder termination, designed for through-hole PCB mounting. This connector features male pins, a 2-row configuration (Shell Size 2/DA-A layout), and is rated for 6.5A continuous current. The part is actively manufactured and maintains full ROHS3 compliance with UL94 V-0 flammability rating. Equivalent and substitute parts are identified based on matching electrical performance, mechanical compatibility, and termination method while accounting for variations in shell finish, contact material, and mounting features.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Connector Type | D-Sub Plug, Male Pins |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Shell Size / Layout | 2 (DA, A) |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Current Rating | 6.5A |
| Backset Spacing | 0.318" (8.08mm) |
| Operating Temperature Range | -55°C to 125°C |
| Shell Material / Finish | Steel |
| Contact Finish | Gold or Gold-Palladium |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| RoHS Status | ROHS3 Compliant |
Substitute Part Grouping Explanation
Substitution eligibility for the HARTING 09682635813 is determined by the following mandatory parameters:
- 15-position D-Sub plug configuration with male pins
- 2-row connector layout (Shell Size 2 / DA-A)
- Right-angle through-hole solder termination
- Backset spacing of 0.318" (8.08mm)
- Operating temperature range of -55°C to 125°C or wider
- Current rating of 5A or greater
- UL94 V-0 flammability rating
- Active product status
Substitute parts are grouped into two categories based on current rating capability:
Category A (6A+ Current Rating): TE Connectivity AMPLIMITE HD-20 series (5747236-2, 5747236-4, 5747236-6, 5747841-6, 747841-6) and TE Connectivity 5747841-6. These parts match the 6.5A rating of the main part and provide equivalent electrical performance.
Category B (5A Current Rating): NorComp Inc. 182 series (182-015-113R161, 182-015-113R171, 182-015-113R181, 182-015-113R531) and Amphenol ICC 6E17C-015P-AJ-121. These parts operate at 5A, which is lower than the main part but remain functionally compatible for applications not requiring the full 6.5A capacity.
Variations in shell finish (nickel-plated vs. steel), contact material (brass vs. copper alloy), and flange features (housing vs. mating side screwlock) do not prevent substitution when the core electrical and mechanical parameters align.
Parameter Comparison
| Parameter | HARTING 09682635813 | NorComp 182-015-113R161 | NorComp 182-015-113R181 | TE Connectivity 5747236-4 | TE Connectivity 5747841-6 | Amphenol ICC 6E17C-015P-AJ-121 |
|---|---|---|---|---|---|---|
| Connector Type | D-Sub Plug, Male Pins | D-Sub Plug, Male Pins | D-Sub Plug, Male Pins | D-Sub Plug, Male Pins | D-Sub Plug, Male Pins | D-Sub Plug, Male Pins |
| Positions / Rows | 15 / 2 | 15 / 2 | 15 / 2 | 15 / 2 | 15 / 2 | 15 / 2 |
| Shell Size / Layout | 2 (DA, A) | 2 (DA, A) | 2 (DA, A) | 2 (DA, A) | 2 (DA, A) | 2 (DA, A) |
| Mounting Type | Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder |
| Current Rating (Amps) | 6.5A | 5A | 5A | 6A | 6A | 5A |
| Backset Spacing | 0.318" (8.08mm) | 0.318" (8.08mm) | 0.318" (8.08mm) | 0.318" (8.08mm) | 0.318" (8.08mm) | 0.318" (8.08mm) |
| Operating Temperature | -55°C to 125°C | -55°C to 105°C | -55°C to 105°C | -55°C to 105°C | -55°C to 105°C | -55°C to 105°C |
| Shell Material / Finish | Steel | Steel, Nickel Plated | Steel, Nickel Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Nickel Plated |
| Contact Finish | Gold or Gold-Palladium | Gold | Gold | Gold | Gold | Gold |
| Flange Feature | Mating Side, Female Screwlock (4-40) | Housing/Shell (Unthreaded) | Mating Side, Female Screwlock (4-40) | Housing/Shell (4-40) | Mating Side, Female Screwlock (4-40) | Housing/Shell (4-40) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
Engineering Selection Recommendations
Primary Substitutes (Equivalent Current Rating):

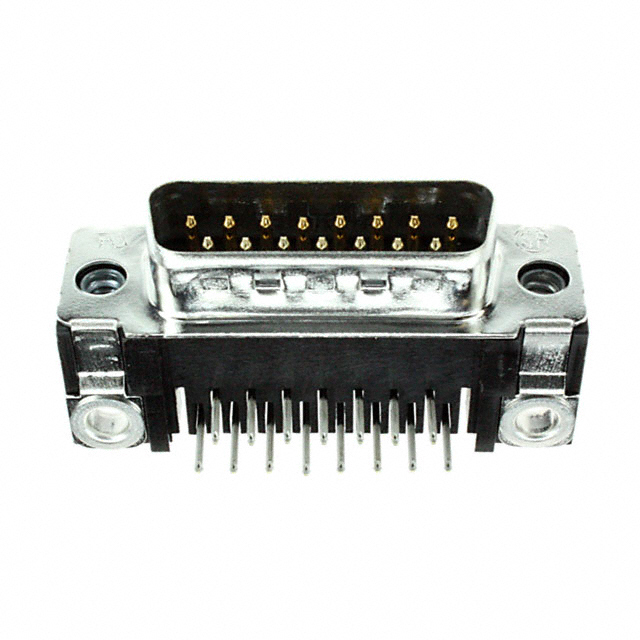

TE Connectivity AMPLIMITE HD-20 series connectors (5747236-4, 5747236-6, 5747841-6, 747841-6) provide direct electrical equivalence with 6A current rating, matching the performance envelope of the HARTING 09682635813. These parts maintain active product status and full RoHS compliance. The 5747236-4 and 5747841-6 variants feature mating-side female screwlock flanges identical to the main part, ensuring mechanical compatibility in applications requiring this specific flange configuration. All TE Connectivity options operate within the -55°C to 105°C temperature range, which covers the majority of industrial applications below 125°C.
Secondary Substitutes (Reduced Current Rating):
NorComp Inc. 182 series connectors (182-015-113R161, 182-015-113R181, 182-015-113R531) and Amphenol ICC 6E17C-015P-AJ-121 are suitable for applications where current demand does not exceed 5A. These parts are actively manufactured with ROHS3 compliance and UL94 V-0 certification. The NorComp 182-015-113R181 matches the mating-side female screwlock flange of the main part. The Amphenol ICC 6E17C-015P-AJ-121 includes shielding features and board lock functionality, providing additional EMI protection for sensitive signal applications.
Compliance Considerations:
All recommended substitutes maintain UL94 V-0 flammability certification and RoHS compliance status. The TE Connectivity 747841-6 is RoHS non-compliant and REACH-affected; this part is suitable only for applications where legacy component specifications are required. The TE Connectivity 5747236-2 and 5747236-6 carry RoHS compliance designation without ROHS3 specification; these are acceptable for general industrial use.
Frequently Asked Questions (FAQ)
Q: Can I use a 5A-rated substitute in place of the 6.5A HARTING connector?
A: Yes, provided your application current draw does not exceed 5A. The NorComp 182 series and Amphenol ICC 6E17C-015P-AJ-121 are electrically and mechanically compatible. Verify your circuit's maximum current requirement before selection.
Q: What is the difference between the NorComp 182-015-113R161 and 182-015-113R181?
A: Both are 15-position D-Sub plugs with identical electrical ratings. The primary difference is the flange feature: 182-015-113R161 has an unthreaded housing flange, while 182-015-113R181 has a mating-side female screwlock (4-40) flange matching the HARTING main part. Select based on your mating connector's flange type.
Q: Are there temperature limitations when substituting?
A: The HARTING 09682635813 operates to 125°C, while most substitutes are rated to 105°C. If your application requires operation above 105°C, the HARTING part or TE Connectivity AMPLIMITE HD-20 series (which also operate to 105°C) are the only options. Verify your actual operating temperature requirement.
Q: What is the difference between tin-plated and nickel-plated shell finishes?
A: Both finishes provide corrosion protection. Tin plating (TE Connectivity parts) offers lower contact resistance and better solderability. Nickel plating (NorComp and Amphenol ICC parts) provides superior corrosion resistance in harsh environments. Select based on your application's environmental exposure and soldering process requirements.
Q: Can I substitute a connector with a different flange feature?
A: Flange features determine how the connector mounts and mates. The HARTING part uses a mating-side female screwlock (4-40) flange. Substitutes with different flange types (housing-only or unthreaded) will not mate with the same receptacle. Match the flange feature to your existing mating connector.
Q: Is the Amphenol ICC 6E17C-015P-AJ-121 shielded version suitable for my application?
A: The 6E17C-015P-AJ-121 includes shielding and board lock features, making it suitable for EMI-sensitive applications. If your circuit does not require shielding, standard unshielded substitutes (NorComp or TE Connectivity) are appropriate and may offer cost advantages.
Q: What is the packaging difference between Bulk and Tray?
A: The HARTING 09682635813 ships in Bulk packaging (898 pcs available). Most substitutes ship in Tray packaging. Bulk packaging typically offers lower per-unit cost for high-volume orders, while Tray packaging provides better component protection during storage and handling. Verify packaging requirements for your procurement process.
