HARTING 09664546513 D-Sub 37-Position Receptacle Connector — Equivalent & Substitute Parts

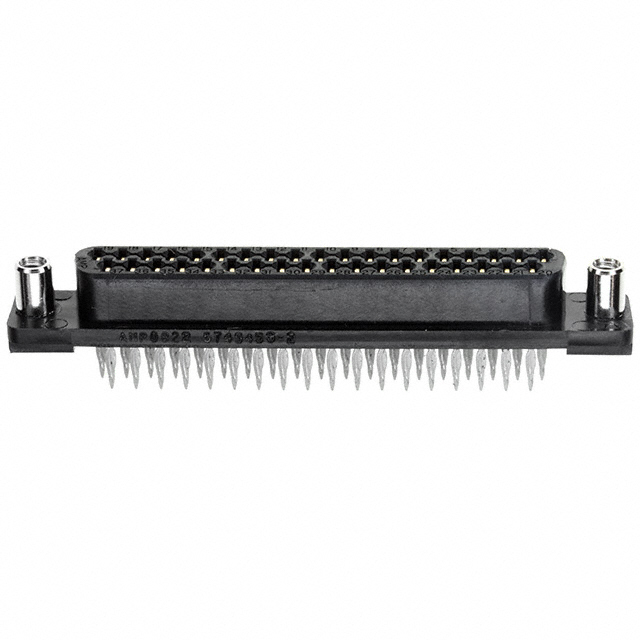

Part Overview
The HARTING 09664546513 is a 37-position D-Sub receptacle connector with female sockets, designed for through-hole mounting with press-fit termination. This connector features a vertical orientation, mating-side female screwlock (4-40), and is constructed with steel shell and copper alloy contacts. The part is classified as obsolete, making equivalent and substitute parts necessary for ongoing system maintenance and new design implementations.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Manufacturer Part Number | 09664546513 |
| Manufacturer | HARTING |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Shell Size, Connector Layout | 4 (DC, C) |
| Mounting Type | Through Hole |
| Termination | Press-Fit |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Shell Material, Finish | Steel |
| Contact Material | Copper Alloy |
| Current Rating | 6.5A |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| RoHS Status | ROHS3 Compliant |
| Product Status | Obsolete |
Substitute Part Grouping Explanation
Substitution for the HARTING 09664546513 is determined by strict alignment of the following critical parameters:
Mandatory Matching Parameters:
- Connector type: Receptacle, Female Sockets
- Number of positions: 37
- Number of rows: 2
- Shell size, connector layout: 4 (DC, C)
- Mounting type: Through Hole
- Termination: Press-Fit
- Flange feature: Mating Side, Female Screwlock (4-40)
- Material flammability rating: UL94 V-0
- Operating temperature range: -55°C ~ 125°C (minimum)
Allowable Variations:
- Shell material finish (steel with various plating options)
- Contact material (copper alloy, phosphor bronze, copper nickel alloy)
- Contact finish (gold plating with varying thicknesses)
- Dielectric material (LCP, polyamide, PBT, thermoplastic)
- Current rating (equal to or greater than 6.5A)
- RoHS compliance status (ROHS3 or RoHS Compliant acceptable)
- Product status (Active preferred for obsolete parts)
The following substitute parts meet these criteria and are available as direct replacements:
- TE Connectivity 5745589-2 (AMPLIMITE HD-20 series)
- TE Connectivity 5747713-2 (AMPLIMITE HD-20 series)
- TE Connectivity 5747714-2 (AMPLIMITE HD-20 series)
- TE Connectivity 5747715-2 (AMPLIMITE HD-20 series)
- TE Connectivity 747713-2 (AMPLIMITE HD-20 series)
- Amphenol ICC D37S90C6GX00LF (Delta D series)
- Amphenol ICC D37S90C6PA00LF (Delta D series)
- Amphenol ICC D37S90C6PV00LF (Delta D series)
- NorComp 191-037-223R001 (191 series, panel mount variant)
Parameter Comparison
| Parameter | HARTING 09664546513 | TE 5745589-2 | TE 5747713-2 | TE 5747714-2 | TE 5747715-2 | TE 747713-2 | Amphenol D37S90C6GX00LF | Amphenol D37S90C6PA00LF | Amphenol D37S90C6PV00LF | NorComp 191-037-223R001 |
|---|---|---|---|---|---|---|---|---|---|---|
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Number of Positions | 37 | 37 | 37 | 37 | 37 | 37 | 37 | 37 | 37 | 37 |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Shell Size, Connector Layout | 4 (DC, C) | 4 (DC, C) | 4 (DC, C) | 4 (DC, C) | 4 (DC, C) | 4 (DC, C) | 4 (DC, C) | 4 (DC, C) | 4 (DC, C) | 4 (DC, C) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Panel Mount |
| Termination | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit |
| Flange Feature | Mating Side, Female Screwlock (4-40) | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Housing/Shell (4-40) | Mating Side, Female Screwlock (4-40) | Housing/Shell (Unthreaded) | Housing/Shell (4-40) | Housing/Shell (Unthreaded) | Mating Side, Female Screwlock (4-40) | Housing/Shell (Unthreaded) |
| Shell Material, Finish | Steel | — | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin-Nickel Plated | Steel, Tin-Nickel Plated | Steel, Nickel Plated |
| Contact Material | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | — | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Current Rating (Amps) | 6.5A | — | — | — | — | — | 5A | 5A per Contact | 5A per Contact | 5A |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant | Not applicable | RoHS Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Product Status | Obsolete | Active | Active | Active | Active | Active | Active | Active | Active | Active |
Engineering Selection Recommendations
Primary Substitutes (Highest Compatibility):
TE Connectivity 5747715-2 and Amphenol ICC D37S90C6PV00LF are the closest functional equivalents to the HARTING 09664546513. Both maintain the mating-side female screwlock (4-40) flange feature, through-hole mounting, and press-fit termination. Both are active products with current RoHS compliance and UL94 V-0 flammability rating. The Amphenol part extends the operating temperature range to 125°C, matching the original specification.
Secondary Substitutes (Acceptable with Design Review):
TE Connectivity 5747713-2, 5747714-2, and 747713-2 provide functional equivalence with variations in flange features. These parts are suitable where the specific flange configuration can be accommodated in the PCB layout. All maintain the 37-position, 2-row configuration and press-fit termination.
TE Connectivity 5745589-2 is acceptable for applications where the unthreaded housing flange is compatible with the mechanical design. This part is available in higher inventory quantities.
Alternative for Panel-Mount Applications:
NorComp 191-037-223R001 is a panel-mount variant suitable only for applications requiring panel-level integration rather than through-hole PCB mounting. This part is not a direct replacement for through-hole designs.
Compliance Considerations:
All substitute parts meet or exceed the original ROHS3 compliance and UL94 V-0 flammability requirements. TE Connectivity parts 5745589-2 and 5747715-2 maintain ROHS3 compliance. Amphenol ICC parts are RoHS Compliant. NorComp 191-037-223R001 is ROHS3 Compliant.
Temperature Range Considerations:
The original HARTING part specifies -55°C ~ 125°C. TE Connectivity AMPLIMITE HD-20 series parts (5745589-2, 5747713-2, 5747714-2, 5747715-2, 747713-2) operate to -55°C ~ 105°C, representing a 20°C reduction in maximum temperature. Amphenol ICC Delta D series parts (D37S90C6GX00LF, D37S90C6PA00LF, D37S90C6PV00LF) and NorComp 191-037-223R001 maintain the full -55°C ~ 125°C range.
Frequently Asked Questions (FAQ)
Q: Can TE Connectivity 5745589-2 be used as a direct replacement for HARTING 09664546513?
A: TE Connectivity 5745589-2 meets the core functional requirements: 37-position receptacle, female sockets, 2-row configuration, shell size 4 (DC, C), through-hole mounting, and press-fit termination. However, it features an unthreaded housing flange instead of the mating-side female screwlock (4-40) of the original part. This difference requires PCB layout verification. Additionally, the operating temperature range is -55°C ~ 105°C versus the original -55°C ~ 125°C. Selection depends on application temperature requirements and mechanical interface compatibility.
Q: What is the difference between TE Connectivity 5747714-2 and 5747715-2?
A: Both parts are AMPLIMITE HD-20 series 37-position D-Sub receptacles with identical electrical and thermal specifications. The primary difference is the flange feature: 5747714-2 has a housing/shell (4-40) flange, while 5747715-2 has a mating-side female screwlock (4-40) flange. The 5747715-2 matches the original HARTING flange configuration more closely.
Q: Why does Amphenol ICC D37S90C6PV00LF have a higher current rating specification than the original part?
A: The Amphenol part specifies 5A per contact, while the HARTING part specifies 6.5A total. These are different rating methodologies. The Amphenol specification is per-contact current capacity. For a 37-position connector, the total current capacity depends on the number of simultaneously active contacts. Consult application requirements to determine if this specification is adequate.
Q: Is NorComp 191-037-223R001 suitable for through-hole PCB mounting?
A: No. NorComp 191-037-223R001 is designed for panel-mount applications, not through-hole PCB mounting. The original HARTING 09664546513 is through-hole mounted. NorComp is not a direct replacement for through-hole designs.
Q: What packaging options are available for substitute parts?
A: TE Connectivity 5745589-2 is supplied in trays. TE Connectivity 5747713-2, 5747714-2, 5747715-2, and 747713-2 are supplied in bulk. Amphenol ICC D37S90C6GX00LF, D37S90C6PA00LF, and D37S90C6PV00LF are supplied in trays. NorComp 191-037-223R001 is supplied in trays. Packaging selection may affect procurement lead times and inventory management.
Q: Are all substitute parts RoHS compliant?
A: Yes. All listed substitute parts are either ROHS3 Compliant or RoHS Compliant. The original HARTING part is ROHS3 Compliant. TE Connectivity 5745589-2 and NorComp 191-037-223R001 maintain ROHS3 compliance. Other TE Connectivity and Amphenol ICC parts are RoHS Compliant, which is acceptable for most applications.
Q: Which substitute part has the best inventory availability?
A: TE Connectivity 5747713-2 has the highest inventory at 1,878 pieces. TE Connectivity 5745589-2 has 1,180 pieces, and 5747714-2 has 1,365 pieces. All listed substitutes have inventory quantities exceeding 600 pieces, indicating good availability for procurement.
