HARTING 09663626813 D-Sub Plug 25 Position Right Angle Solder Connector

Part Overview

The HARTING 09663626813 is a 25-position D-Sub plug connector with right-angle through-hole solder termination. This connector features a male pin configuration with a DB/B shell size (Shell Size 3) and is designed for signal applications. The part is currently active in production with 729 units in stock.

Finding equivalent and substitute parts for the HARTING 09663626813 becomes necessary when managing supply chain continuity, accommodating design revisions, or addressing component availability constraints. Substitute connectors must maintain compatibility across core electrical and mechanical parameters including connector type, position count, shell size, mounting orientation, and termination method.

Substiute Parts

09663626813

HARTINGIn Stock: 78409663626813 Datasheet

Current PartRFQ

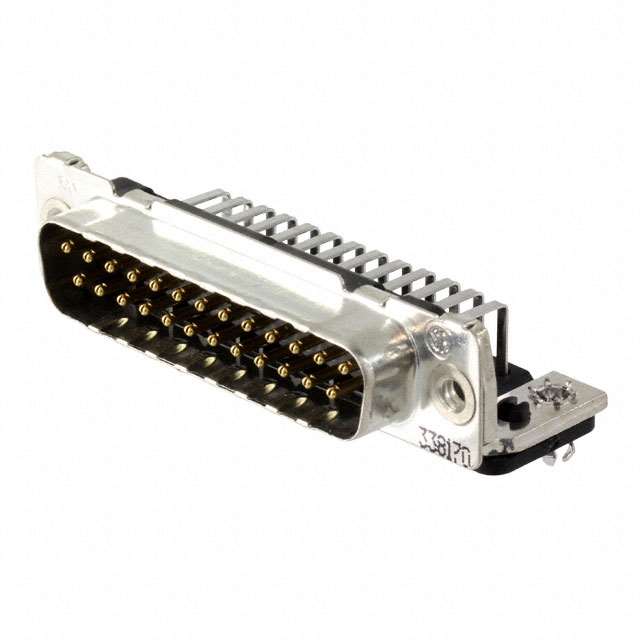

1-338170-2

TE Connectivity AMP ConnectorsIn Stock: 22971-338170-2 Datasheet

MFR RecommendedRFQ

5745436-3

TE Connectivity AMP ConnectorsIn Stock: 9575745436-3 Datasheet

MFR RecommendedRFQ

DBM25P500

Amphenol ICC (FCI)In Stock: 885DBM25P500 Datasheet

MFR RecommendedRFQ

DBM25S300

Amphenol ICC (FCI)In Stock: 1095DBM25S300 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the HARTING 09663626813 is determined by strict alignment with the following core parameters:

Primary Compatibility Criteria:

• Connector type must be plug with male pins
• Position count must be 25
• Shell size must be 3 (DB, B)
• Mounting type must be through-hole, right-angle
• Termination must be solder

Secondary Compatibility Considerations:

• Current rating of substitute must meet or exceed 7.5A
• Operating temperature range must encompass -55°C to 125°C
• Material flammability rating must be UL94 V-0

Substitute Parts Identified:

Group 1 - Full Electrical and Mechanical Compatibility:

• TE Connectivity 1-338170-2 (AMPLIMITE HD-20 series)
• Amphenol ICC DBM25P500 (DM HE501 series)

Group 2 - Mechanical Compatibility with Electrical Derating:

• TE Connectivity 5745436-3 (AMPLIMITE HDP-20 series)

Group 3 - Connector Type Mismatch (Not Recommended):

• Amphenol ICC DBM25S300 (receptacle configuration, not plug)

Parameter Comparison

Engineering Selection Recommendations

Recommended Primary Substitutes:

TE Connectivity 1-338170-2 is the preferred substitute for the HARTING 09663626813. This part maintains full mechanical compatibility with identical mounting configuration and shell size. Both parts are ROHS3 compliant and carry active product status. The primary consideration is the current rating differential: the TE part is rated at 6A versus the HARTING part's 7.5A. This substitution is appropriate for applications where the circuit design operates within 6A limits. The TE Connectivity part is available in higher inventory (2254 units) and packaged in trays for production environments.

Amphenol ICC DBM25P500 provides an alternative with full electrical compatibility, matching the 7.5A current rating and extended operating temperature range (-55°C to 125°C) of the original part. However, this part carries RoHS non-compliant status, which may restrict its use in regulated applications or markets with RoHS requirements. The DBM25P500 features a higher voltage rating (300V) and yellow cadmium plating, suitable for applications requiring enhanced corrosion resistance.

TE Connectivity 5745436-3 offers mechanical compatibility but with reduced current rating (6A) and lower maximum operating temperature (105°C). This part is suitable only for applications where these electrical deratings are acceptable. The AMPLIMITE HDP-20 series features standard screws on the mating side rather than screwlock, which may affect mating force characteristics.

Not Recommended:

Amphenol ICC DBM25S300 is a receptacle connector with female sockets, not a plug with male pins. This part is mechanically and electrically incompatible with the HARTING 09663626813 and cannot serve as a direct substitute.

Frequently Asked Questions (FAQ)

Q: Can TE Connectivity 1-338170-2 be used as a direct replacement for HARTING 09663626813?

A: TE Connectivity 1-338170-2 is mechanically compatible and maintains the same connector type, position count, shell size, and mounting configuration. The primary difference is the current rating: 6A versus 7.5A. This substitution is valid for applications designed to operate within 6A limits. Both parts are ROHS3 compliant and UL94 V-0 rated.

Q: What is the significance of the current rating difference between the HARTING part (7.5A) and TE Connectivity substitutes (6A)?

A: Current rating indicates the maximum continuous current each contact can safely carry. If your circuit design requires 7.5A operation, the TE Connectivity parts rated at 6A would not be suitable. The Amphenol ICC DBM25P500 maintains the 7.5A rating but is RoHS non-compliant.

Q: Why is Amphenol ICC DBM25S300 listed but not recommended?

A: DBM25S300 is a receptacle connector with female sockets, while the HARTING 09663626813 is a plug connector with male pins. These are mating halves, not substitutes. Using a receptacle where a plug is required will result in incompatible mating interfaces.

Q: Are there temperature operating range limitations with substitute parts?

A: TE Connectivity parts (1-338170-2 and 5745436-3) are rated to 105°C maximum, while the HARTING part and Amphenol ICC DBM25P500 are rated to 125°C. If your application requires operation above 105°C, TE Connectivity substitutes are not suitable.

Q: What packaging differences exist between the main part and substitutes?

A: The HARTING 09663626813 is supplied in bulk packaging. TE Connectivity and Amphenol ICC substitutes are supplied in tray packaging, which is standard for production environments and may require adjustment to receiving and handling procedures.

Q: Does RoHS compliance status affect substitution decisions?

A: RoHS3 compliance is mandatory for many regulated markets and applications. The HARTING 09663626813 and TE Connectivity substitutes are ROHS3 compliant. Amphenol ICC parts (DBM25P500 and DBM25S300) are RoHS non-compliant and should not be used in applications or markets requiring RoHS compliance.
