HARTING 09663536613 D-Sub 25 Position Receptacle Equivalent & Substitute Parts
Part Overview
The HARTING 09663536613 is a 25 position D-Sub receptacle connector with right-angle solder termination, female sockets, and through-hole mounting. This connector is classified as Active product status and is fully RoHS3 compliant. The part features a steel shell with board lock capability and operates across -55°C to 125°C. Equivalent and substitute parts are necessary when addressing supply chain constraints, packaging requirements, or specific flange configuration needs while maintaining electrical and mechanical compatibility.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Connector Type | D-Sub Receptacle, Female Sockets |
| Number of Positions | 25 |
| Shell Size | 3 (DB, B) |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Current Rating | 6.5A |
| Operating Temperature | -55°C to 125°C |
| Shell Material | Steel |
| Dielectric Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Contact Material | Copper Alloy |
| RoHS Status | ROHS3 Compliant |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
Substitute Part Grouping Explanation
Substitution eligibility is determined by strict alignment with the following core parameters: 25 position count, D-Sub shell size 3 (DB, B), receptacle configuration with female sockets, right-angle through-hole mounting, and solder termination. All substitute parts listed maintain these baseline electrical and mechanical specifications.
Substitute parts are grouped into two categories based on flange configuration compatibility:
Category A: Mating Side Female Screwlock (4-40) Flange — Direct functional equivalents with identical flange mounting interface. Parts: D25S13A4GV00LF, D25S13A4PA00LF (housing/shell unthreaded variant).
Category B: Housing/Shell Flange (4-40 or M3) — Compatible substitutes with alternative flange mounting. Parts: 1-106507-2, 3-106507-2, D25S13A4GL00LF, D25S13A4GX00LF.
Category C: Mating Side Standard Screws Flange — Compatible substitutes with standard screw mounting. Parts: 5745440-1, 5745440-4, 745440-1.
All substitute parts maintain 25 positions, shell size 3, receptacle female socket configuration, right-angle through-hole mounting, and solder termination. Variations in contact finish, backset spacing, voltage rating, and dielectric material are noted in the parameter comparison table.
Parameter Comparison
| Part Number | Manufacturer | Positions | Shell Size | Mounting | Termination | Current Rating | Operating Temp | Shell Material | Contact Finish | Voltage Rating | RoHS Status | Product Status |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 09663536613 | HARTING | 25 | 3 (DB, B) | Through Hole, Right Angle | Solder | 6.5A | -55°C to 125°C | Steel | Not Specified | Not Specified | ROHS3 Compliant | Active |
| 1-106507-2 | TE Connectivity AMP | 25 | 3 (DB, B) | Panel Mount, Through Hole, Right Angle | Solder | 6A | -55°C to 105°C | Steel, Tin Plated | Gold | 125V | ROHS3 Compliant | Active |
| 3-106507-2 | TE Connectivity AMP | 25 | 3 (DB, B) | Panel Mount, Through Hole, Right Angle | Solder | 6A | -55°C to 105°C | Steel, Tin Plated | Gold | 125V | ROHS3 Compliant | Active |
| 5745440-1 | TE Connectivity AMP | 25 | 3 (DB, B) | Through Hole, Right Angle | Solder | 6A | -55°C to 105°C | Steel, Tin Plated | Gold | 125V | RoHS Compliant | Active |
| 5745440-4 | TE Connectivity AMP | 25 | 3 (DB, B) | Through Hole, Right Angle | Solder | 6A | -55°C to 105°C | Steel, Tin Plated | Gold | 125V | RoHS Compliant | Active |
| 745440-1 | TE Connectivity AMP | 25 | 3 (DB, B) | Through Hole, Right Angle | Solder | 6A | -55°C to 105°C | Steel, Tin Plated | Gold | 125V | RoHS non-compliant | Obsolete |
| D25S13A4GL00LF | Amphenol ICC (FCI) | 25 | 3 (DB, B) | Through Hole, Right Angle | Solder | 5A per Contact | -55°C to 125°C | Steel, Tin-Nickel Plated | Gold | 300V | ROHS3 Compliant | Active |
| D25S13A4GV00LF | Amphenol ICC (FCI) | 25 | 3 (DB, B) | Through Hole, Right Angle | Solder | 5A per Contact | -55°C to 125°C | Steel, Tin-Nickel Plated | Gold | 300V | RoHS Compliant | Active |
| D25S13A4GX00LF | Amphenol ICC (FCI) | 25 | 3 (DB, B) | Through Hole, Right Angle | Solder | 5A per Contact | -55°C to 125°C | Steel, Tin-Nickel Plated | Gold | 300V | RoHS Compliant | Active |
| D25S13A4PA00LF | Amphenol ICC (FCI) | 25 | 3 (DB, B) | Through Hole, Right Angle | Solder | 5A per Contact | -55°C to 125°C | Steel, Tin-Nickel Plated | Gold | 300V | ROHS3 Compliant | Active |
Engineering Selection Recommendations
Primary Selection — Active, RoHS3 Compliant Parts:
D25S13A4GX00LF and D25S13A4PA00LF (Amphenol ICC) are preferred substitutes. Both maintain Active product status, ROHS3 compliance, and extended operating temperature range (-55°C to 125°C) matching the original part. D25S13A4GX00LF offers the highest inventory availability (10,200 units) with housing/shell (4-40) flange configuration. D25S13A4PA00LF provides housing/shell unthreaded flange with 1,250 units in stock.
Secondary Selection — Active, RoHS Compliant Parts:
D25S13A4GV00LF (Amphenol ICC) maintains Active status and RoHS compliance with mating side female screwlock (4-40) flange, directly matching the original flange configuration. Operating temperature range extends to 125°C.
TE Connectivity Alternatives:

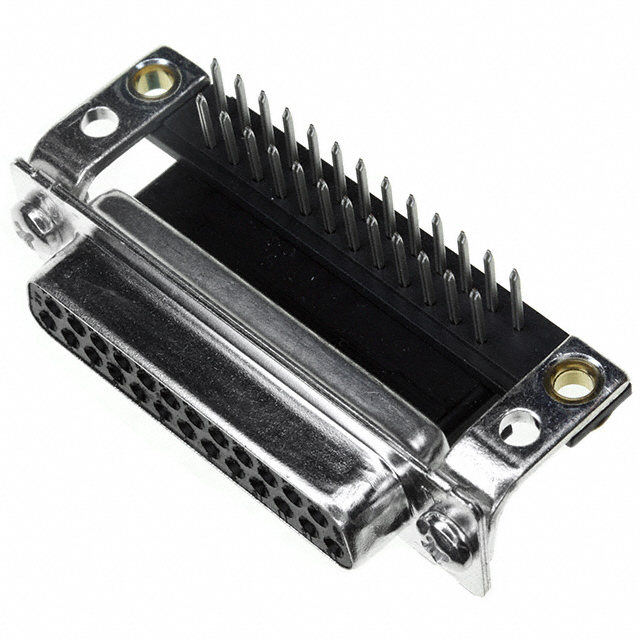

1-106507-2 and 3-106507-2 (TE Connectivity AMPLIMITE HD-20 series) are Active, ROHS3 compliant alternatives with 6A current rating. Both support panel mount and through-hole right-angle mounting. Operating temperature is limited to 105°C. 5745440-1 and 5745440-4 (TE Connectivity AMPLIMITE HDP-20 series) are Active, RoHS compliant with 6A current rating and extended backset spacing (0.454" vs. 0.409").
Avoid:
745440-1 (TE Connectivity) is Obsolete and RoHS non-compliant. This part should not be selected for new designs or long-term supply assurance.
Frequently Asked Questions (FAQ)
Q: Can D25S13A4GX00LF directly replace HARTING 09663536613?
A: Yes. Both are 25 position D-Sub receptacles with right-angle through-hole solder termination, shell size 3, and female sockets. D25S13A4GX00LF features housing/shell (4-40) flange versus the original's mating side female screwlock (4-40). Electrical and mechanical compatibility is maintained. Flange mounting interface differs; verify PCB or panel mounting hole pattern compatibility.
Q: What is the difference between D25S13A4GX00LF and D25S13A4PA00LF?
A: Both are Amphenol ICC Delta D series with identical electrical specifications. D25S13A4GX00LF has housing/shell (4-40) threaded flange. D25S13A4PA00LF has housing/shell unthreaded flange. Selection depends on mounting interface requirements. D25S13A4GX00LF has significantly higher inventory (10,200 vs. 1,250 units).
Q: Why is the operating temperature range different between HARTING and Amphenol parts?
A: HARTING 09663536613 specifies -55°C to 125°C. Amphenol ICC D25S13 series also specifies -55°C to 125°C. TE Connectivity AMPLIMITE series specifies -55°C to 105°C. Temperature range is a material and design specification. For applications requiring operation above 105°C, Amphenol ICC or HARTING parts are required.

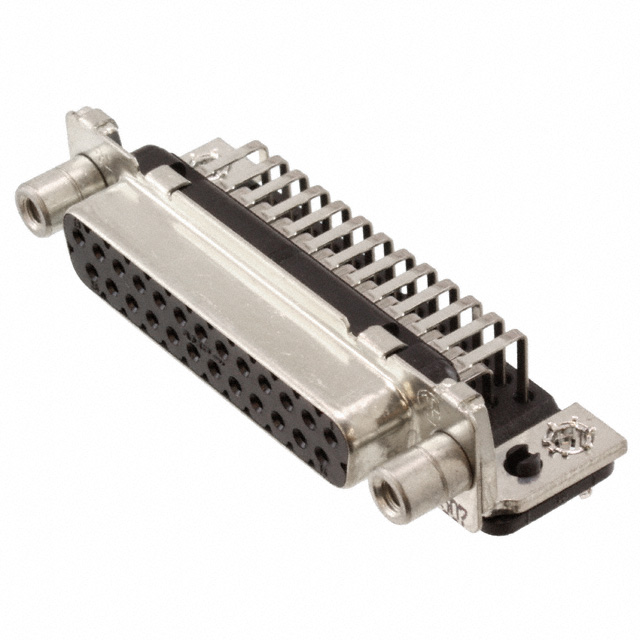

Q: Are TE Connectivity 1-106507-2 and 3-106507-2 interchangeable?
A: Both are TE Connectivity AMPLIMITE HD-20 series with identical electrical specifications. 1-106507-2 is packaged in Tray. 3-106507-2 is packaged in Bulk. Flange configuration differs: 1-106507-2 has housing/shell (4-40) flange; 3-106507-2 has mating side female screwlock (4-40) flange. Electrical compatibility is maintained; mounting interface differs.
Q: Should 745440-1 be used as a substitute?
A: No. 745440-1 is classified as Obsolete and RoHS non-compliant. For new designs and applications requiring long-term supply assurance, select from Active, RoHS3 or RoHS compliant alternatives listed in this reference.
Q: What is the significance of backset spacing differences?
A: Backset spacing is the distance from the mating face to the solder tail. HARTING 09663536613 specifies 0.409" (10.40mm). Amphenol ICC D25S13 series specifies 0.409" (10.40mm). TE Connectivity AMPLIMITE HDP-20 series (5745440-1, 5745440-4, 745440-1) specifies 0.454" (11.53mm). Backset spacing affects PCB layout and component clearance. Verify PCB design compatibility before substitution.
Q: What packaging options are available?
A: HARTING 09663536613 is supplied in Bulk. Amphenol ICC D25S13 series is supplied in Tray. TE Connectivity 1-106507-2 is supplied in Tray; 3-106507-2 is supplied in Bulk. 5745440-1 and 5745440-4 are supplied in Tray. Packaging affects handling, storage, and procurement logistics but does not impact electrical or mechanical compatibility.
