HARTING 09662556513 D-Sub Receptacle 15-Position Equivalent & Substitute Parts

Part Overview

The HARTING 09662556513 is a 15-position D-Sub receptacle connector with female sockets, designed for through-hole vertical mounting and solder termination. This connector features a 2-row (DA, A) shell size configuration with mating-side female screwlock (4-40) and board lock functionality. The part is actively produced and RoHS3 compliant, with gold-plated copper alloy contacts rated for 6.5A at operating temperatures from -55°C to 125°C.

Equivalent and substitute parts are identified based on matching core electrical and mechanical parameters: 15-position configuration, 2-row layout, D-Sub receptacle type with female sockets, through-hole or panel-mount installation, solder termination, and UL94 V-0 flammability rating. Substitutes may vary in mounting style, contact material, shell finish, and operating temperature range while maintaining functional compatibility within specified electrical limits.

Key Parameters

Parameter	HARTING 09662556513
Connector Type	D-Sub Receptacle, Female Sockets
Number of Positions	15
Number of Rows	2
Shell Size, Connector Layout	2 (DA, A)
Mounting Type	Through Hole
Termination	Solder
Flange Feature	Mating Side, Female Screwlock (4-40)
Current Rating	6.5A
Operating Temperature	-55°C to 125°C
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS3 Compliant
Contact Finish	Gold
Shell Material	Steel

Substitute Part Grouping Explanation

Substitution eligibility is determined by the following mandatory parameters:

Connector Configuration: 15-position, 2-row D-Sub receptacle with female sockets
Shell Size: 2 (DA, A) layout
Termination Method: Solder
Flammability Rating: UL94 V-0
Contact Type: Signal
Contact Finish: Gold plating

Substitute parts are grouped into two categories:

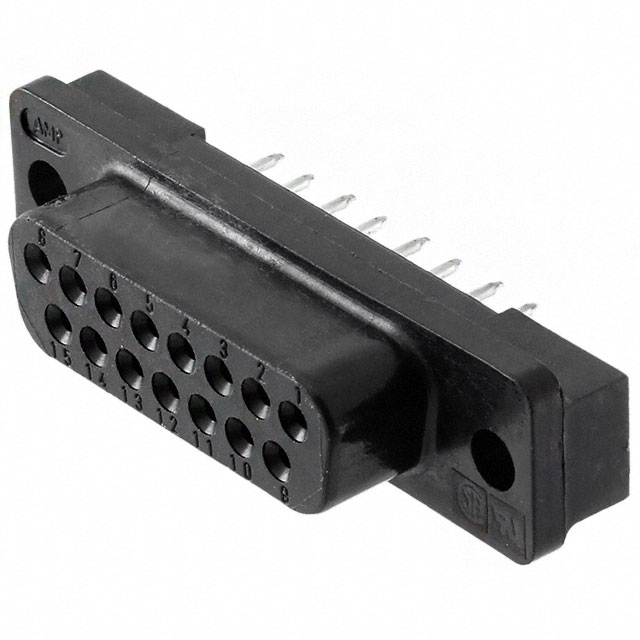

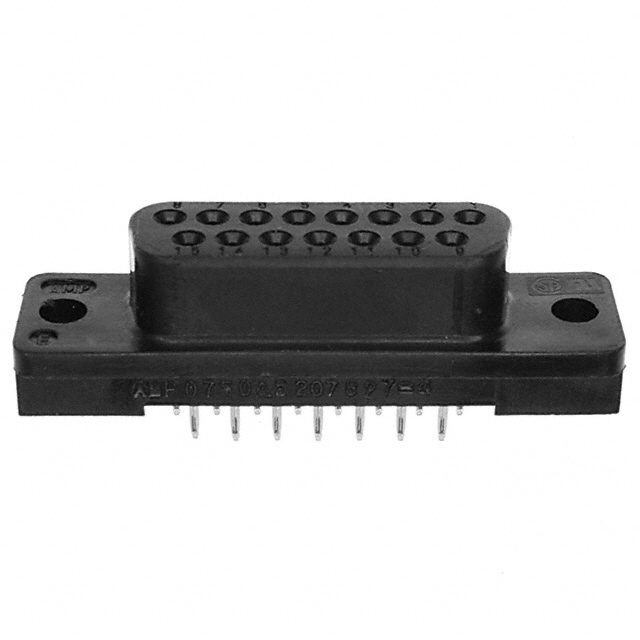

Category A – Through-Hole Vertical Mount (Direct Functional Equivalents) Parts 1-747299-4, 5-338314-2, 5207827-3, 5207827-4, and 5745057-3 maintain through-hole vertical mounting identical to the main part. These substitutes differ in shell finish (tin-plated vs. steel), contact material (phosphor bronze vs. copper alloy), dielectric composition, and operating temperature ceiling (105°C vs. 125°C). Current ratings range from 6A to 6.5A, all within acceptable limits for equivalent signal applications.

Category B – Panel Mount Configuration (Functional Substitutes with Installation Differences) Parts 172-E15-213R001, 172-E15-213R011, 172-E15-213R021, 172-E15-213R031, and 172-E15-213R911 feature panel-mount through-hole installation with varying flange configurations (housing/shell unthreaded, board side 4-40, or mating side 4-40). These parts use brass contacts with machined form, nickel-plated steel shells, and operate to -50°C to 100°C. Current rating is 5A. Panel-mount variants require different PCB layout and mechanical mounting considerations compared to vertical-mount originals.

Parameter Comparison

Parameter	HARTING 09662556513	1-747299-4	5-338314-2	5207827-3	5207827-4	5745057-3	172-E15-213R001	172-E15-213R011	172-E15-213R021	172-E15-213R031	172-E15-213R911
Positions	15	15	15	15	15	15	15	15	15	15	15
Rows	2	2	2	2	2	2	2	2	2	2	2
Shell Size	2 (DA, A)	2 (DA, A)	2 (DA, A)	2 (DA, A)	2 (DA, A)	2 (DA, A)	2 (DA, A)	2 (DA, A)	2 (DA, A)	2 (DA, A)	2 (DA, A)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Panel Mount, Through Hole	Panel Mount, Through Hole	Panel Mount, Through Hole	Panel Mount, Through Hole	Panel Mount, Through Hole
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Current Rating (Amps)	6.5A	6A	6A	6A	6A	6A	5A	5A	5A	5A	5A
Operating Temperature	-55°C to 125°C	-55°C to 105°C	-55°C to 105°C	-55°C to 105°C	-55°C to 105°C	-55°C to 105°C	-50°C to 100°C	-50°C to 100°C	-50°C to 100°C	-50°C to 100°C	-50°C to 100°C
Contact Finish	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Shell Material, Finish	Steel	Steel, Tin Plated	Steel, Tin Plated	Not Specified	Not Specified	Not Specified	Steel, Nickel Plated	Steel, Nickel Plated	Steel, Nickel Plated	Steel, Nickel Plated	Steel, Nickel Plated
Contact Material	Copper Alloy	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Brass	Brass	Brass	Brass	Brass
Contact Form	Stamped	Not Specified	Not Specified	Not Specified	Not Specified	Not Specified	Machined	Machined	Machined	Machined	Machined
RoHS Status	RoHS3 Compliant	RoHS Non-Compliant	RoHS3 Compliant	RoHS3 Compliant	RoHS Compliant	RoHS Compliant	RoHS3 Compliant	RoHS3 Compliant	RoHS3 Compliant	RoHS3 Compliant	RoHS3 Compliant

Engineering Selection Recommendations

For Direct Through-Hole Vertical Mount Replacement (Preferred Category)

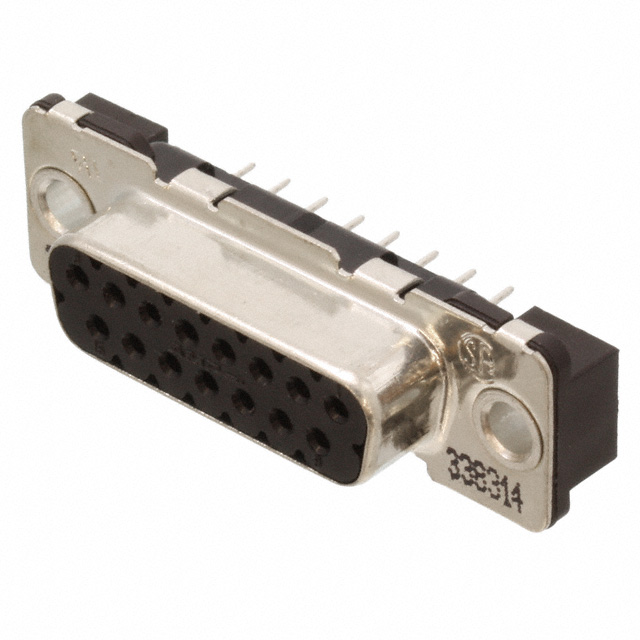

Parts 5-338314-2, 5207827-4, and 5745057-3 are recommended as primary substitutes for the HARTING 09662556513 when maintaining identical mounting orientation and PCB layout. These TE Connectivity AMPLIMITE series connectors preserve through-hole vertical installation and achieve RoHS compliance (5-338314-2 and 5745057-3 are RoHS3 compliant; 5207827-4 is RoHS compliant). Current ratings of 6A accommodate applications rated to 6.5A with standard design margins. Operating temperature range of -55°C to 105°C covers most industrial applications, though designs requiring operation above 105°C must retain the original HARTING part.

Part 1-747299-4 (TE Connectivity AMPLIMITE HD-20) is not recommended due to RoHS non-compliance status, which may conflict with procurement requirements or end-product certifications.

For Panel-Mount Configuration (Alternative Installation)

The NorComp 172-E series (172-E15-213R001, 172-E15-213R011, 172-E15-213R021, 172-E15-213R031, 172-E15-213R911) provides panel-mount alternatives with RoHS3 compliance and REACH unaffected status. These parts are suitable only for designs where panel-mount installation is acceptable and PCB layout can accommodate the different flange mounting geometry. Current rating of 5A is lower than the original 6.5A specification and must be evaluated against circuit requirements. Operating temperature ceiling of 100°C is more restrictive than the original 125°C rating.

Compliance Considerations

All recommended substitutes maintain UL94 V-0 flammability certification and signal-contact configuration. The HARTING original part and most substitutes (except 1-747299-4) meet RoHS3 compliance. For applications requiring REACH unaffected status, NorComp 172-E series parts are preferred; TE Connectivity parts show REACH affected or vendor undefined status.

Frequently Asked Questions (FAQ)

Q: Can I use a panel-mount substitute in place of a through-hole vertical-mount connector?

A: No, not without significant PCB redesign. Panel-mount connectors (172-E series) require different mounting holes and flange positioning compared to vertical-mount designs. The mechanical interface is fundamentally different and cannot be accommodated by existing through-hole PCB layouts designed for vertical mounting.

Q: What is the impact of the 5A current rating on NorComp substitutes versus the 6.5A original?

A: The 5A rating on NorComp 172-E series parts represents a 23% reduction in current capacity. Applications operating at or near 6.5A must be re-evaluated. If your circuit draws 5A or less, NorComp parts are electrically suitable. If your design requires 6.5A capability, use TE Connectivity AMPLIMITE substitutes (6A rating) or retain the original HARTING part.

Q: Why do some substitutes have lower operating temperature limits?

A: Operating temperature range is determined by dielectric material composition and contact design. NorComp parts use polyamide (PA6T) dielectric rated to 100°C; TE Connectivity AMPLIMITE parts use polyester dielectric rated to 105°C; the HARTING original uses glass-filled PCT rated to 125°C. If your application requires operation above 105°C, the original HARTING part is mandatory.

Q: Are there differences in contact reliability between stamped and machined contact forms?

A: Contact form (stamped vs. machined) affects manufacturing precision and mating force characteristics. Stamped contacts (HARTING original) are cost-effective for high-volume production. Machined contacts (NorComp 172-E series) provide tighter tolerances and consistent mating force. Both forms meet UL94 V-0 and signal-contact specifications. Selection depends on application requirements for contact retention force and mating cycle durability.

Q: Which substitute offers the best RoHS and REACH compliance profile?

A: NorComp 172-E series parts (172-E15-213R001, 172-E15-213R011, 172-E15-213R021, 172-E15-213R031, 172-E15-213R911) are RoHS3 compliant and REACH unaffected, providing the cleanest compliance status. TE Connectivity 5-338314-2 and 5745057-3 are RoHS3 compliant but show REACH affected status. For applications with strict REACH requirements, NorComp parts are preferred if panel-mount installation is acceptable.

Q: Can I mix and match different substitute parts in the same assembly?

A: Not recommended. While all substitutes share the same 15-position, 2-row D-Sub configuration, they differ in mounting style (through-hole vs. panel-mount), current rating (5A vs. 6A), and operating temperature range. Mixing through-hole and panel-mount variants in a single design creates assembly complexity and potential reliability issues. Standardize on a single substitute part number per design.

Q: What packaging options are available for these substitutes?

A: HARTING 09662556513 is supplied in bulk packaging. TE Connectivity substitutes are available in bulk (5-338314-2, 5207827-4) or tube (5207827-3, 5745057-3) packaging. NorComp 172-E series parts are supplied in tray packaging. Verify packaging compatibility with your procurement and assembly processes before finalizing part selection.
