HARTING 09661626813 D-Sub Connector 9-Position Right Angle Solder Plug
Part Overview
The HARTING 09661626813 is a 9-position D-Sub plug connector with right-angle through-hole solder termination. This connector is actively manufactured and widely used in industrial and commercial applications requiring reliable signal transmission in compact form factors. The connector features a steel shell with board lock and grounding indents, rated for 7.5A continuous current and operating temperatures from -55°C to 125°C.
Equivalent and substitute parts are necessary when the primary part becomes unavailable, when design requirements shift toward different flange configurations, or when alternative manufacturers' components meet the same electrical and mechanical specifications for cost optimization or supply chain flexibility.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Connector Type | D-Sub Plug, Male Pins |
| Number of Positions | 9 |
| Shell Size / Layout | 1 (DE, E) |
| Mounting Type | Through Hole, Right Angle |
| Termination Method | Solder |
| Current Rating | 7.5A |
| Operating Temperature Range | -55°C to 125°C |
| Shell Material | Steel |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Material Flammability Rating | UL94 V-0 |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
Substitute Part Grouping Explanation
Substitution eligibility for the HARTING 09661626813 is determined by strict alignment of the following core parameters:
Critical Parameters (Must Match Exactly):
- Connector type: D-Sub plug with male pins
- Number of positions: 9
- Shell size and layout: 1 (DE, E)
- Mounting type: Through hole, right angle
- Termination method: Solder
- Material flammability rating: UL94 V-0
- Moisture sensitivity level: 1 (Unlimited)
Allowable Variation Parameters:
- Current rating: Substitute parts may have equal or higher current capacity
- Operating temperature range: Substitute parts must support the full -55°C to 125°C range or a subset that includes critical operating points
- Shell finish: Steel with various plating options (tin, nickel) are acceptable
- Contact finish: Gold or equivalent noble metal finishes are acceptable
- Flange feature: Variations in screwlock configuration, housing shell design, or mounting bracket presence are acceptable provided mechanical compatibility is maintained
- Dielectric material: PBT, polyester, polyamide, or thermoplastic compositions are acceptable
- Contact material: Copper alloy, phosphor bronze, or brass are acceptable
Substitute parts are grouped by manufacturer and series compatibility. TE Connectivity AMPLIMITE HD-20 series parts form the primary substitution group. Secondary alternatives from Amphenol ICC (FCI) Delta D and DM HE501 series are included where electrical and mechanical parameters align.
Parameter Comparison
| Parameter | HARTING 09661626813 | TE 1393481-5 | TE 338168-2 | TE 8-338168-2 | TE 5745434-8 | Amphenol D09P13A6RV09LF | Amphenol DEM09P500 |
|---|---|---|---|---|---|---|---|
| Connector Type | D-Sub Plug, Male Pins | D-Sub Plug, Male Pins | D-Sub Plug, Male Pins | D-Sub Plug, Male Pins | D-Sub Plug, Male Pins | D-Sub Plug, Male Pins | D-Sub Plug, Male Pins |
| Number of Positions | 9 | 9 | 9 | 9 | 9 | 9 | 9 |
| Shell Size / Layout | 1 (DE, E) | 1 (DE, E) | 1 (DE, E) | 1 (DE, E) | 1 (DE, E) | 1 (DE, E) | 1 (DE, E) |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination Method | Solder | Solder | Solder | Solder | Solder | Solder Paste | Solder |
| Current Rating (Amps) | 7.5A | 2.2A | 6A | 6A | 6A | 5A per Contact | 7.5A per Contact |
| Operating Temperature Range | -55°C to 125°C | -55°C to 125°C | -55°C to 105°C | -55°C to 105°C | -55°C to 105°C | -55°C | -55°C to 125°C |
| Shell Material | Steel | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Nickel Plated | Steel, Yellow Cadmium Plated |
| Contact Finish | Not specified | Gold | Gold | Gold | Gold | Gold | Gold |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | RoHS non-compliant |
| Moisture Sensitivity Level | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) |
| Flange Feature | Mating Side, Female Screwlock (4-40) | Mating Side, Female Screwlock (4-40) | Housing/Shell (Unthreaded) | Mating Side, Female Screwlock (4-40) | Mating Side, Standard Screws | Mating Side, Female Screwlock (4-40) | Housing/Shell (Unthreaded) |
| Voltage Rating | Not specified | Not specified | 125V | 125V | 125V | 300V | 300V |
Engineering Selection Recommendations
Primary Substitutes (TE Connectivity AMPLIMITE HD-20 Series):
TE Connectivity part numbers 338168-2, 8-338168-2, and 6-338168-2 are direct functional equivalents with ROHS3 compliance and active product status. These parts maintain the 9-position D-Sub configuration, through-hole right-angle solder termination, and UL94 V-0 flammability rating. Current rating of 6A is acceptable for applications where the full 7.5A capacity of the HARTING part is not required. Operating temperature range of -55°C to 105°C covers most industrial applications, though designs requiring the extended 125°C upper limit should verify thermal performance.
TE part 8-338168-2 is recommended as the closest match, offering identical flange configuration (mating side female screwlock 4-40), ROHS3 compliance, and active manufacturing status with 695 units in stock.
Secondary Substitutes (TE AMPLIMITE HD-20 Variants):
TE part 1393481-5 and 8-1393480-5 feature reduced current ratings (2.2A) and are suitable only for low-current signal applications. These parts maintain full temperature range support (-55°C to 125°C) and ROHS3 compliance but should not be used in applications requiring the 7.5A capacity of the primary part.
TE part 5-338168-2 carries obsolete product status and should be avoided for new designs despite adequate electrical specifications.
TE part 5745434-8 (AMPLIMITE HDP-20 series) differs in flange design (mating side standard screws rather than female screwlock) and dielectric material (polyamide versus polyester). This part is suitable where mechanical mounting requirements differ from the primary design.
Alternative Manufacturers (Amphenol ICC / FCI):
Amphenol D09P13A6RV09LF (Delta D series) offers higher voltage rating (300V) and active product status with RoHS compliance. Termination method is solder paste rather than wave solder, requiring process compatibility verification. Current rating of 5A per contact and operating temperature limited to -55°C (no upper limit specified) may restrict application scope.
Amphenol DEM09P500 (DM HE501 series) matches the 7.5A per contact current rating and -55°C to 125°C temperature range of the primary part. However, RoHS non-compliance and yellow cadmium plating disqualify this part for applications requiring modern environmental compliance standards.
Recommendation Summary:
For direct replacement with maximum compatibility: TE 8-338168-2 (ROHS3 compliant, active status, matching flange configuration).
For applications with relaxed current requirements: TE 338168-2 or 6-338168-2 (both ROHS3 compliant, active status, tray packaging available).
For high-voltage applications: Amphenol D09P13A6RV09LF (300V rating, RoHS compliant, verify solder paste process compatibility).
Avoid: TE 5-338168-2 (obsolete), TE 1393481-5 and 8-1393480-5 (insufficient current rating for 7.5A applications), Amphenol DEM09P500 (RoHS non-compliant).
Frequently Asked Questions (FAQ)

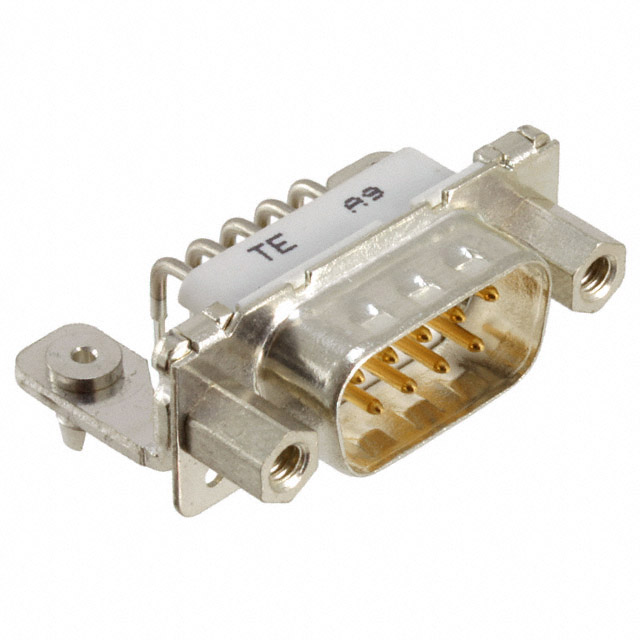

Q: Can TE 1393481-5 replace the HARTING 09661626813 in my application?
A: TE 1393481-5 is electrically and mechanically compatible in terms of connector geometry and pin configuration. However, the current rating is 2.2A compared to 7.5A for the HARTING part. Use this substitute only if your application requires less than 2.2A per contact. For applications drawing 7.5A, this part will not provide adequate current capacity.
Q: What is the difference between TE 338168-2 and TE 8-338168-2?
A: Both parts are AMPLIMITE HD-20 series with identical electrical specifications (6A current rating, 125V voltage rating, -55°C to 105°C operating range). The primary difference is packaging: 338168-2 is supplied in trays, while 8-338168-2 is supplied in bulk. Both feature the mating side female screwlock (4-40) flange configuration matching the HARTING part. Select based on your procurement and assembly requirements.
Q: Why does Amphenol DEM09P500 show RoHS non-compliance?
A: Amphenol DEM09P500 uses yellow cadmium plating on the steel shell. Cadmium is a restricted substance under RoHS regulations. This part should not be used in applications subject to RoHS compliance requirements, including most consumer electronics and EU-regulated industrial equipment.
Q: Can I use Amphenol D09P13A6RV09LF as a direct solder replacement?
A: Amphenol D09P13A6RV09LF uses solder paste termination rather than wave solder. This requires different assembly process equipment and parameters. Mechanical and electrical compatibility is confirmed, but manufacturing process compatibility must be verified with your assembly partner before substitution.
Q: What is the operating temperature limitation for TE 338168-2?
A: TE 338168-2 is rated for -55°C to 105°C, compared to -55°C to 125°C for the HARTING 09661626813. If your application requires sustained operation above 105°C, this substitute is not suitable. Verify your actual operating temperature requirements before selection.
Q: Are all substitute parts ROHS3 compliant?
A: No. TE Connectivity AMPLIMITE HD-20 series parts (338168-2, 8-338168-2, 6-338168-2, 1393481-5, 8-1393480-5) are ROHS3 compliant. TE part 5-338168-2 is RoHS compliant (earlier standard). Amphenol D09P13A6RV09LF is RoHS compliant. Amphenol DEM09P500 is RoHS non-compliant. Verify compliance requirements for your application before selection.
Q: What does "Mating Side, Female Screwlock (4-40)" mean?
A: This flange feature indicates that the connector shell includes threaded holes (4-40 thread size) on the mating face for mechanical retention screws. This provides secure mechanical coupling to the mating connector. Alternative flange designs such as "Housing/Shell (Unthreaded)" or "Housing/Shell (M3)" use different mechanical retention methods and may not be directly interchangeable without mechanical redesign.
Q: Can I substitute TE 5745434-8 if my design uses standard screws instead of female screwlock?
A: TE 5745434-8 features "Mating Side, Standard Screws" flange design, which differs from the HARTING part's female screwlock configuration. This part is mechanically compatible if your mating connector or backplane design accommodates standard screw retention. Verify mechanical interface compatibility with your specific application before substitution.
