HARTING 09661536613 D-Sub 9 Position Receptacle Equivalent & Substitute Parts

Part Overview

The HARTING 09661536613 is a 9 position D-Sub receptacle connector with female sockets, right-angle solder termination, and through-hole mounting. This connector is designed for signal applications requiring a compact, reliable interface in industrial and commercial equipment. The part is active in production with 720 units currently in stock. Equivalent and substitute parts are identified based on matching electrical specifications, mechanical compatibility, and connector geometry to ensure direct functional replacement in applications where the original part may be unavailable or where design flexibility permits alternative sourcing.

Key Parameters

Parameter	Value
Connector Type	D-Sub Receptacle, Female Sockets
Number of Positions	9
Shell Size / Layout	1 (DE, E)
Mounting Type	Through Hole, Right Angle
Termination	Solder
Current Rating	6.5A
Operating Temperature Range	-55°C to 125°C
Material Flammability	UL94 V-0
RoHS Status	ROHS3 Compliant
Backset Spacing	0.409" (10.40mm)

Substitute Part Grouping Explanation

Substitution eligibility is determined by the following critical parameters:

Connector Configuration: 9 position D-Sub receptacle with female sockets
Shell Size: DE/E (Size 1)
Mounting Orientation: Right-angle, through-hole
Termination Method: Solder
Electrical Performance: Current rating and operating temperature compatibility
Compliance: UL94 V-0 flammability rating and RoHS3 compliance

Substitute parts are grouped by flange feature type (housing/shell configuration, screwlock style) and contact finish specifications. Parts with different backset spacing, dielectric materials, or mounting configurations are included where electrical and mechanical parameters remain compatible with the original design envelope.

Parameter Comparison

Part Number	Manufacturer	Connector Type	Positions	Mounting	Current Rating	Operating Temp	Backset Spacing	Shell Material	Contact Material	RoHS Status
09661536613	HARTING	D-Sub Receptacle, 9 Pos, Female	9 (2 Row)	Through Hole, Right Angle	6.5A	-55°C to 125°C	0.409" (10.40mm)	Steel	Copper Alloy	ROHS3
1-106505-2	TE Connectivity AMP	D-Sub Receptacle, 9 Pos, Female	9 (2 Row)	Panel Mount, Through Hole, Right Angle	6A	-55°C to 105°C	0.406" (10.30mm)	Steel, Tin Plated	Phosphor Bronze	ROHS3
106505-2	TE Connectivity AMP	D-Sub Receptacle, 9 Pos, Female	9 (2 Row)	Panel Mount, Through Hole, Right Angle	6A	-55°C to 105°C	0.406" (10.30mm)	Steel, Tin Plated	Phosphor Bronze	ROHS3
2-106505-2	TE Connectivity AMP	D-Sub Receptacle, 9 Pos, Female	9 (2 Row)	Panel Mount, Through Hole, Right Angle	6A	-55°C to 105°C	0.406" (10.30mm)	Steel, Tin Plated	Phosphor Bronze	ROHS3
3-106505-2	TE Connectivity AMP	D-Sub Receptacle, 9 Pos, Female	9 (2 Row)	Panel Mount, Through Hole, Right Angle	6A	-55°C to 105°C	0.406" (10.30mm)	Steel, Tin Plated	Phosphor Bronze	ROHS3
5-106505-2	TE Connectivity AMP	D-Sub Receptacle, 9 Pos, Female	9 (2 Row)	Panel Mount, Through Hole, Right Angle	6A	-55°C to 105°C	0.406" (10.30mm)	Steel, Tin Plated	Phosphor Bronze	ROHS3
5745438-1	TE Connectivity AMP	D-Sub Receptacle, 9 Pos, Female	9 (2 Row)	Through Hole, Right Angle	6A	-55°C to 105°C	0.454" (11.53mm)	Steel, Tin Plated	Phosphor Bronze	ROHS3
5745438-4	TE Connectivity AMP	D-Sub Receptacle, 9 Pos, Female	9 (2 Row)	Through Hole, Right Angle	6A	-55°C to 105°C	0.454" (11.53mm)	Steel, Tin Plated	Phosphor Bronze	RoHS Compliant
D09S13A4GL00LF	Amphenol ICC (FCI)	D-Sub Receptacle, 9 Pos, Female	9 (2 Row)	Through Hole, Right Angle	5A per Contact	-55°C to 125°C	0.409" (10.40mm)	Steel, Tin-Nickel Plated	Phosphor Bronze	ROHS3
D09S13A4GV00LF	Amphenol ICC (FCI)	D-Sub Receptacle, 9 Pos, Female	9 (2 Row)	Through Hole, Right Angle	5A per Contact	-55°C to 125°C	0.409" (10.40mm)	Steel, Tin-Nickel Plated	Phosphor Bronze	RoHS Compliant
D09S13A4PA00LF	Amphenol ICC (FCI)	D-Sub Receptacle, 9 Pos, Female	9 (2 Row)	Through Hole, Right Angle	5A per Contact	-55°C to 125°C	0.409" (10.40mm)	Steel, Tin-Nickel Plated	Phosphor Bronze	RoHS Compliant

Engineering Selection Recommendations

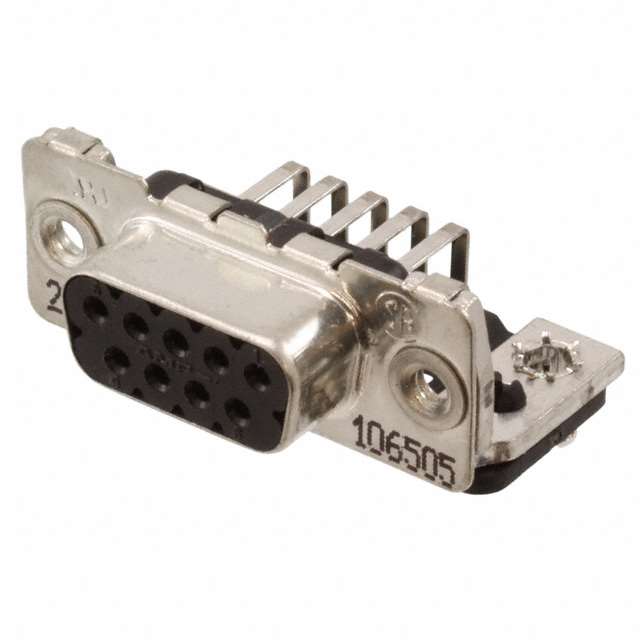

TE Connectivity AMPLIMITE HD-20 Series (1-106505-2, 106505-2, 2-106505-2, 3-106505-2, 5-106505-2)

These parts are direct functional equivalents with ROHS3 compliance and active product status. The primary difference is the reduced operating temperature upper limit (105°C vs. 125°C) and slightly lower current rating (6A vs. 6.5A). Flange feature variations (housing/shell configurations and screwlock styles) allow selection based on specific mounting requirements. All are available in high inventory quantities.

TE Connectivity AMPLIMITE HDP-20 Series (5745438-1, 5745438-4)

These connectors feature increased backset spacing (0.454" vs. 0.409") and include mounting brackets. They maintain 6A current rating and -55°C to 105°C operating range. The HDP-20 series uses polyamide dielectric material versus polybutylene terephthalate in the main part. These are suitable where mechanical mounting flexibility is required.

Amphenol ICC Delta D Series (D09S13A4GL00LF, D09S13A4GV00LF, D09S13A4PA00LF)

These parts match the original operating temperature range (-55°C to 125°C) and backset spacing (0.409"). Current rating is specified as 5A per contact. All three variants are ROHS3 or RoHS compliant with active product status. Flange feature differences (housing/shell M3, female screwlock, unthreaded) provide mounting flexibility. Tin-nickel plating on steel shells offers enhanced corrosion resistance compared to the original part.

Frequently Asked Questions (FAQ)

Q: Can I use a substitute part with a lower current rating than the original?

A: Substitution with lower current ratings (5A vs. 6.5A) is permissible only if the application circuit does not exceed the substitute part's current specification. The circuit design must be evaluated to confirm that maximum current draw remains within the substitute part's rating.

Q: What is the significance of backset spacing differences?

A: Backset spacing (0.409" vs. 0.406" vs. 0.454") affects the connector's position relative to the PCB surface. Differences of 0.003" to 0.045" may require PCB layout adjustment or mechanical clearance verification. Larger spacing variations (HDP-20 series at 0.454") require explicit mechanical compatibility assessment.

Q: Are TE Connectivity and Amphenol ICC parts interchangeable with HARTING?

A: Yes, within the constraints of the specified parameters. All substitute parts maintain 9-position D-Sub receptacle configuration, female sockets, right-angle solder termination, and DE/E shell size. Flange feature and contact finish differences do not prevent functional substitution but may require mechanical or environmental compatibility review.

Q: What is the difference between ROHS3 and RoHS Compliant designations?

A: ROHS3 indicates compliance with the third iteration of the Restriction of Hazardous Substances directive. RoHS Compliant without version specification indicates general RoHS compliance. Both designations confirm absence of restricted substances. Verify specific regulatory requirements for your application.

Q: Does operating temperature range affect substitution eligibility?

A: Operating temperature range affects substitution only if the application requires the full -55°C to 125°C range. Substitute parts with -55°C to 105°C range are suitable for applications operating within this narrower window. Applications requiring temperatures above 105°C must use parts rated to 125°C (original HARTING part or Amphenol ICC Delta D series).

Q: What packaging options are available?

A: The original HARTING part is supplied in bulk packaging. TE Connectivity AMPLIMITE HD-20 series is available in tray packaging (1-106505-2, 106505-2, 2-106505-2, 3-106505-2) or bulk (5-106505-2). TE Connectivity AMPLIMITE HDP-20 series is available in tray (5745438-1) or bulk (5745438-4). Amphenol ICC Delta D series is supplied in tray packaging. Packaging selection may affect procurement lead times and minimum order quantities.
