HARTING 09654616713 D-Sub Plug 37 Position Connector - Equivalent & Substitute Parts
Part Overview
The HARTING 09654616713 is a 37-position D-Sub plug connector with male pins, designed for through-hole solder termination. This connector features a 4-position shell size (DC, C layout), board lock functionality, and grounding indents. The part is actively manufactured and widely used in industrial and commercial applications requiring reliable signal connectivity.
Substitute parts are necessary when the original manufacturer part becomes unavailable, when alternative sourcing reduces lead times, or when design requirements allow for functionally equivalent alternatives that meet the same electrical and mechanical specifications.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Connector Type | D-Sub Plug, Male Pins |
| Number of Positions | 37 |
| Shell Size / Layout | 4 (DC, C) |
| Mounting Type | Through Hole |
| Termination Method | Solder |
| Current Rating | 6.5A |
| Operating Temperature Range | -55°C to 125°C |
| Material Flammability Rating | UL94 V-0 |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
Substitute Part Grouping Explanation
Substitution eligibility for the HARTING 09654616713 is determined by the following critical parameters:
Primary Compatibility Criteria:
- Connector type: D-Sub plug with male pins
- Position count: 37 positions
- Shell size and layout: 4 (DC, C)
- Mounting method: Through hole
- Termination: Solder
- Flange feature: Mating side, female screwlock (4-40)
- Board lock and grounding indents: Required
Secondary Compatibility Criteria:
- Operating temperature range: Minimum -55°C to 125°C
- Material flammability: UL94 V-0
- RoHS compliance: ROHS3 Compliant
- Moisture sensitivity: MSL 1 (Unlimited)
Substitute parts are grouped into two categories based on flange configuration alignment:
Category A - Exact Flange Match (Mating Side, Female Screwlock 4-40): Parts with identical flange features to the main part, ensuring direct mechanical and electrical compatibility without design modification.
Category B - Compatible Flange Variants (Housing/Shell Configurations): Parts with alternative flange designs that maintain 37-position, 4-shell-size compatibility but may require evaluation for specific mounting applications.
Parameter Comparison
| Manufacturer Part Number | Manufacturer | Connector Type | Positions | Shell Size | Mounting Type | Termination | Current Rating (A) | Operating Temp (°C) | Flange Feature | Board Lock | RoHS Status |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 09654616713 | HARTING | D-Sub Plug, Male Pins | 37 | 4 (DC, C) | Through Hole | Solder | 6.5 | -55 to 125 | Mating Side, Female Screwlock (4-40) | Yes | ROHS3 |
| 172-E37-113R911 | NorComp Inc. | D-Sub Plug, Male Pins | 37 | 4 (DC, C) | Panel Mount, Through Hole | Solder | 5 | -50 to 100 | Board Side (4-40); Mating Side, Female Screwlock (4-40) | Yes | ROHS3 |
| 5786534-1 | TE Connectivity AMP Connectors | D-Sub Plug, Male Pins | 37 | 4 (DC, C) | Through Hole | Press-Fit | Not Specified | -55 to 105 | Housing/Shell (4-40) | No | ROHS3 |

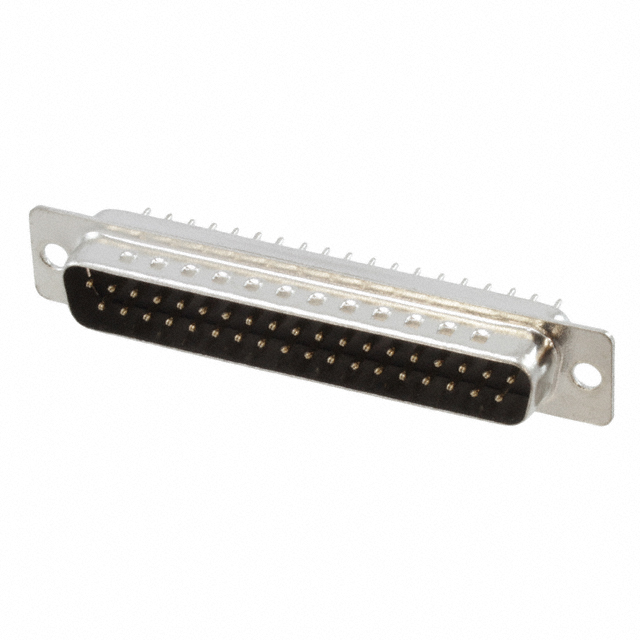

| A-DS 37 PP/Z | Assmann WSW Components | D-Sub Plug, Male Pins | 37 | 4 (DC, C) | Through Hole | Solder | 3 | -20 to 105 | Housing/Shell (Unthreaded) | No | ROHS3 |
| D37P24A4GX00LF | Amphenol ICC (FCI) | D-Sub Plug, Male Pins | 37 | 4 (DC, C) | Through Hole | Solder | 5 | -55 to 125 | Housing/Shell (4-40) | Yes | RoHS |
| D37P24A4PA00LF | Amphenol ICC (FCI) | D-Sub Plug, Male Pins | 37 | 4 (DC, C) | Through Hole | Solder | 5 | -55 to 125 | Housing/Shell (Unthreaded) | No | RoHS |
| D37P24A4PL00LF | Amphenol ICC (FCI) | D-Sub Plug, Male Pins | 37 | 4 (DC, C) | Through Hole | Solder | 5 | -55 to 125 | Housing/Shell (M3) | No | RoHS |
| L717TSCH37POL2RM8 | Amphenol ICC (Commercial Products) | D-Sub Plug, Male Pins | 37 | 4 (DC, C) | Through Hole | Solder | 5 | -55 to 125 | Mating Side, Female Screwlock (4-40) | Yes | RoHS |
| 172-E37-113R011 | NorComp Inc. | D-Sub Plug, Male Pins | 37 | 4 (DC, C) | Panel Mount, Through Hole | Solder | 5 | -50 to 100 | Board Side (4-40) | No | ROHS3 |
Engineering Selection Recommendations
Direct Substitutes (Highest Compatibility):
The L717TSCH37POL2RM8 (Amphenol ICC, Commercial Products) provides the closest functional match to the HARTING 09654616713. Both connectors feature identical flange configurations (mating side, female screwlock 4-40), board lock functionality, grounding indents, through-hole mounting, and solder termination. Operating temperature ranges (-55°C to 125°C) are identical. Both parts maintain RoHS compliance and MSL 1 rating. This part is actively manufactured with 3998 units in stock.
The 172-E37-113R911 (NorComp Inc., M Series) offers dual flange capability with both board-side and mating-side female screwlock features, providing mechanical flexibility. However, the operating temperature range (-50°C to 100°C) is narrower than the main part, and current rating is reduced to 5A. This part is actively manufactured with 829 units in stock.
Compatible Alternatives (Functional Equivalence with Design Considerations):
The D37P24A4GX00LF (Amphenol ICC, Delta D Series) maintains the required 37-position, 4-shell-size configuration with through-hole solder termination and board lock. Operating temperature range (-55°C to 125°C) matches the main part. The housing/shell flange (4-40) differs from the mating-side screwlock configuration, requiring mechanical evaluation for specific mounting applications. Current rating is 5A per contact. This part is actively manufactured with 1234 units in stock.
Limited Substitution (Reduced Electrical Performance):
The A-DS 37 PP/Z (Assmann WSW Components) meets the 37-position, 4-shell-size, through-hole solder requirements but has a significantly reduced current rating (3A versus 6.5A) and narrower operating temperature range (-20°C to 105°C). This part is suitable only for applications with lower current demands. 1234 units are in stock.
Not Recommended for Direct Substitution:
The 5786534-1 (TE Connectivity AMP Connectors, AMPLIMITE HD-20) uses press-fit termination instead of solder, requiring different PCB design and assembly processes. The absence of board lock and specified current rating further limits compatibility. This part should be considered only if design modifications are acceptable.
Frequently Asked Questions (FAQ)
Q: Can the L717TSCH37POL2RM8 directly replace the HARTING 09654616713 without PCB modification?
A: Yes. Both connectors feature identical mating-side female screwlock (4-40) flange configurations, 37-position 4-shell-size layouts, through-hole solder termination, and board lock functionality. No PCB design changes are required.
Q: What is the significance of the flange feature difference between the main part and D37P24A4GX00LF?
A: The main part uses a mating-side female screwlock flange, while the D37P24A4GX00LF uses a housing/shell flange. Both are mechanically compatible with 37-position D-Sub mating connectors, but the mounting interface differs. Mechanical evaluation is required to confirm compatibility with the specific mating connector in your application.
Q: Why does the A-DS 37 PP/Z have a lower current rating?
A: The A-DS 37 PP/Z is rated for 3A maximum current, compared to 6.5A for the HARTING 09654616713. This reflects differences in contact material (brass versus copper alloy), contact form (stamped versus stamped), and shell finish (tin-plated versus steel). This part is suitable only for signal-level applications with current requirements below 3A.
Q: Is the 5786534-1 suitable as a substitute?
A: The 5786534-1 uses press-fit termination instead of solder, requiring different PCB design and assembly processes. Additionally, it lacks board lock functionality and does not specify a current rating. This part is not recommended as a direct substitute unless your design can accommodate press-fit termination and does not require board lock.
Q: What is the difference between ROHS3 and RoHS compliance status?
A: ROHS3 Compliant indicates full compliance with RoHS Directive 2011/65/EU as amended by Directive (EU) 2015/863. RoHS Compliant indicates compliance with the original RoHS Directive 2002/95/EC. Both statuses confirm the absence of restricted substances (lead, cadmium, mercury, hexavalent chromium, PBBs, PBDEs). Parts marked ROHS3 meet the most current regulatory requirements.
Q: Can the 172-E37-113R011 be used in applications requiring -55°C operation?
A: No. The 172-E37-113R011 has a minimum operating temperature of -50°C, which does not meet the -55°C requirement of the main part. Use this part only in applications with operating temperatures above -50°C.
Q: What packaging format is available for each substitute part?
A: All substitute parts listed are supplied in Tray packaging, matching the main part's packaging format. This ensures compatibility with standard component handling and storage procedures.
