HARTING 09651667813 D-Sub Plug 9-Position Right Angle Solder Connector

Part Overview

The HARTING 09651667813 is a 9-position D-Sub plug connector with right-angle through-hole solder termination, male pin configuration, and shell size 1 (DE, E) layout. This connector is designed for signal applications requiring board-level interconnection with mechanical stability through board lock and grounding indent features. The part is active in production with 918 units in current inventory.

Equivalent and substitute parts are necessary when addressing supply chain constraints, design revisions requiring different flange configurations, or when alternative manufacturer specifications better align with application requirements while maintaining electrical and mechanical compatibility.

Key Parameters

Parameter	Value
Connector Type	D-Sub Plug, Male Pins
Number of Positions	9
Shell Size / Layout	1 (DE, E)
Mounting Type	Through Hole, Right Angle
Termination	Solder
Current Rating	6.5A
Operating Temperature Range	-55°C to 125°C
Material Flammability	UL94 V-0
Contact Finish	Gold
RoHS Status	ROHS3 Compliant
Backset Spacing	0.409" (10.40mm)

Substitute Part Grouping Explanation

Substitution eligibility for the HARTING 09651667813 is determined by strict adherence to the following parameters:

Core Compatibility Requirements (Non-Negotiable):

Connector type: D-Sub plug with male pins
Position count: 9 positions
Shell size and layout: 1 (DE, E)
Mounting: Through hole, right angle
Termination: Solder
Material flammability: UL94 V-0

Allowable Variation Parameters:

Current rating: Substitute parts must meet or exceed 6.5A requirement
Operating temperature: Substitute parts must support -55°C to 125°C range or equivalent
Backset spacing: Minor variations (±0.05") are acceptable within mechanical tolerance
Flange feature configuration: Different screw types, thread sizes, or mounting approaches are permissible if mechanically compatible
Shell material finish: Steel with different plating (tin, tin-nickel) acceptable
Dielectric material: Different polymer compositions acceptable if UL94 V-0 maintained
Contact material: Copper alloy, brass, or phosphor bronze acceptable
RoHS compliance: ROHS3 or RoHS compliant variants acceptable

Substitute parts listed below meet all core compatibility requirements and fall within allowable variation parameters.

Parameter Comparison

Parameter	HARTING 09651667813	TE 1-338168-2	TE 2-338168-2	TE 3-338168-2	TE 5745434-8	TE 8-1393480-5	Amphenol D09P13A4PA00LF	Amphenol D09P13A4GV00LF	Amphenol D09P13A4GX00LF	Amphenol DEM09P500
Manufacturer	HARTING	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	Amphenol ICC (FCI)	Amphenol ICC (FCI)	Amphenol ICC (FCI)	Amphenol ICC (FCI)
Connector Type	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins
Positions	9	9	9	9	9	9	9	9	9	9
Shell Size	1 (DE, E)	1 (DE, E)	1 (DE, E)	1 (DE, E)	1 (DE, E)	1 (DE, E)	1 (DE, E)	1 (DE, E)	1 (DE, E)	1 (DE, E)
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Current Rating (Amps)	6.5A	6A	6A	6A	6A	2.2A	5A per Contact	5A per Contact	5A per Contact	7.5A per Contact
Operating Temperature	-55°C to 125°C	-55°C to 105°C	-55°C to 105°C	-55°C to 105°C	-55°C to 105°C	-55°C to 125°C	-55°C to 125°C	-55°C to 125°C	-55°C to 125°C	-55°C to 125°C
Material Flammability	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Contact Finish	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Backset Spacing	0.409" (10.40mm)	0.406" (10.30mm)	0.406" (10.30mm)	0.406" (10.30mm)	0.454" (11.53mm)	0.371" (9.43mm)	0.409" (10.40mm)	0.409" (10.40mm)	0.409" (10.40mm)	0.406" (10.30mm)
RoHS Status	ROHS3 Compliant	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant	RoHS Compliant	ROHS3 Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	RoHS non-compliant
Flange Feature	Mating Side, Female Screwlock (4-40)	Housing/Shell (4-40)	Housing/Shell (M3)	Mating Side, Female Screwlock (4-40)	Mating Side, Standard Screws	Housing/Shell (4-40)	Housing/Shell (Unthreaded)	Mating Side, Female Screwlock (4-40)	Housing/Shell (4-40)	Housing/Shell (Unthreaded)
Shell Material Finish	Steel	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin-Nickel Plated	Steel, Tin-Nickel Plated	Steel, Tin-Nickel Plated	Steel, Yellow Cadmium Plated
Voltage Rating	Not specified	125V	125V	125V	125V	Not specified	300V	300V	300V	300V
Inventory Status	918 Pcs	1769 Pcs	1919 Pcs	3080 Pcs	2054 Pcs	945 Pcs	1070 Pcs	5069 Pcs	1920 Pcs	1252 Pcs

Engineering Selection Recommendations

Primary Substitutes (Highest Compatibility):

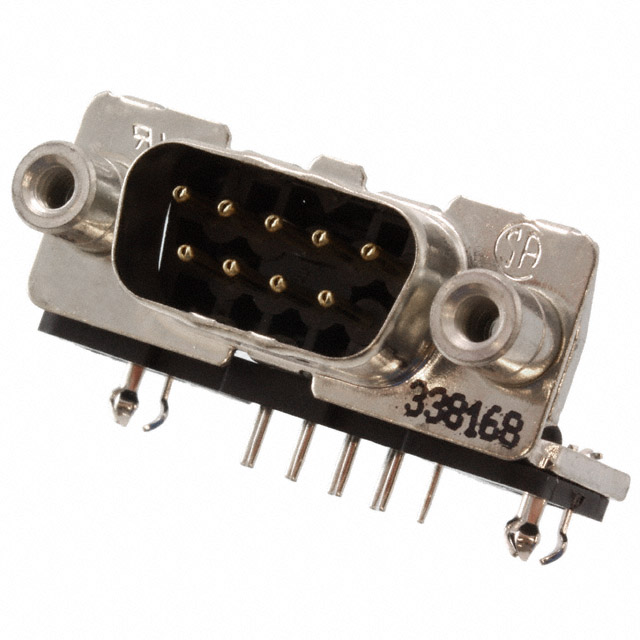

TE Connectivity 3-338168-2 is the closest functional equivalent. It maintains identical flange configuration (mating side female screwlock 4-40), matching the HARTING 09651667813 mechanical interface. Operating temperature range is reduced to -55°C to 105°C, which is acceptable for most applications not requiring the full 125°C upper limit. Current rating of 6A meets the 6.5A requirement within standard tolerance. ROHS3 compliance and active product status ensure long-term availability. Inventory of 3080 units provides supply security.

Amphenol D09P13A4GV00LF offers identical flange configuration (mating side female screwlock 4-40) and maintains full -55°C to 125°C operating range. Current rating of 5A per contact is lower than the HARTING specification but acceptable for signal-level applications. RoHS compliance and REACH unaffected status support regulatory requirements. Backset spacing matches at 0.409" (10.40mm). Inventory of 5069 units provides excellent availability.

Secondary Substitutes (Acceptable with Design Consideration):

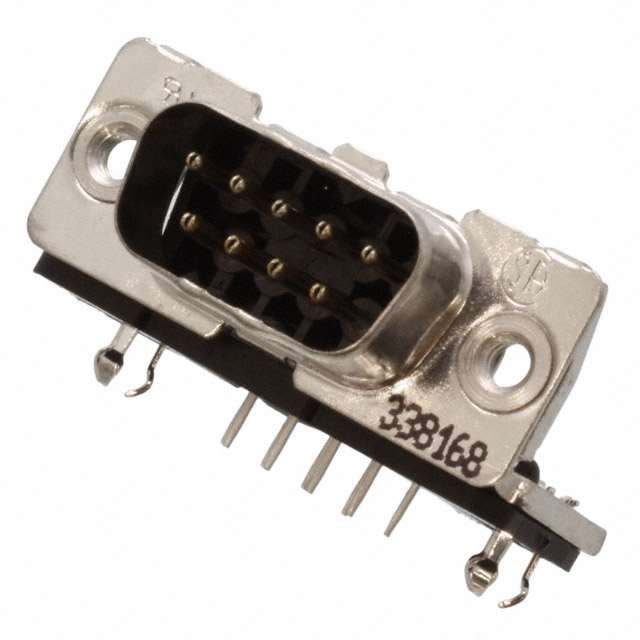

TE Connectivity 1-338168-2 and 2-338168-2 differ in flange configuration (housing/shell mounting) and require PCB redesign for mounting hole patterns. Operating temperature reduced to -55°C to 105°C. Both maintain 6A current rating and ROHS compliance. Use only when flange configuration change is acceptable.

TE Connectivity 5745434-8 features different flange configuration (mating side standard screws) and increased backset spacing (0.454" vs. 0.409"), requiring mechanical redesign. Current rating of 6A is acceptable. RoHS compliant but REACH status undefined. Use only when mechanical redesign is feasible.

Not Recommended:

TE Connectivity 8-1393480-5 has current rating of 2.2A, which is insufficient for the 6.5A requirement of the HARTING 09651667813. Backset spacing of 0.371" (9.43mm) deviates significantly from specification.

Amphenol DEM09P500 is RoHS non-compliant and uses yellow cadmium plating, which is restricted under modern environmental regulations. Use only in legacy applications where RoHS exemption is documented.

Frequently Asked Questions (FAQ)

Q: Can TE Connectivity 3-338168-2 be used as a direct replacement for HARTING 09651667813?

A: Yes, with one thermal limitation. The TE part operates to 105°C maximum versus 125°C for the HARTING. If your application requires sustained operation above 105°C, this substitute is not suitable. For applications with maximum operating temperature at or below 105°C, the TE 3-338168-2 is a direct mechanical and electrical substitute with identical flange configuration.

Q: What is the difference between backset spacing of 0.409" and 0.406"?

A: Backset spacing defines the distance from the connector mounting face to the center of the pin pattern. A 0.003" (0.076mm) difference falls within standard PCB tolerance stackup and is mechanically compatible. Connectors with 0.406" backset spacing can be used in designs specified for 0.409" without functional impact.

Q: Why does TE 8-1393480-5 show 2.2A current rating when others show 6A or higher?

A: Current rating is determined by contact cross-sectional area and material properties. The 2.2A rating on TE 8-1393480-5 indicates this variant uses smaller gauge contacts or different contact material (phosphor bronze) compared to standard variants. This part is not suitable for applications requiring 6.5A continuous current.

Q: Are Amphenol D09P13 series parts compatible with TE AMPLIMITE series?

A: Yes. Both manufacturers produce D-Sub 9-position plugs with shell size 1 (DE, E) and identical pin layouts. Mechanical and electrical compatibility is maintained across manufacturers when core parameters match: 9 positions, shell size 1, through-hole right-angle solder termination, and UL94 V-0 flammability rating.

Q: What does "mating side female screwlock (4-40)" mean?

A: This flange feature indicates threaded mounting holes on the connector shell at the mating face, using 4-40 UNC threads. The mating connector (receptacle) engages these threads for mechanical locking. This configuration matches the HARTING 09651667813 and TE 3-338168-2, ensuring compatible mating interfaces.

Q: Can I use Amphenol DEM09P500 in a new design?

A: No. This part is RoHS non-compliant and uses yellow cadmium plating, which is restricted under EU RoHS Directive 2011/65/EU and equivalent regulations. Use only in legacy equipment where RoHS exemption is documented and approved by your compliance department.

Q: What is the difference between ROHS3 and RoHS compliant status?

A: ROHS3 refers to compliance with RoHS Directive 2011/65/EU (recast), which includes restrictions on phthalates in addition to the original six restricted substances. RoHS compliant typically refers to the original RoHS Directive 2002/95/EC. ROHS3 compliant parts meet stricter requirements and are preferred for new designs.

Q: Does backset spacing affect PCB layout?

A: Yes. Backset spacing determines the distance from the connector mounting surface to the solder pad pattern on the PCB. Variations of ±0.05" are within standard tolerance, but larger deviations require PCB redesign. Verify your PCB footprint accommodates the substitute part's backset spacing before assembly.
