HARTING 09643117227 D-Sub Receptacle 25-Position Equivalent & Substitute Parts
Part Overview
The HARTING 09643117227 is a 25-position D-Sub receptacle connector with female sockets, designed for free-hanging in-line applications. This connector features solder cup termination, steel tin-plated shell construction, and operates across -55°C to 125°C. The part is classified as obsolete, making equivalent and substitute parts necessary for ongoing system maintenance and new design implementations.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Connector Type | D-Sub Receptacle, Female Sockets |
| Number of Positions | 25 |
| Shell Size | 3 (DB, B) |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Solder Cup |
| Shell Material, Finish | Steel, Tin Plated |
| Current Rating | 7.5A |
| Voltage Rating | 100V |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| RoHS Status | ROHS3 Compliant |
Substitute Part Grouping Explanation
Substitution for the HARTING 09643117227 is determined by strict alignment of the following critical parameters:
- Connector Type & Configuration: Receptacle, female sockets, 25-position, 2-row D-Sub layout (Shell Size 3)
- Termination Method: Solder cup termination required
- Mounting Style: Free-hanging in-line configuration
- Electrical Ratings: Current and voltage ratings must meet or exceed the original specification
- Environmental Compliance: RoHS3 compliance and UL94 V-0 flammability rating
- Operating Temperature Range: -55°C to 125°C minimum
Substitute parts are grouped into two categories based on flange feature compatibility:
Category A - Cable Side Flange (4-40): Parts with cable-side mounting flanges matching the original design.
Category B - Housing/Shell Flange (Unthreaded): Parts with unthreaded shell-side flanges, suitable for applications where cable-side mounting is not required.
Parameter Comparison
| Parameter | HARTING 09643117227 | Amphenol CONEC 164A10039X | Amphenol CONEC 164A10239X | Adam Tech DB25-SD-SL | Amphenol ICC L77SDB25S |
|---|---|---|---|---|---|
| Manufacturer | HARTING | Amphenol CONEC | Amphenol CONEC | Adam Tech | Amphenol ICC |
| Part Number | 09643117227 | 164A10039X | 164A10239X | DB25-SD-SL | L77SDB25S |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Number of Positions | 25 | 25 | 25 | 25 | 25 |
| Shell Size | 3 (DB, B) | 3 (DB, B) | 3 (DB, B) | 3 (DB, B) | 3 (DB, B) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Solder Cup | Solder Cup | Solder Cup | Solder Cup | Solder Cup |
| Shell Material, Finish | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated |
| Current Rating (Amps) | 7.5A | 7.5A | 7.5A | 3A | 3A |
| Voltage Rating | 100V | 125V | 125V | 250VAC | 250V |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |
| Product Status | Obsolete | Active | Active | Active | Active |
| Flange Feature | Cable Side (4-40) | Housing/Shell (Unthreaded) | Cable Side (4-40) | Cable Side (4-40) | Housing/Shell (Unthreaded) |
Engineering Selection Recommendations
Primary Substitutes (Full Electrical & Mechanical Compatibility)
Amphenol CONEC 164A10239X and Adam Tech DB25-SD-SL are direct substitutes for applications requiring cable-side flange mounting. Both maintain the 7.5A current rating and -55°C to 125°C operating temperature range of the original HARTING part. Amphenol CONEC 164A10239X is recommended for designs requiring extended temperature performance and higher current capacity. Adam Tech DB25-SD-SL is suitable for applications with reduced current requirements (3A maximum).
Secondary Substitutes (Modified Mounting Configuration)

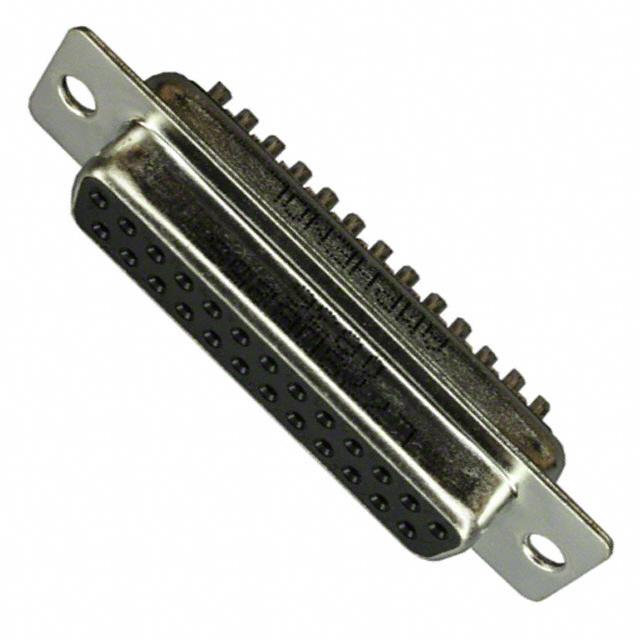

Amphenol CONEC 164A10039X and Amphenol ICC L77SDB25S feature unthreaded housing-side flanges, requiring mechanical redesign of mounting interfaces. These parts are suitable for applications where cable-side mounting is not required. Amphenol CONEC 164A10039X maintains full electrical compatibility with the original specification. Amphenol ICC L77SDB25S operates at reduced current (3A) and maximum temperature (105°C).
Compliance Considerations
All substitute parts maintain UL94 V-0 flammability rating and RoHS3 compliance, ensuring regulatory alignment with the original HARTING 09643117227. Amphenol CONEC parts provide the highest electrical performance margin with 125V and 7.5A ratings.
Frequently Asked Questions (FAQ)
Q: Can I use a substitute part with a different flange configuration?
A: Yes, but mechanical redesign is required. Amphenol CONEC 164A10039X and Amphenol ICC L77SDB25S feature unthreaded housing-side flanges instead of cable-side flanges. Your mounting structure must accommodate this change.
Q: What is the difference between the Amphenol CONEC substitutes?
A: Amphenol CONEC 164A10039X has an unthreaded housing-side flange. Amphenol CONEC 164A10239X has a cable-side flange matching the original HARTING design. Both maintain 7.5A current rating and -55°C to 125°C operating temperature.
Q: Are Adam Tech DB25-SD-SL and Amphenol ICC L77SDB25S suitable for high-current applications?
A: No. Both parts are rated for 3A maximum current, compared to the original 7.5A specification. Use these substitutes only in applications with current requirements of 3A or less.
Q: Do all substitutes meet the original operating temperature range?
A: Amphenol CONEC parts (164A10039X and 164A10239X) maintain the full -55°C to 125°C range. Adam Tech DB25-SD-SL and Amphenol ICC L77SDB25S operate to -55°C to 105°C maximum, reducing the upper temperature limit by 20°C.
Q: What packaging formats are available?
A: Amphenol CONEC parts are supplied in trays. Adam Tech DB25-SD-SL is supplied in trays. Amphenol ICC L77SDB25S is supplied in bulk packaging.
Q: Are all substitutes RoHS3 compliant?
A: Yes. All substitute parts listed are RoHS3 compliant or RoHS compliant, maintaining regulatory alignment with the original HARTING 09643117227.
