HARTING 09642227240 D-Sub Plug 15-Position Equivalent & Substitute Parts

Part Overview

The HARTING 09642227240 is a 15-position D-Sub plug connector with vertical solder termination, designed for through-hole PCB mounting. This connector features a 2-row configuration (DA/A shell size) with signal-grade contacts and is rated for 7.5A at 100V. The part is currently active in production with 865 units in stock.

Equivalent and substitute parts are necessary when the primary part becomes unavailable, when alternative packaging formats are required for manufacturing processes, or when design specifications allow for compatible alternatives from different manufacturers that meet the same electrical and mechanical requirements.

Key Parameters

Parameter	Value
Connector Type	D-Sub Plug, Male Pins
Number of Positions	15
Number of Rows	2
Shell Size / Layout	2 (DA, A)
Mounting Type	Through Hole
Termination Method	Solder
Current Rating	7.5A
Voltage Rating	100V
Operating Temperature Range	-20°C to 125°C
Material Flammability	UL94 V-0
RoHS Status	ROHS3 Compliant

Substitute Part Grouping Explanation

Substitution eligibility for the HARTING 09642227240 is determined by strict alignment of the following core parameters:

Connector Configuration: 15-position D-Sub plug with 2-row layout (DA/A shell size)
Termination Method: Solder attachment to PCB
Mounting Style: Through-hole vertical orientation
Electrical Ratings: Current capacity and voltage rating must meet or exceed the original specification
Compliance Standards: UL94 V-0 flammability rating and RoHS compliance status

Substitute parts listed below maintain these core specifications. Variations in contact material, shell finish, flange design, and dielectric material are permitted when they do not compromise electrical performance or mechanical fit within the specified operating temperature range.

Parameter Comparison

Part Number	Manufacturer	Positions	Shell Size	Current Rating (A)	Voltage Rating (V)	Operating Temp (°C)	Flange Type	RoHS Status	Product Status
09642227240	HARTING	15	2 (DA, A)	7.5	100	-20 to 125	Housing/Shell (Unthreaded)	ROHS3 Compliant	Active
1-338310-2	TE Connectivity AMP	15	2 (DA, A)	6	—	-55 to 105	Housing/Shell (4-40)	RoHS Compliant	Active
1-5747872-6	TE Connectivity AMP	15	2 (DA, A)	6	125	-55 to 105	Mating Side, Female Screwlock (4-40)	RoHS Compliant	Active
1-747872-6	TE Connectivity AMP	15	2 (DA, A)	6	125	-55 to 105	Mating Side, Female Screwlock (4-40)	Not Applicable	Active
172-015-112R001	NorComp Inc.	15	2 (DA, A)	5	—	-50 to 100	Housing/Shell (Unthreaded)	ROHS3 Compliant	Obsolete
172-E15-113R911	NorComp Inc.	15	2 (DA, A)	5	—	-50 to 100	Board Side (4-40); Mating Side, Female Screwlock (4-40)	ROHS3 Compliant	Active
3-338310-2	TE Connectivity AMP	15	2 (DA, A)	6	—	-55 to 105	Mating Side, Female Screwlock (4-40)	RoHS Compliant	Active
5-338310-2	TE Connectivity AMP	15	2 (DA, A)	6	—	-55 to 105	Housing/Shell (Unthreaded)	ROHS3 Compliant	Active

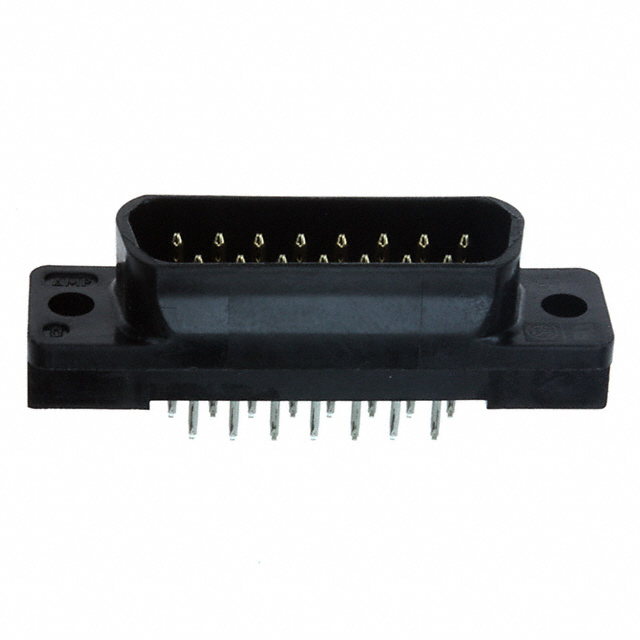

5208007-2	TE Connectivity AMP	15	2 (DA, A)	6	125	-55 to 105	Housing/Shell (Unthreaded)	ROHS3 Compliant	Active
5745052-2	TE Connectivity AMP	15	2 (DA, A)	6	125	-55 to 105	Housing/Shell (4-40)	RoHS Compliant	Active

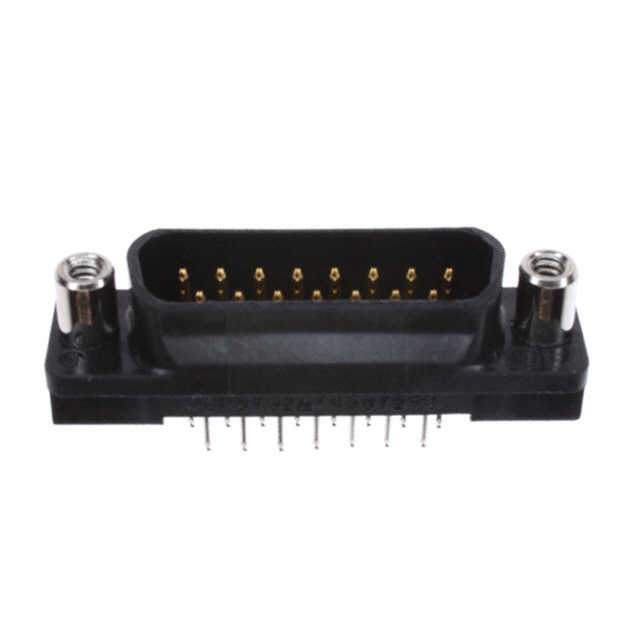

5745072-2	TE Connectivity AMP	15	2 (DA, A)	6	125	-55 to 105	Mating Side, Female Screwlock (4-40)	RoHS Compliant	Active

Engineering Selection Recommendations

Primary Substitutes (Active Status, Full Compliance)

TE Connectivity AMP Connectors parts 5-338310-2, 5208007-2, 5745052-2, and 5745072-2 are active production parts with ROHS3 or RoHS compliance. These maintain the 15-position, 2-row D-Sub plug configuration with solder termination and through-hole mounting. The 5-338310-2 variant with unthreaded housing provides the closest mechanical match to the HARTING original. Parts with screwlock flanges (5745072-2, 1-5747872-6, 1-747872-6) offer enhanced mating-side retention for applications requiring positive locking.

Secondary Substitutes (Active Status, Reduced Current Rating)

NorComp Inc. 172-E15-113R911 is an active production part with ROHS3 compliance. This part carries a 5A current rating, which is lower than the HARTING 09642227240 specification of 7.5A. Selection of this part is appropriate only when circuit design confirms that actual current draw does not exceed 5A.

Obsolete Parts (Not Recommended for New Designs)

NorComp Inc. 172-015-112R001 is marked as obsolete and should not be selected for new production designs or long-term supply planning.

Frequently Asked Questions (FAQ)

Q: Can I substitute a TE Connectivity part with a 6A rating for the HARTING 09642227240 rated at 7.5A?

A: Yes, if your circuit design operates at or below 6A. The substitute part meets the electrical requirement for your actual application. However, if your design requires the full 7.5A capacity, substitution is not appropriate.

Q: What is the difference between parts with "Housing/Shell (Unthreaded)" and "Housing/Shell (4-40)" flanges?

A: The flange type determines the mechanical mounting interface. Unthreaded flanges rely on friction fit or adhesive mounting. 4-40 flanges include threaded mounting holes for M3 or #4-40 fasteners. Select based on your PCB layout and mechanical assembly requirements.

Q: Are all listed substitutes RoHS compliant?

A: Most are RoHS or ROHS3 compliant. Part 1-747872-6 shows "Not Applicable" RoHS status. Verify compliance requirements for your specific application and regulatory jurisdiction before selection.

Q: Can I use a part with a lower operating temperature minimum (e.g., -55°C vs. -20°C)?

A: Yes. A wider operating temperature range is a superset of the original specification and does not restrict functionality. The HARTING part operates from -20°C to 125°C; TE Connectivity substitutes rated -55°C to 105°C are compatible for applications within the -20°C to 105°C overlap range.

Q: What packaging formats are available?

A: The HARTING 09642227240 is supplied in bulk packaging. Substitutes are available in tray, tube, or bulk formats. Verify packaging compatibility with your procurement and assembly processes.

Q: Which substitute offers the best mechanical compatibility with the original HARTING part?

A: TE Connectivity 5-338310-2 provides the closest match with unthreaded housing/shell flange, matching the HARTING original. This part is active in production with ROHS3 compliance and 1,703 units in stock.
