HARTING 09642147232 D-Sub Receptacle 15-Position Right Angle Solder Connector

Part Overview

The HARTING 09642147232 is a 15-position D-Sub receptacle connector with female sockets, configured for right-angle through-hole solder termination. This connector is designed for signal applications requiring a 2-row DA/A shell size layout. The part is active in production with 932 units currently in stock.

Equivalent and substitute parts are necessary when addressing supply chain constraints, specific packaging requirements, or when design specifications allow for alternative manufacturers while maintaining electrical and mechanical compatibility within defined parameter ranges.

Key Parameters

Parameter	Value
Connector Type	D-Sub Receptacle, Female Sockets
Number of Positions	15
Shell Size / Layout	2 (DA, A)
Mounting Type	Through Hole, Right Angle
Termination	Solder
Current Rating	7.5A
Voltage Rating	100V
Operating Temperature Range	-55°C to 125°C
Material Flammability	UL94 V-0
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution eligibility for the HARTING 09642147232 is determined by strict alignment with the following core parameters:

Mandatory Matching Parameters:

Connector type: Receptacle, Female Sockets
Number of positions: 15
Shell size and layout: 2 (DA, A)
Mounting type: Through Hole, Right Angle
Termination method: Solder
Material flammability rating: UL94 V-0
Moisture sensitivity level: 1 (Unlimited)

Allowable Variation Parameters:

Current rating: 6A to 7.5A (substitutes may have lower current capacity)
Voltage rating: 100V to 300V (substitutes may have higher voltage rating)
Operating temperature range: -55°C minimum to 105°C or 125°C maximum
Contact finish: Gold or tin-plated (different finishes acceptable)
Shell material finish: Steel with various plating options
Flange feature: Different mounting hole configurations (4-40, M3, unthreaded, screwlock)
Dielectric material: PCT or PBT (both acceptable)
Contact material: Copper Alloy or Phosphor Bronze

Substitutes are grouped by manufacturer and series. TE Connectivity AMPLIMITE HD-20 series parts (1-106506-2, 106506-2, 2-106506-2, 3-106506-2) and Amphenol ICC Delta D series parts (D15S13 variants) meet all mandatory parameters while offering different flange configurations and contact finishes.

Parameter Comparison

Parameter	HARTING 09642147232	TE 1-106506-2	TE 106506-2	TE 2-106506-2	TE 3-106506-2	Amphenol D15S13A4GL00LF	Amphenol D15S13A4GV00LF	Amphenol D15S13A4GX00LF	Amphenol D15S13A6GV00LF	Amphenol D15S13A6GX00LF	Amphenol D15S13B6UA00LF
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets
Positions	15	15	15	15	15	15	15	15	15	15	15
Shell Size	2 (DA, A)	2 (DA, A)	2 (DA, A)	2 (DA, A)	2 (DA, A)	2 (DA, A)	2 (DA, A)	2 (DA, A)	2 (DA, A)	2 (DA, A)	2 (DA, A)
Mounting Type	Through Hole, Right Angle	Panel Mount, Through Hole, Right Angle	Panel Mount, Through Hole, Right Angle	Panel Mount, Through Hole, Right Angle	Panel Mount, Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Current Rating	7.5A	6A	6A	6A	6A	5A per Contact	5A per Contact	5A per Contact	5A per Contact	5A per Contact	5A
Voltage Rating	100V	125V	125V	125V	125V	300V	300V	300V	300V	300V	300V
Operating Temperature	-55°C to 125°C	-55°C to 105°C	-55°C to 105°C	-55°C to 105°C	-55°C to 105°C	-55°C to 125°C	-55°C to 125°C	-55°C to 125°C	-55°C to 125°C	-55°C to 125°C	-55°C to 125°C
Flange Feature	Housing/Shell (4-40)	Housing/Shell (4-40)	Housing/Shell (Unthreaded)	Housing/Shell (M3)	Mating Side, Female Screwlock (4-40)	Housing/Shell (M3)	Mating Side, Female Screwlock (4-40)	Housing/Shell (4-40)	Mating Side, Female Screwlock (4-40)	Housing/Shell (4-40)	Housing/Shell (Unthreaded)
Shell Material Finish	Steel	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin-Nickel Plated	Steel, Tin-Nickel Plated	Steel, Tin-Nickel Plated	Steel, Tin-Nickel Plated	Steel, Tin-Nickel Plated	Steel, Tin Plated
Contact Finish	Not specified	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold or Gold, GXT™	Gold or Gold, GXT™	Gold or Gold, GXT™
Dielectric Material	Polycyclohexylenedimethylene Terephthalate (PCT)	Polyester, Glass Filled	Polyester, Glass Filled	Polyester, Glass Filled	Polyester, Glass Filled	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Contact Material	Copper Alloy	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze
Material Flammability	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant
MSL Rating	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
Packaging	Bulk	Tray	Tray	Bulk	Tray	Tray	Tray	Tray	Tray	Tray	Tray
Inventory	932 Pcs	1325 Pcs	1184 Pcs	802 Pcs	2768 Pcs	1675 Pcs	1900 Pcs	2370 Pcs	798 Pcs	920 Pcs	1186 Pcs

Engineering Selection Recommendations

All listed substitute parts maintain active product status and meet mandatory electrical and mechanical compatibility criteria. Selection between substitutes should be based on specific application requirements:

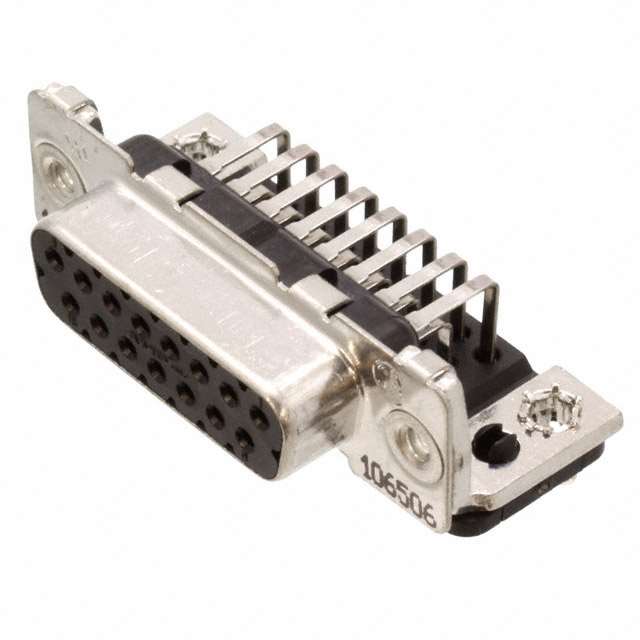

TE Connectivity AMPLIMITE HD-20 Series (1-106506-2, 106506-2, 2-106506-2, 3-106506-2): These parts offer lower current ratings (6A versus 7.5A) and reduced maximum operating temperature (105°C versus 125°C). They are suitable for applications where the HARTING part's higher current capacity and temperature range are not required. Flange configuration options include 4-40 threaded, unthreaded, M3 threaded, and female screwlock variants. All are ROHS3 compliant with MSL 1 rating.

Amphenol ICC Delta D Series (D15S13 variants): These parts provide higher voltage ratings (300V versus 100V) and maintain the full operating temperature range (-55°C to 125°C). Current ratings are 5A per contact. Multiple flange configurations are available: housing/shell with 4-40 threads, M3 threads, unthreaded, and mating-side female screwlock options. Contact finish options include standard gold and gold with GXT™ enhancement. All are RoHS compliant with MSL 1 rating.

Selection criteria:

If higher voltage tolerance is required, select Amphenol Delta D series parts
If current capacity must match or exceed 7.5A, verify application requirements as substitutes offer 5A to 6A ratings
If maximum operating temperature of 125°C is critical, select Amphenol parts or verify TE parts are acceptable at 105°C maximum
Match flange configuration to PCB mounting hole specifications
Consider packaging format (bulk versus tray) based on procurement and handling requirements

Frequently Asked Questions (FAQ)

Q: Can TE Connectivity AMPLIMITE HD-20 parts be used as direct replacements for the HARTING 09642147232?

A: Yes, within application limits. All TE parts maintain the same 15-position D-Sub receptacle configuration, shell size, right-angle through-hole solder termination, and UL94 V-0 flammability rating. However, the current rating is reduced from 7.5A to 6A, and maximum operating temperature is limited to 105°C instead of 125°C. Verify these parameters are acceptable for your application before substitution.

Q: What is the difference between the various TE 106506-2 part numbers?

A: The TE AMPLIMITE HD-20 series uses a suffix system to denote flange configuration: 1-106506-2 has 4-40 threaded housing/shell, 106506-2 has unthreaded housing/shell, 2-106506-2 has M3 threaded housing/shell, and 3-106506-2 has mating-side female screwlock (4-40). All other electrical and mechanical specifications are identical. Select based on your PCB mounting hole pattern.

Q: Are Amphenol Delta D series parts fully compatible with the HARTING connector?

A: Amphenol Delta D series parts (D15S13 variants) are electrically and mechanically compatible for 15-position D-Sub receptacle applications. They offer higher voltage rating (300V) and maintain the full -55°C to 125°C operating temperature range. Current rating is 5A per contact, which is lower than the HARTING 7.5A rating. Flange configurations vary by part number suffix. Verify current capacity and flange type match your application requirements.

Q: What does the suffix in Amphenol part numbers indicate?

A: Amphenol Delta D part numbers use a multi-character suffix system. The "A" or "B" indicates shell material finish (A = tin-nickel plated, B = tin plated). The following digit indicates flange type (4 = housing/shell, 6 = mating-side female screwlock). The letter indicates contact finish (G = gold, U = gold or gold GXT™). The final characters indicate specific finish thickness or variant. For example, D15S13A4GL00LF has tin-nickel plated shell, 4-40 threaded housing/shell flange, and gold contact finish.

Q: Can I mix and match different substitute parts in the same assembly?

A: All listed substitutes are compatible with each other at the connector interface level. However, for consistency in manufacturing, testing, and field maintenance, it is recommended to use the same part number throughout an assembly. If mixing is necessary, ensure all parts meet the most stringent requirements of your application (highest current demand, highest temperature exposure, highest voltage requirement).

Q: What packaging options are available?

A: The HARTING 09642147232 is supplied in bulk packaging. TE Connectivity AMPLIMITE HD-20 parts are available in both tray (1-106506-2, 106506-2, 3-106506-2) and bulk (2-106506-2) packaging. Amphenol Delta D series parts are supplied in tray packaging. Select packaging based on your procurement volume and handling requirements.

Q: Are all substitutes RoHS compliant?

A: Yes. The HARTING part is ROHS3 compliant. TE Connectivity parts 1-106506-2, 106506-2, and 2-106506-2 are ROHS3 compliant. TE part 3-106506-2 is RoHS compliant. All Amphenol Delta D series parts are RoHS compliant. All parts have MSL 1 (Unlimited) moisture sensitivity rating, indicating no special storage or handling requirements.
