Molex 0934451601 Equivalent & Substitute Parts

Part Overview

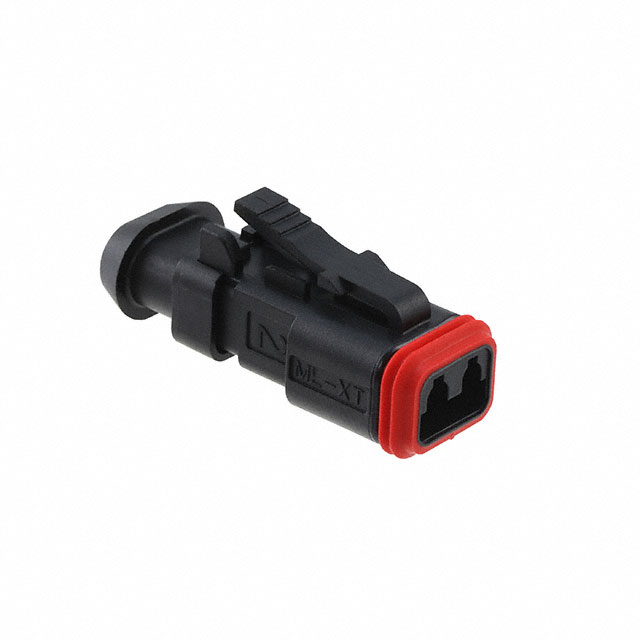

The Molex 0934451601 is a 2-position rectangular connector housing plug in black, designed for free-hanging in-line applications with crimp contact termination and latch lock fastening. This component is classified as obsolete, making equivalent and substitute parts necessary for ongoing system maintenance and new design implementations. The part features heat shrink and IP68 sealing capabilities, with contacts sold separately.

Substiute Parts

0934451601

MolexIn Stock: 10320934451601 Datasheet

Current PartRFQ

AT06-2S-SB01BLK

Amphenol Sine Systems CorpIn Stock: 961AT06-2S-SB01BLK Datasheet

DirectRFQ

DT06-2S-EP11

TE Connectivity Deutsch ConnectorsIn Stock: 12841DT06-2S-EP11 Datasheet

DirectRFQ

AT06-2S-SR01BLK

Amphenol Sine Systems CorpIn Stock: 4220AT06-2S-SR01BLK Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the Molex 0934451601 is determined by strict equivalence across the following parameters: connector type (plug), contact type (female socket), number of positions (2), number of rows (1), mounting type (free hanging in-line), contact termination method (crimp), fastening type (latch lock), and color (black). All substitute parts listed maintain these core electrical and mechanical specifications, ensuring functional compatibility in applications originally designed for the Molex 0934451601.

The substitute parts are grouped as follows:

Direct Substitutes (Electrical and Mechanical Equivalence):

• AT06-2S-SB01BLK (Amphenol Sine Systems Corp)
• DT06-2S-EP11 (TE Connectivity Deutsch Connectors)
• AT06-2S-SR01BLK (Amphenol Sine Systems Corp, manufacturer recommended)

All three parts match the core parameters of the main part and are suitable for direct replacement in applications requiring a 2-position rectangular connector plug with female socket contacts, crimp termination, and latch lock fastening.

Parameter Comparison

Engineering Selection Recommendations

All three substitute parts are active products with ROHS3 compliance, providing long-term availability and regulatory alignment compared to the obsolete Molex 0934451601.

AT06-2S-SB01BLK is a direct electrical and mechanical equivalent offering IP67 sealing with sealed construction. This part is suitable for applications requiring standard environmental protection.

DT06-2S-EP11 provides enhanced environmental protection with IP68 and IP6K9K ratings, along with a blocked gasket and shrink boot adapter. This part is recommended for applications requiring superior sealing and environmental resistance. It is available in bulk packaging with the highest inventory level (12,803 pcs).

AT06-2S-SR01BLK is the manufacturer-recommended substitute, featuring integrated strain relief in addition to the core connector specifications. This part is recommended for applications where cable strain management is a design requirement.

Selection between these three parts should be based on specific application requirements regarding environmental sealing, strain relief features, and packaging preferences.

Frequently Asked Questions (FAQ)

Q: Can AT06-2S-SB01BLK, DT06-2S-EP11, and AT06-2S-SR01BLK be used interchangeably with Molex 0934451601?

A: Yes, all three parts are electrically and mechanically equivalent to the Molex 0934451601 across the core parameters: 2-position plug connector with female socket contacts, crimp termination, latch lock fastening, and black color. Differences in sealing ratings and strain relief features do not affect basic functional compatibility.

Q: What is the difference between the three substitute parts?

A: AT06-2S-SB01BLK provides IP67 sealing. DT06-2S-EP11 offers enhanced IP68 and IP6K9K sealing with blocked gasket and shrink boot adapter. AT06-2S-SR01BLK includes integrated strain relief. Selection depends on environmental protection and mechanical support requirements for the specific application.

Q: Are all substitute parts RoHS3 compliant?

A: Yes, all three substitute parts are ROHS3 compliant, matching the compliance status of the original Molex 0934451601.

Q: What is the operating temperature range for the substitute parts?

A: All three substitute parts operate across -55°C to 125°C, providing consistent thermal performance across the substitution options.

Q: Are contacts included with these connector housings?

A: No, contacts are not included with any of these connector housings. Contacts must be sourced separately and are compatible with the crimp termination specification.

Q: Which substitute part has the best availability?

A: DT06-2S-EP11 has the highest inventory level at 12,803 pcs in stock, followed by AT06-2S-SR01BLK at 4,124 pcs and AT06-2S-SB01BLK at 914 pcs.
