Equivalent & Substitute Parts for Molex 0934451501

Part Overview

The Molex 0934451501 is a 2-position rectangular connector housing plug in black, designed for free-hanging in-line applications with crimp contact termination and latch lock fastening. This connector is classified as obsolete, making identification of active equivalent and substitute parts essential for ongoing system maintenance and new design implementations. The part features IP68 sealing and heat shrink capabilities, serving applications requiring robust environmental protection.

Substiute Parts

0934451501

MolexIn Stock: 9560934451501 Datasheet

Current PartRFQ

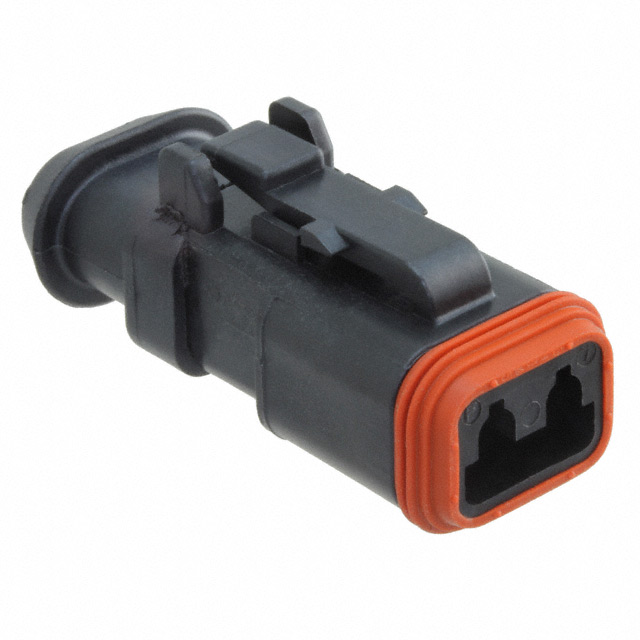

DT06-2S-CE13

TE Connectivity Deutsch ConnectorsIn Stock: 4244DT06-2S-CE13 Datasheet

DirectRFQ

AT06-2S-SR02BLK

Amphenol Sine Systems CorpIn Stock: 2646AT06-2S-SR02BLK Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Molex 0934451501 is determined by strict alignment of the following parameters: connector type (plug), contact type (female socket), number of positions (2), number of rows (1), mounting type (free hanging in-line), contact termination method (crimp), fastening type (latch lock), and color (black). Both identified substitute parts meet these core requirements and maintain RoHS3 compliance. The TE Connectivity DT06-2S-CE13 provides direct functional equivalence with enhanced environmental sealing (IP6K9K). The Amphenol Sine Systems AT06-2S-SR02BLK offers strain relief as an additional feature while maintaining core electrical and mechanical compatibility.

Parameter Comparison

Engineering Selection Recommendations

Both substitute parts are active products with current manufacturing support, addressing the obsolescence status of the Molex 0934451501. Selection between the two active alternatives depends on application-specific requirements:

The TE Connectivity DT06-2S-CE13 provides enhanced environmental protection through IP6K9K rating and reduced wire seals, suitable for high-pressure wash and severe moisture environments. This part maintains full compliance with ROHS3 and REACH requirements.

The Amphenol Sine Systems AT06-2S-SR02BLK incorporates strain relief as a standard feature, providing mechanical stress protection at the wire termination point. This part also maintains ROHS3 compliance with MSL rating of 1 (unlimited), indicating no moisture sensitivity constraints during storage and handling.

Both parts support the same operating temperature range (-55°C to 125°C) and maintain identical core connector specifications. Selection should be based on specific environmental conditions and mechanical stress requirements of the target application.

Frequently Asked Questions (FAQ)

Q: Can the TE Connectivity DT06-2S-CE13 directly replace the Molex 0934451501 in existing assemblies?

A: Yes. Both parts share identical connector type, contact configuration, position count, mounting method, termination type, and fastening mechanism. The DT06-2S-CE13 is a direct functional equivalent with enhanced environmental sealing capabilities.

Q: What is the primary difference between the TE Connectivity and Amphenol substitute options?

A: The TE Connectivity DT06-2S-CE13 emphasizes environmental sealing with IP6K9K rating and reduced wire seals. The Amphenol AT06-2S-SR02BLK emphasizes mechanical protection through integrated strain relief. Both maintain core electrical and mechanical compatibility with the original part.

Q: Are there any compliance or certification differences between the three parts?

A: All three parts are ROHS3 compliant and REACH unaffected. The Amphenol part carries an MSL rating of 1 (unlimited), indicating no moisture sensitivity restrictions. The Molex original part lists MSL as not applicable. The TE Connectivity part also lists MSL as not applicable.

Q: Do the substitute parts require different contact specifications?

A: No. Both substitute parts maintain the same contact type (female socket) and termination method (crimp) as the original Molex part. Existing contact inventory remains compatible.

Q: What packaging formats are available for the substitute parts?

A: The TE Connectivity DT06-2S-CE13 is available in bulk packaging. The Amphenol AT06-2S-SR02BLK is also available in bulk packaging. Verify specific packaging requirements with your procurement process.
