Molex 0934451104 Rectangular Connector Plug Housing - Equivalent & Substitute Parts

Part Overview

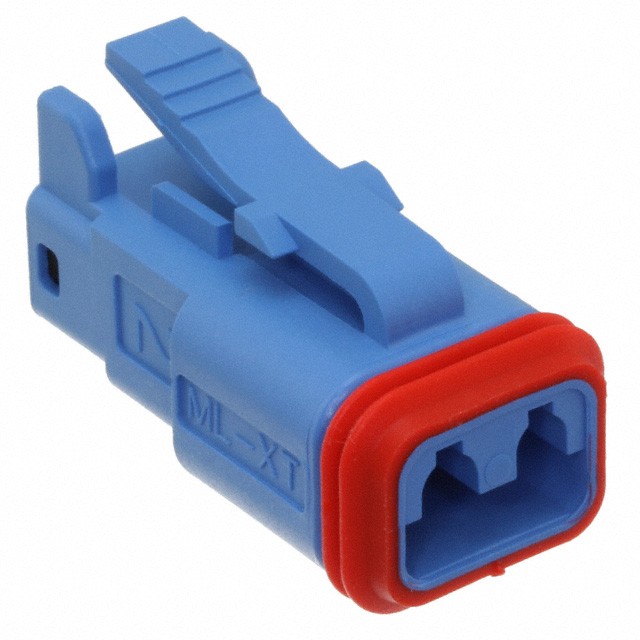

The Molex 0934451104 is a 2-position rectangular connector plug housing in blue, designed for free-hanging in-line applications with crimp contact termination and latch lock fastening. This component is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing system support and procurement planning. The part operates with IP68 environmental sealing and is ROHS3 compliant.

Substiute Parts

0934451104

MolexIn Stock: 8460934451104 Datasheet

Current PartRFQ

AT06-2S-OMBLU

Amphenol Sine Systems CorpIn Stock: 1485AT06-2S-OMBLU Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Molex 0934451104 is determined by the following critical parameters:

• Connector type (Plug housing)
• Contact type (Female socket)
• Number of positions (2)
• Number of rows (1)
• Mounting configuration (Free hanging in-line)
• Contact termination method (Crimp)
• Fastening mechanism (Latch lock)
• Color specification (Blue)
• Environmental rating (IP67 or higher)
• Regulatory compliance (ROHS3)

The Amphenol Sine Systems Corp AT06-2S-OMBLU satisfies all these criteria, providing functional equivalence for direct substitution in applications requiring 2-position rectangular connector plug housings with the specified mechanical and electrical characteristics.

Parameter Comparison

Engineering Selection Recommendations

The Amphenol Sine Systems Corp AT06-2S-OMBLU is the designated manufacturer-recommended substitute for the obsolete Molex 0934451104. Both components maintain ROHS3 compliance and REACH unaffected status, satisfying regulatory requirements for equivalent applications.

The substitute part is currently in active production with 1470 units available in inventory, ensuring supply chain continuity. The environmental rating differential (IP67 versus IP68) reflects the substitute's specification; applications requiring IP68 sealing must be evaluated against the AT06-2S-OMBLU's IP67 capability.

Both connectors share identical mechanical interfaces: 2-position plug housing with female socket contacts, crimp termination, latch lock fastening, and free-hanging in-line mounting. The substitute provides documented operating temperature range (-55°C to 125°C) and material composition (glass-filled polyamide), supporting design verification and thermal analysis requirements.

Frequently Asked Questions (FAQ)

Q: Can the Amphenol AT06-2S-OMBLU directly replace the Molex 0934451104 in existing assemblies?

A: Yes. Both components share identical connector type, contact configuration, position count, row arrangement, mounting method, termination type, and fastening mechanism. Physical and electrical interfaces are compatible for direct substitution.

Q: What is the significance of the IP67 versus IP68 environmental rating difference?

A: IP68 provides continuous immersion capability, while IP67 provides temporary immersion protection. Applications requiring sustained submersion must evaluate whether IP67 meets operational requirements.

Q: Are contacts included with either connector housing?

A: No. Both the Molex 0934451104 and Amphenol AT06-2S-OMBLU are supplied as housings only. Contacts must be procured separately and crimped according to manufacturer specifications.

Q: What packaging format is available for the substitute part?

A: The Amphenol AT06-2S-OMBLU is supplied in bulk packaging, differing from the original part's unspecified packaging format.

Q: Are both parts suitable for high-temperature applications?

A: The Amphenol substitute specifies an operating temperature range of -55°C to 125°C. The original Molex part's temperature rating is not documented in available specifications.
