Equivalent & Substitute Parts for Molex 0934444101

Part Overview

The Molex 0934444101 is a 6-position rectangular connector receptacle housing in the ML-XT 93444 series, designed for free-hanging in-line applications with crimp termination and latch holder fastening. This part is classified as obsolete, making equivalent substitute parts necessary for ongoing system maintenance and new design implementations. The connector features IP68 sealing capability and is ROHS3 compliant with unlimited moisture sensitivity rating.

Key Parameters

Parameter	Value
Manufacturer Part Number	0934444101
Manufacturer	Molex
Category	Rectangular Connectors
Connector Type	Receptacle
Contact Type	Male Pin
Number of Positions	6
Number of Rows	2
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Holder
Color	Black
Features	IP68
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)
Product Status	Obsolete

Substitute Part Grouping Explanation

Substitution for the Molex 0934444101 is determined by strict equivalence across the following critical parameters:

Connector Type: Receptacle
Contact Type: Male Pin
Number of Positions: 6
Mounting Type: Free Hanging (In-Line)
Contact Termination: Crimp
Fastening Type: Latch Holder
Color: Black
RoHS Compliance: ROHS3 Compliant

The substitute parts identified are sourced from Amphenol Sine Systems Corp and TE Connectivity Deutsch Connectors. All substitutes maintain the core functional requirements of the original Molex part while offering active product status and improved feature sets including enhanced sealing and protective covers in certain variants.

Parameter Comparison

Parameter	Molex 0934444101	AT04-6P-RD01BLK	AT04-6P-MM01BLK	DT04-6P-CE02	DT04-6P-CE03
Manufacturer	Molex	Amphenol Sine Systems Corp	Amphenol Sine Systems Corp	TE Connectivity Deutsch Connectors	TE Connectivity Deutsch Connectors
Connector Type	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Number of Positions	6	6	6	6	6
Number of Rows	2	3	3	3	3
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Contact Termination	Crimp	Crimp	Crimp	Crimp	Crimp
Fastening Type	Latch Holder	Latch Holder	Latch Holder	Latch Holder	Latch Holder
Color	Black	Black	Black	Black	Black
Operating Temperature	Not Specified	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
Features	IP68	Sealed	Cap (Cover), Sealed	IP68, IP6K9K, Reduced Wire Seals	Cap (Cover), IP68, IP6K9K, Reduced Wire Seals
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Product Status	Obsolete	Active	Active	Active	Active

Engineering Selection Recommendations

All identified substitute parts maintain ROHS3 compliance and active product status, ensuring long-term availability and regulatory alignment. The Amphenol Sine Systems Corp variants (AT04-6P-RD01BLK and AT04-6P-MM01BLK) provide sealed housing with thermoplastic insulation and operate across the -55°C to 125°C temperature range. The AT04-6P-MM01BLK includes an integrated protective cap cover, offering enhanced environmental protection.

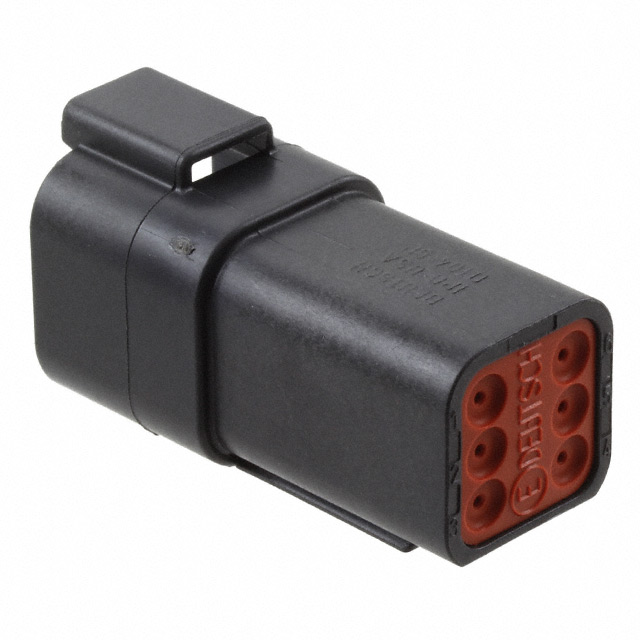

The TE Connectivity Deutsch Connectors variants (DT04-6P-CE02 and DT04-6P-CE03) feature polyamide glass-filled insulation with IP68 and IP6K9K ratings, providing superior protection against high-pressure water jets. The DT04-6P-CE03 includes a protective cap cover in addition to the enhanced sealing features. Both TE variants utilize reduced wire seals for improved reliability.

Selection between these substitutes depends on specific application requirements regarding environmental sealing, protective covers, and insulation material preferences. All parts are functionally equivalent for the core 6-position receptacle housing application.

Frequently Asked Questions (FAQ)

Q: Can AT04-6P-RD01BLK directly replace Molex 0934444101 in existing assemblies?

A: Yes. Both parts share identical connector type, contact type, position count, mounting configuration, termination method, and fastening mechanism. The AT04-6P-RD01BLK is functionally equivalent for receptacle housing applications.

Q: What is the difference between DT04-6P-CE02 and DT04-6P-CE03?

A: The DT04-6P-CE03 includes an integrated protective cap cover, while DT04-6P-CE02 does not. Both share identical sealing ratings (IP68, IP6K9K) and reduced wire seal features. Selection depends on whether protective cover functionality is required.

Q: Why do substitute parts show 3 rows instead of 2 rows like the original?

A: The row configuration difference reflects the physical layout of the substitute housings. All parts maintain 6-position capacity with identical electrical and mechanical interface characteristics. The row arrangement does not affect functional compatibility for crimp-terminated male pin contacts.

Q: Are all substitute parts ROHS3 compliant?

A: Yes. All identified substitutes (AT04-6P-RD01BLK, AT04-6P-MM01BLK, DT04-6P-CE02, and DT04-6P-CE03) are ROHS3 compliant, matching the regulatory status of the original Molex 0934444101.

Q: What is the operating temperature range for substitute parts?

A: Amphenol and TE Connectivity substitutes operate across -55°C to 125°C. The original Molex part does not specify an operating temperature range in the provided data.

Q: Do substitute parts include contacts?

A: No. All substitute parts are housings only. Contacts must be sourced separately, consistent with the original Molex 0934444101 specification.
