Molex 0934050508 Rectangular Connector - Equivalent & Substitute Parts

Part Overview

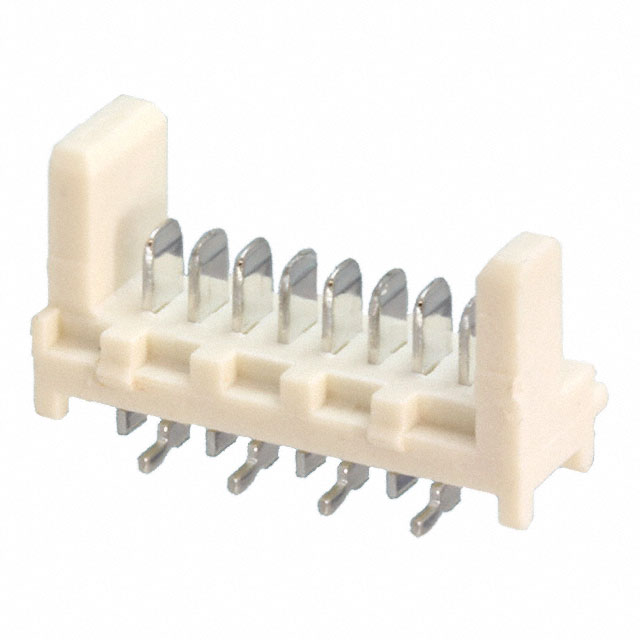

The Molex 0934050508 is a surface mount rectangular connector header with 8 positions at 1.27mm pitch, designed for board-to-cable/wire applications. This component features shrouded 2-wall construction with push-pull fastening and solder termination. The part is classified as obsolete, making identification of active equivalent components essential for ongoing production and maintenance applications. Substitute parts must maintain electrical and mechanical compatibility while offering current availability and active product status.

Key Parameters

Parameter	Value
Connector Type	Header
Contact Type	Male Blade
Number of Positions	8
Pitch - Mating	0.050" (1.27mm)
Mounting Type	Surface Mount
Shrouding	Shrouded - 2 Wall
Fastening Type	Push-Pull
Termination	Solder
Current Rating	1.2A
Voltage Rating	250V
Operating Temperature	-40°C ~ 105°C
Contact Finish - Mating	Tin
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

Substitute Part Grouping Explanation

Substitution eligibility for the Molex 0934050508 is determined by strict equivalence across the following critical parameters:

Connector type (Header)
Contact type (Male Blade)
Number of positions (8)
Pitch specification (0.050" / 1.27mm)
Mounting method (Surface Mount)
Shrouding configuration (Shrouded - 2 Wall)
Fastening mechanism (Push-Pull)
Termination method (Solder)
Electrical ratings (1.2A current, 250V voltage)
Contact finish (Tin)
Insulation material (Polyamide/Nylon, Glass Filled)
Flammability compliance (UL94 V-0)
RoHS compliance (ROHS3)

The Molex 0908140508 meets all substitution criteria as an active product within the Picoflex PF-50 series, offering identical electrical and mechanical specifications with current manufacturing availability.

Parameter Comparison

Parameter	0934050508 (Main Part)	0908140508 (Substitute)	Compatibility
Manufacturer	Molex	Molex	Match
Connector Type	Header	Header	Match
Contact Type	Male Blade	Male Blade	Match
Number of Positions	8	8	Match
Pitch - Mating	0.050" (1.27mm)	0.050" (1.27mm)	Match
Number of Rows	1	1	Match
Mounting Type	Surface Mount	Surface Mount	Match
Shrouding	Shrouded - 2 Wall	Shrouded - 2 Wall	Match
Fastening Type	Push-Pull	Push-Pull	Match
Termination	Solder	Solder	Match
Contact Length - Mating	0.085" (2.15mm)	0.085" (2.15mm)	Match
Contact Shape	Rectangular	Rectangular	Match
Contact Finish - Mating	Tin	Tin	Match
Contact Finish Thickness - Mating	118.1µin (3.00µm)	118.1µin (3.00µm)	Match
Contact Finish - Post	Tin	Tin	Match
Insulation Material	Polyamide (PA), Nylon, Glass Filled	Polyamide (PA), Nylon, Glass Filled	Match
Insulation Color	Natural	Natural	Match
Current Rating (Amps)	1.2A	1.2A	Match
Voltage Rating	250V	250V	Match
Material Flammability Rating	UL94 V-0	UL94 V-0	Match
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	Match
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)	Match
REACH Status	REACH Unaffected	REACH Unaffected	Match
ECCN	EAR99	EAR99	Match
HTSUS	8536.69.4040	8536.69.4040	Match
Product Status	Obsolete	Active	Substitute is active
Insulation Height	0.203" (5.16mm)	0.252" (6.40mm)	Substitute is taller
Packaging	Not specified	Tape & Reel (TR)	Substitute in standard packaging

Engineering Selection Recommendations

The Molex 0908140508 is the direct substitute for the obsolete Molex 0934050508. Both components are manufactured by Molex and maintain identical electrical specifications, mechanical dimensions for mating interfaces, contact configurations, and compliance certifications.

The substitute part offers the following advantages:

Active product status with current manufacturing availability
Identical electrical ratings (1.2A, 250V)
Identical contact pitch (1.27mm) and mating contact length (2.15mm)
Identical shrouding, fastening, and termination specifications
Full compliance with ROHS3 and REACH requirements
UL94 V-0 flammability rating maintained
Standard Tape & Reel packaging for production environments

The insulation height difference (0.203" vs. 0.252") reflects design evolution within the Picoflex series and does not affect electrical or mechanical compatibility for standard board-to-cable applications. Both components are rated for automotive, general purpose, industrial, and medical applications.

Frequently Asked Questions (FAQ)

Q: Can the Molex 0908140508 be used as a direct replacement for the 0934050508?

A: Yes. Both components share identical connector type, contact configuration, pitch specification, electrical ratings, and compliance certifications. The 0908140508 is the active equivalent within the Picoflex series.

Q: What is the difference in insulation height between these parts?

A: The 0934050508 has an insulation height of 0.203" (5.16mm), while the 0908140508 measures 0.252" (6.40mm). This difference reflects design updates within the product line and does not affect standard board-to-cable mating applications.

Q: Are both parts RoHS and REACH compliant?

A: Yes. Both the 0934050508 and 0908140508 are ROHS3 compliant and REACH unaffected, meeting current environmental and regulatory requirements.

Q: What packaging is available for the substitute part?

A: The 0908140508 is supplied in Tape & Reel (TR) packaging, suitable for automated assembly and production environments.

Q: Do these connectors support the same current and voltage ratings?

A: Yes. Both parts are rated for 1.2A current and 250V voltage, with identical tin contact finish and contact finish thickness specifications.

Q: Are there any application restrictions for the substitute part?

A: No. The 0908140508 is rated for automotive, general purpose, industrial, and medical applications, matching the application scope of the original part.

Q: What is the moisture sensitivity level for these connectors?

A: Both parts have an MSL rating of 1 (Unlimited), indicating no moisture sensitivity restrictions for storage or handling.
