HARTING 09281482903 DIN 41612 48-Position Backplane Connector Header

Part Overview

The HARTING 09281482903 is a 48-position DIN 41612 connector header with male pins, gold-palladium contact finish, and through-hole solder termination. This component is classified as Active product status with full inventory availability (769 pcs in stock). Alternative equivalent and substitute parts are necessary to support design flexibility, supply chain continuity, and application-specific requirements such as connector type variation (header vs. plug), termination method options, and manufacturer sourcing preferences.

Key Parameters

Parameter	Value
Manufacturer Part Number	09281482903
Manufacturer	HARTING
Category	Backplane Connectors
Series	DIN 41612
Connector Type	Header, Male Pins
Number of Positions	48
Pitch	0.100" (2.54mm)
Number of Rows	3
Style	2R
Mounting Type	Through Hole
Termination	Solder
Contact Finish	Gold-Palladium
Operating Temperature Range	-55°C to 125°C
Current Rating	2A
Material Flammability Rating	UL94 V-0
Material - Insulation	Polybutylene Terephthalate (PBT), Glass Filled
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)
Product Status	Active

Substitute Part Grouping Explanation

Substitution eligibility for the HARTING 09281482903 is determined by the following critical parameters:

Core Compatibility Parameters:

Number of Positions: 48 (exact match required)
Pitch: 0.100" (2.54mm) (exact match required)
Number of Rows: 3 (exact match required)
Mounting Type: Through Hole (exact match required)
Operating Temperature Range: -55°C to 125°C (minimum requirement)
Contact Finish: Gold or Gold-Palladium (acceptable variation)
Material Flammability Rating: UL94 V-0 (minimum requirement)
RoHS Status: ROHS3 Compliant (minimum requirement)

Allowable Variations:

Connector Type: Header or Plug configurations are functionally interchangeable in backplane applications
Style: 2R (main part) vs. R/2 (1/2 R) substitute parts represent equivalent DIN 41612 configurations
Termination Method: Solder or Press-Fit are both acceptable through-hole termination approaches
Series Designation: DIN 41612, Eurocard, and 8609 series represent equivalent standardized backplane connector families
Current Rating: Variations acceptable if equal to or greater than 2A requirement
Insulation Material: PBT, Polyester, and Polymer Thermoplastic formulations are functionally equivalent

The substitute parts listed below meet all core compatibility parameters and allowable variations.

Parameter Comparison

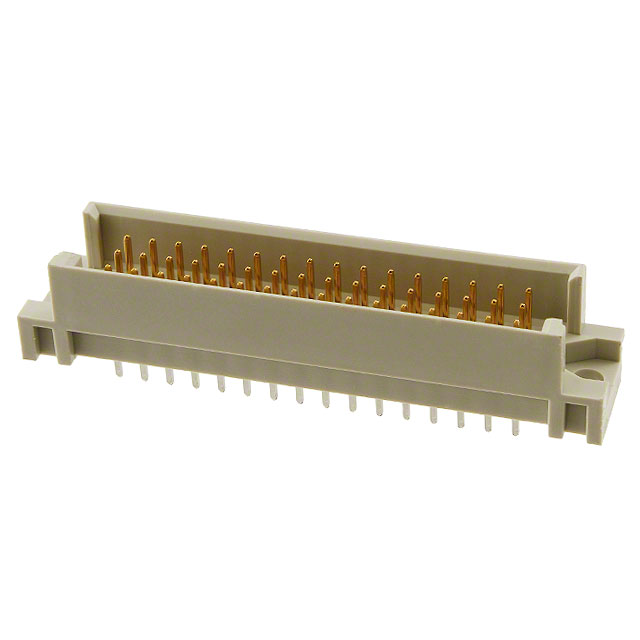

Parameter	HARTING 09281482903	TE 2-1393659-6	TE 3-1393659-9	TE 5650479-5	TE 5650918-5	Amphenol 86093487614755ELF
Connector Type	Header, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Header, Male Pins
Number of Positions	48	48	48	48	48	48
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	3	3	3	3	3	3
Style	2R	R/2 (1/2 R)	R/2 (1/2 R)	R/2 (1/2 R)	R/2 (1/2 R)	R/2 (1/2 R)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Solder	Press-Fit	Solder
Contact Finish	Gold-Palladium	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold	Gold	Gold
Operating Temperature Range	-55°C to 125°C	-55°C to 125°C	-55°C to 125°C	-55°C to 125°C	-55°C to 125°C	-55°C to 125°C
Current Rating	2A	Not specified	Not specified	Not specified	Not specified	1.5A
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	Not specified	UL94 V-0	UL94 V-0
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	RoHS Compliant	RoHS Compliant
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
Product Status	Active	Active	Active	Active	Active	Active

Engineering Selection Recommendations

All listed substitute parts maintain Active product status and meet or exceed the compliance and certification requirements of the HARTING 09281482903. Selection among substitutes should be based on the following criteria:

Header Configuration (Direct Type Match): The Amphenol ICC 86093487614755ELF provides header-type connector configuration identical to the main part. This option is preferred when connector type consistency is required within the assembly. Current rating of 1.5A is lower than the main part specification of 2A; applications requiring 2A current capacity should verify compatibility with this substitute.

Plug Configuration (TE Connectivity Options): The TE Connectivity parts (2-1393659-6, 3-1393659-9, 5650479-5, 5650918-5) provide plug-type connector configuration. These are suitable for applications where plug connectors are functionally equivalent to headers. The TE 5650918-5 offers press-fit termination as an alternative to solder termination, providing assembly flexibility. All TE Connectivity parts are ROHS3 compliant and maintain the required operating temperature range.

Packaging and Inventory Considerations: All substitute parts are available in Active status with adequate inventory. TE Connectivity 3-1393659-9 offers the highest inventory level (1353 pcs), followed by TE 5650479-5 (1404 pcs) and Amphenol 86093487614755ELF (1339 pcs).

Frequently Asked Questions (FAQ)

Q: Can TE Connectivity plug connectors replace the HARTING header connector? A: Yes. In backplane connector applications, plug and header configurations are functionally interchangeable when all other parameters (position count, pitch, row configuration, mounting type, and operating temperature) are identical. The TE Connectivity plug parts meet all these requirements.

Q: What is the difference between Style 2R and Style R/2 (1/2 R)? A: Both designations represent equivalent DIN 41612 backplane connector configurations with 3 rows and 48 positions at 0.100" pitch. The style designation reflects different standardization references but provides identical electrical and mechanical compatibility.

Q: Does the Amphenol 86093487614755ELF meet the 2A current rating requirement? A: The Amphenol part is rated at 1.5A, which is lower than the main part specification of 2A. Applications requiring 2A current capacity should verify that 1.5A is acceptable for their specific circuit requirements before substitution.

Q: What is the difference between solder and press-fit termination? A: Both are through-hole termination methods. Solder termination requires manual or automated soldering during assembly. Press-fit termination uses mechanical insertion without soldering. The TE 5650918-5 offers press-fit termination as an alternative assembly approach.

Q: Are all substitute parts RoHS compliant? A: Yes. All substitute parts are RoHS compliant. The HARTING main part and most substitutes are ROHS3 compliant. The TE 5650918-5 and Amphenol 86093487614755ELF are RoHS compliant. All meet regulatory requirements for lead-free and restricted substance compliance.

Q: Can I mix header and plug connectors in the same assembly? A: Yes, provided the mating connector is appropriately configured. Header connectors mate with plug connectors. Verify that your PCB layout and connector mounting positions accommodate the selected connector type.

Q: What is the moisture sensitivity level, and why is it important? A: All parts are rated MSL 1 (Unlimited), indicating no moisture sensitivity restrictions. These connectors do not require special moisture-controlled storage or handling procedures.
