HARTING 09200030426 Hood Connector Top Entry PG11 3A – Equivalent & Substitute Parts

Part Overview

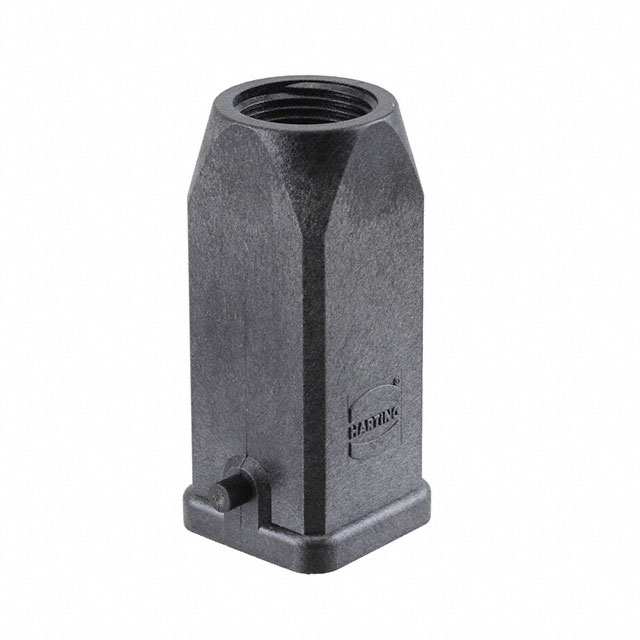

The HARTING 09200030426 is a heavy duty hood connector with top entry configuration, PG11 thread size, and 3A size rating. This connector is designed for industrial applications requiring IP44 ingress protection and operates across a temperature range of -40°C to 125°C. The part is classified as obsolete, making identification of active equivalent substitutes essential for procurement and system continuity.

Substiute Parts

09200030426

HARTINGIn Stock: 70409200030426 Datasheet

Current PartRFQ

09200030427

HARTINGIn Stock: 74409200030427 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the HARTING 09200030426 is determined by strict equivalence across the following critical parameters:

• Connector Type & Style: Hood connector with top entry configuration
• Size Rating: 3A
• Thread Size: PG11
• Ingress Protection: IP44
• Operating Temperature Range: -40°C to 125°C
• Housing Material & Color: Thermoplastic, black
• Locking Mechanism: Locking clip on base bottom
• Series Compatibility: Han® A series
• Regulatory Compliance: ROHS3 compliant, REACH unaffected

The substitute part must maintain identical mechanical and electrical specifications to ensure direct replacement capability without design modification or system re-qualification.

Parameter Comparison

Engineering Selection Recommendations

The HARTING 09200030427 is the direct equivalent substitute for the obsolete 09200030426. Both parts are manufactured by HARTING within the Han® A series and maintain identical mechanical, electrical, and environmental specifications. The substitute part is currently in active production status, ensuring long-term availability and supply chain continuity.

Both parts satisfy ROHS3 compliance and REACH unaffected status, meeting current regulatory requirements for industrial applications. The transition from the obsolete part number to the active substitute requires no design changes, re-qualification, or system modifications, as all functional and dimensional parameters remain equivalent.
