HARTING 09185065323 Equivalent & Substitute Parts

Part Overview

The HARTING 09185065323 is a rectangular connector header, right-angle mounted, with 6 positions at 2.54mm pitch. This through-hole component features shrouded 4-wall design with solder termination and latch holder fastening. The part is currently active in production with 936 units in stock. Equivalent and substitute parts are identified based on matching electrical and mechanical specifications within the rectangular connector category, enabling design flexibility and supply chain continuity.

Key Parameters

Parameter	Value
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	6
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole, Right Angle
Shrouding	Shrouded - 4 Wall
Termination	Solder
Contact Finish - Mating	Gold
Insulation Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Substitute Part Grouping Explanation

Substitute parts for the HARTING 09185065323 are qualified based on the following critical parameters:

Connector Type & Contact Configuration: Header with male pins, 6 positions, 2 rows
Pitch Specification: 0.100" (2.54mm) mating pitch and row spacing
Mounting & Orientation: Through-hole, right-angle mounting
Shrouding & Fastening: Shrouded 4-wall design with mechanical fastening
Termination Method: Solder termination
Contact Finish: Gold-plated mating surface
Compliance: ROHS3 compliance and UL94 V-0 flammability rating

The following parts meet these core substitution criteria:

2-1761605-1 (TE Connectivity): Right-angle header, matching pitch and position count, push-pull fastening alternative
2-1761679-1 (TE Connectivity): Vertical header variant, same pitch and position count, alternative mounting orientation
30306-5002HB (3M): Right-angle header, matching pitch and position count, push-pull fastening

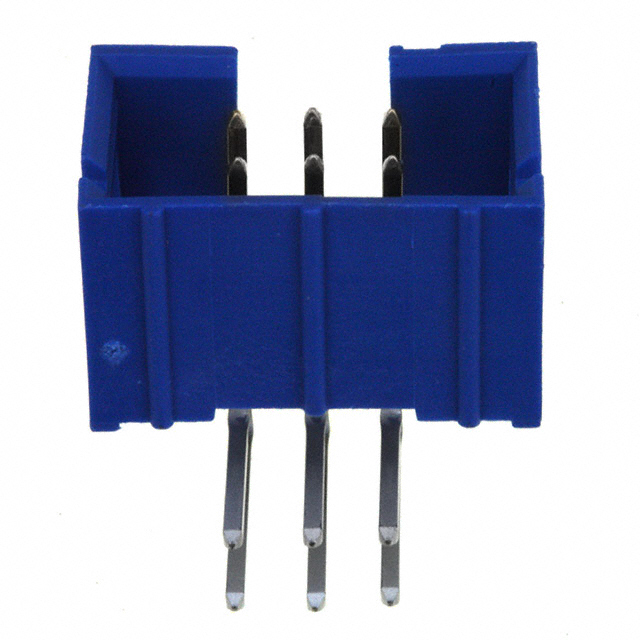

75867-131LF (Amphenol ICC): Right-angle header, matching pitch and position count, push-pull fastening

Parameter Comparison

Parameter	HARTING 09185065323	TE 2-1761605-1	TE 2-1761679-1	3M 30306-5002HB	Amphenol 75867-131LF
Connector Type	Header	Header	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Positions	6	6	6	6	6
Number of Rows	2	2	2	2	2
Row Spacing - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole	Through Hole, Right Angle	Through Hole, Right Angle
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall
Termination	Solder	Solder	Solder	Solder	Solder
Contact Finish - Mating	Gold	Gold	Gold	Gold	Gold, GXT™
Contact Material	Copper Alloy	Phosphor Bronze	Phosphor Bronze	Brass	Phosphor Bronze
Insulation Material	PBT, Glass Filled	PBT	PBT	PBT, Polyester, Glass Filled	Thermoplastic, Glass Filled
Operating Temperature	-55°C ~ 125°C	-65°C ~ 105°C	Not specified	-55°C ~ 105°C	Not specified
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	RoHS Compliant	RoHS Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)

Engineering Selection Recommendations

All substitute parts listed maintain active product status and meet UL94 V-0 flammability requirements and RoHS compliance standards. Selection among these equivalents depends on specific application constraints:

TE Connectivity 2-1761605-1: Right-angle configuration with push-pull fastening. Operating temperature range of -65°C to 105°C is narrower than the main part. ROHS3 compliant with 2172 units in stock.

TE Connectivity 2-1761679-1: Vertical mounting orientation differs from the main part's right-angle design. Same pitch and position configuration. ROHS3 compliant with 2727 units in stock. Operating temperature not specified.

3M 30306-5002HB: Right-angle configuration with push-pull fastening. Operating temperature range of -55°C to 105°C aligns with the main part's lower limit. RoHS compliant with 2430 units in stock.

Amphenol ICC 75867-131LF: Right-angle configuration with push-pull fastening. Operating temperature range not specified. RoHS compliant with 1417 units in stock. REACH status indicates affected substances.

Frequently Asked Questions (FAQ)

Q: Can TE Connectivity 2-1761679-1 be used as a direct replacement for the HARTING 09185065323?

A: The TE 2-1761679-1 shares identical pitch, position count, and shrouding specifications but features vertical through-hole mounting instead of right-angle. Direct substitution is not possible without PCB layout modification.

Q: What is the primary difference between the HARTING part and the TE 2-1761605-1?

A: Both are right-angle headers with matching pitch and position configuration. The TE part uses push-pull fastening instead of latch holder fastening and has a narrower operating temperature range (-65°C to 105°C versus -55°C to 125°C).

Q: Are all substitute parts ROHS3 compliant?

A: TE Connectivity parts (2-1761605-1 and 2-1761679-1) are ROHS3 compliant. The 3M 30306-5002HB and Amphenol ICC 75867-131LF are RoHS compliant but not specifically ROHS3 certified.

Q: Which substitute part has the highest inventory availability?

A: TE Connectivity 2-1761679-1 has the highest inventory with 2727 units in stock, followed by 3M 30306-5002HB with 2430 units.

Q: Do all parts use the same contact material?

A: No. The HARTING part uses copper alloy contacts, while TE Connectivity parts use phosphor bronze, 3M uses brass, and Amphenol ICC uses phosphor bronze. All maintain gold-plated mating surfaces.

Q: What is the impact of different fastening types on compatibility?

A: The HARTING part uses latch holder fastening, while all substitute parts use push-pull fastening. This affects mating connector compatibility and must be verified against the mating connector specification.
