HARTING 09153000431 Equivalent & Substitute Parts

Part Overview

The HARTING 09153000431 is a modular connector plug designed for 8p8c (RJ45, Ethernet) applications with shielded construction and Cat6 rating. This component features a circular threaded coupling, IDC termination, and IP65/IP67 ingress protection suitable for industrial networking environments. The part is classified as obsolete, necessitating identification of active equivalent components to maintain supply chain continuity and system compatibility.

Substiute Parts

09153000431

HARTINGIn Stock: 85309153000431 Datasheet

Current PartRFQ

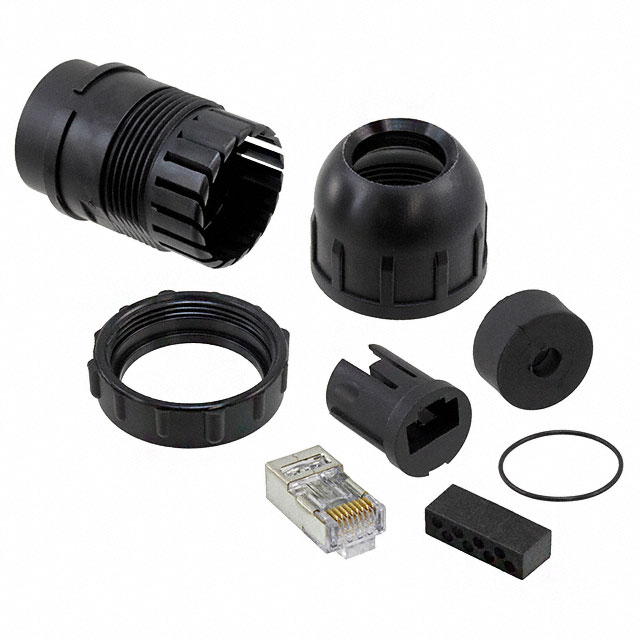

DCC-RJ6ST-310

Conxall/SwitchcraftIn Stock: 836DCC-RJ6ST-310 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the HARTING 09153000431 is determined by the following critical parameters:

Functional Equivalence Parameters:

• Connector type: Plug configuration
• Contact arrangement: 8p8c (RJ45, Ethernet) position
• Shielding requirement: Shielded construction
• Performance rating: Cat6 capability
• Coupling mechanism: Circular threaded coupling
• Cable compatibility: Round cable, solid or stranded wires

Electrical & Environmental Parameters:

• Ingress protection: IP67 minimum (IP65/IP67 range acceptable)
• Voltage rating: 125V minimum
• Current rating: 1.5 A minimum
• Compliance: ROHS3 and REACH requirements

The substitute part DCC-RJ6ST-310 meets these criteria through equivalent functional design, matching connector topology, shielded construction, Cat6 rating, and circular threaded coupling. Both parts support identical cable types and maintain required environmental protection ratings.

Parameter Comparison

Engineering Selection Recommendations

The DCC-RJ6ST-310 serves as the active equivalent for the obsolete HARTING 09153000431. Both components satisfy the core functional requirements: 8p8c shielded modular connector plug with Cat6 rating, circular threaded coupling, and round cable compatibility.

The substitute part exceeds the original specification in voltage rating (1000V versus 125V) and maintains equivalent ingress protection at IP67. Both parts are ROHS3 compliant and REACH unaffected, meeting current regulatory requirements.

The primary dimensional difference is connector length: the substitute measures 2.035" (51.70mm) compared to the original 2.795" (71.00mm). This shorter profile may require mechanical validation in space-constrained applications but does not affect electrical or functional compatibility for standard Ethernet installations.

Frequently Asked Questions (FAQ)

Q: Can DCC-RJ6ST-310 directly replace HARTING 09153000431 in existing installations?

A: Yes, for standard 8p8c shielded Ethernet applications. Both connectors support identical cable types, maintain Cat6 performance, and feature circular threaded coupling. Verify mechanical fit in your specific enclosure due to the 0.76" (19.3mm) length difference.

Q: What are the key compatibility criteria for this substitution?

A: Compatibility is determined by: 8p8c contact arrangement, shielded construction, Cat6 rating, circular threaded coupling, round cable support, and IP67 ingress protection minimum. Both parts meet these requirements.

Q: Does the voltage rating difference affect compatibility?

A: No. The substitute part's 1000V rating exceeds the original 125V specification, providing additional safety margin. This represents an improvement for the application.

Q: Are there termination differences between these parts?

A: The HARTING part specifies IDC termination, while the substitute part does not list a specific termination method in the provided data. Verify termination compatibility with your cable assembly process.

Q: Do both parts meet current compliance standards?

A: Yes. Both the HARTING 09153000431 and DCC-RJ6ST-310 are ROHS3 compliant and REACH unaffected, meeting current regulatory requirements for electronic components.
