HARTING 09152122702 Circular Connector Insert - Equivalent & Substitute Parts

Part Overview

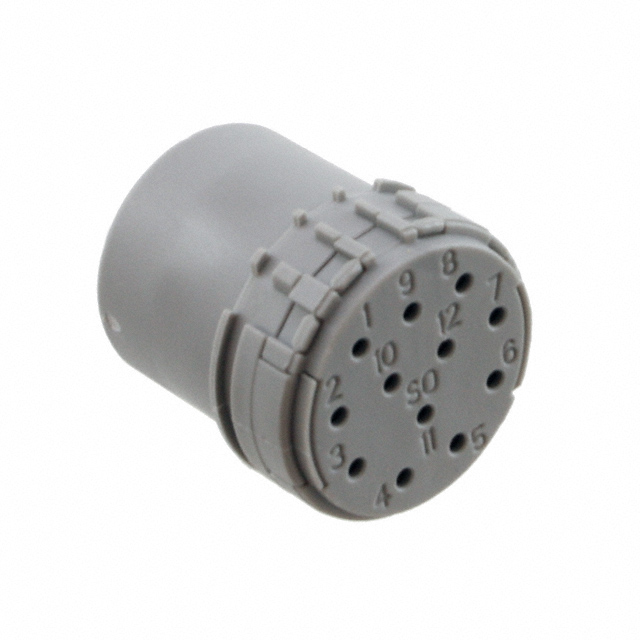

The HARTING 09152122702 is a 12-position circular connector insert designed for female sockets within the Han® R23 series. This component functions as an insert-only assembly, requiring integration with a compatible shell housing. The part is classified as obsolete, necessitating identification of active alternative components that maintain functional and electrical compatibility for ongoing applications and new designs.

Substiute Parts

09152122702

HARTINGIn Stock: 76609152122702 Datasheet

Current PartRFQ

09151123101

HARTINGIn Stock: 98109151123101 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the HARTING 09152122702 is determined by the following critical parameters:

Primary Compatibility Criteria:

• Number of positions: 12
• Connector type: Insert for female sockets
• Contact type: Crimp
• Contact shape: Circular
• Shielding configuration: Unshielded
• Manufacturer: HARTING (maintaining series ecosystem compatibility)

Secondary Compatibility Criteria:

• Operating temperature range capability
• Insert material composition
• RoHS and REACH compliance status
• Moisture sensitivity level

The substitute part HARTING 09151123101 maintains all primary compatibility criteria while operating within an extended temperature range (-40°C to 125°C versus -40°C to 115°C). The insert material differs (Polyamide/Nylon versus PBT), which is acceptable as both materials meet the UL94 V-0 flammability requirement and maintain equivalent electrical performance for this connector class.

Parameter Comparison

Engineering Selection Recommendations

The HARTING 09151123101 serves as the active substitute for the obsolete HARTING 09152122702. Both components maintain identical electrical and mechanical interface specifications for 12-position circular connector applications. The substitute part is currently in active production status with confirmed inventory availability (924 units), whereas the original part is obsolete with limited remaining stock (750 units).

Both parts satisfy ROHS3 compliance and REACH unaffected status, ensuring regulatory alignment for current and future applications. The substitute part's extended operating temperature range (-40°C to 125°C) provides additional thermal margin compared to the original specification (-40°C to 115°C), making it suitable for applications with elevated temperature requirements.

The material composition change from PBT to Polyamide does not compromise functional performance for this connector class, as both materials meet equivalent flammability and electrical requirements.
