HARTING 09152000703 Circular Connector Insert Shell Equivalent & Substitute Parts

Part Overview

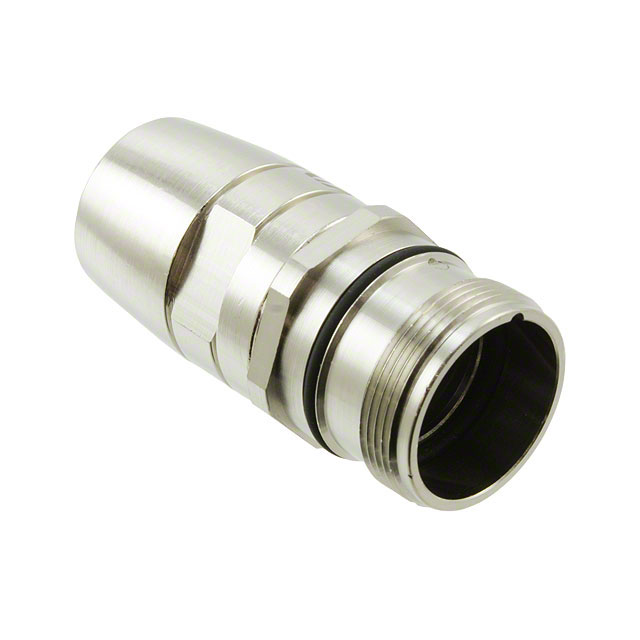

The HARTING 09152000703 is a Position Circular Connector Insert Shell designed for free hanging (in-line) applications with backshell configuration. This component is classified as Obsolete, necessitating identification of active equivalent parts to maintain system compatibility and ensure continued supply chain availability. The part operates within the Han® R23 series and meets IP67 ingress protection requirements with UL94 V-0 flammability compliance.

Substiute Parts

09152000703

HARTINGIn Stock: 100909152000703 Datasheet

Current PartRFQ

09151000701

HARTINGIn Stock: 96109151000701 Datasheet

MFR RecommendedRFQ

09151000702

HARTINGIn Stock: 90409151000702 Datasheet

MFR RecommendedRFQ

09151000703

HARTINGIn Stock: 111909151000703 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the HARTING 09152000703 is determined by the following critical parameters:

• Connector Type: Insert Shell (maintained across all substitutes)
• Mounting Type: Free Hanging (In-Line) (maintained across all substitutes)
• Fastening Type: Threaded (maintained across all substitutes)
• Shell Material & Finish: Copper Zinc Alloy with Nickel finish (maintained across all substitutes)
• Housing Color: Silver (maintained across all substitutes)
• Manufacturer: HARTING (maintained across all substitutes)
• RoHS Compliance: ROHS3 Compliant (maintained across all substitutes)

The substitute parts 09151000701, 09151000702, and 09151000703 belong to the Han® M23 series and represent active product alternatives. These parts maintain functional equivalence through identical connector type, mounting configuration, fastening mechanism, and material specifications. The primary distinction is the transition from the obsolete Han® R23 series to the active Han® M23 series, coupled with enhanced ingress protection (IP67/IP69K versus IP67) and the addition of coupling nut features.

Parameter Comparison

Engineering Selection Recommendations

Selection of substitute parts for the obsolete HARTING 09152000703 should be based on the following engineering criteria:

Product Status Consideration: The main part 09152000703 carries Obsolete status, while all three substitute parts (09151000701, 09151000702, 09151000703) maintain Active status. This transition ensures long-term supply chain viability and manufacturing support.

Compliance & Certification: All substitute parts maintain ROHS3 compliance and REACH Unaffected status, consistent with the original part. The substitute parts provide enhanced ingress protection at IP67/IP69K, exceeding the original IP67 specification, which represents an improvement for applications requiring higher environmental sealing standards.

Operating Temperature Enhancement: Substitute parts support an extended operating temperature range of -40°C to 125°C compared to the original -40°C to 115°C, providing additional thermal margin for demanding applications.

Shielding Upgrade: Substitute parts incorporate shielding, whereas the original part is unshielded. This enhancement provides electromagnetic interference mitigation for sensitive signal applications.

Mechanical Compatibility: All parts maintain identical connector type, mounting configuration, fastening mechanism, and material specifications, ensuring mechanical interchangeability within the same form factor.

Frequently Asked Questions (FAQ)

Q: Can the HARTING 09151000701, 09151000702, or 09151000703 directly replace the obsolete 09152000703?

A: Yes. All substitute parts maintain identical connector type (Insert Shell), mounting type (Free Hanging In-Line), fastening type (Threaded), shell material (Copper Zinc Alloy with Nickel finish), and housing color (Silver). The transition from Han® R23 to Han® M23 series represents a product line evolution with enhanced specifications.

Q: What are the key differences between the main part and substitute parts?

A: The primary differences are: (1) Series transition from Han® R23 to Han® M23; (2) Enhanced ingress protection from IP67 to IP67/IP69K; (3) Extended operating temperature range from -40°C to 115°C to -40°C to 125°C; (4) Addition of shielding in substitute parts; (5) Inclusion of coupling nut feature in substitute parts; (6) Product status change from Obsolete to Active.

Q: Are there differences between the three substitute part numbers 09151000701, 09151000702, and 09151000703?

A: The three substitute parts are functionally equivalent with identical electrical and mechanical specifications. Differences exist only in inventory availability (949 Pcs, 862 Pcs, and 1109 Pcs respectively) and packaging designation (all Bulk). Selection among these three parts should be based on procurement requirements and inventory status.

Q: Does the addition of shielding in substitute parts affect compatibility?

A: The addition of shielding in substitute parts represents an enhancement that does not compromise mechanical compatibility. Shielding provides electromagnetic interference protection and is compatible with applications originally designed for unshielded versions.

Q: What is the significance of the coupling nut feature in substitute parts?

A: The coupling nut feature in substitute parts (09151000701, 09151000702, 09151000703) provides enhanced mechanical coupling capability for threaded fastening applications. This feature maintains compatibility with the original threaded fastening type while offering improved connection reliability.

Q: Are all parts compliant with current regulatory requirements?

A: Yes. All parts, including the obsolete main part and all substitute parts, maintain ROHS3 compliance and REACH Unaffected status, meeting current regulatory requirements for electronic component manufacturing and distribution.
