HARTING 09152000351 Circular Connector Insert Shell Equivalent & Substitute Parts

Part Overview

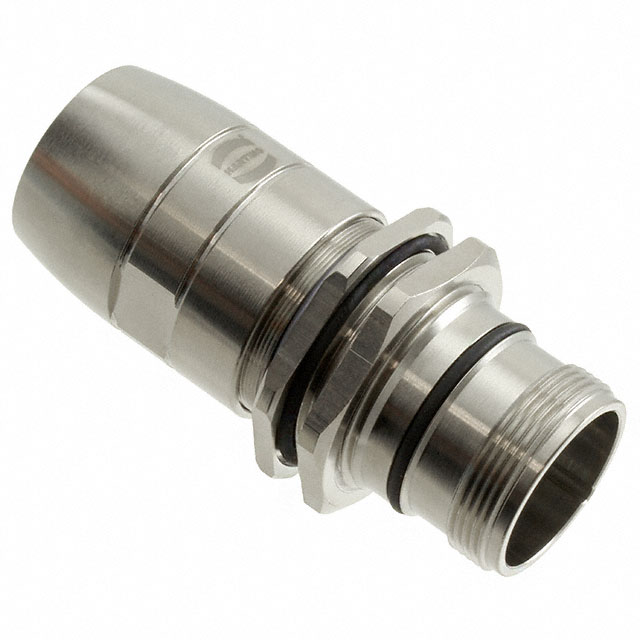

The HARTING 09152000351 is a circular connector insert shell designed for free hanging (in-line) and panel mount applications. This component is classified as an obsolete product, necessitating identification of active equivalent alternatives that maintain functional compatibility. The part operates within the Han® R23 series and provides IP67-rated ingress protection suitable for industrial connector applications.

Substiute Parts

09152000351

HARTINGIn Stock: 93709152000351 Datasheet

Current PartRFQ

09151000309

HARTINGIn Stock: 81709151000309 Datasheet

MFR RecommendedRFQ

09151000310

HARTINGIn Stock: 93909151000310 Datasheet

MFR RecommendedRFQ

09151000311

HARTINGIn Stock: 87709151000311 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the HARTING 09152000351 is based on the following critical parameters that determine functional equivalence:

Primary Substitution Criteria:

• Connector Type: Insert Shell
• Mounting Type: Free Hanging (In-Line) and Panel Mount configuration
• Mounting Feature: Bulkhead - Front Side Nut with threaded fastening
• Shell Material: Copper Zinc Alloy with Nickel finish
• Ingress Protection: IP67 minimum rating
• Shielding: Unshielded configuration
• RoHS Compliance: ROHS3 Compliant

The three substitute parts (09151000309, 09151000310, 09151000311) are all members of the Han® M23 series and maintain compatibility across these core parameters. All substitute parts are classified as Active products, ensuring continued availability and support. The substitutes provide enhanced ingress protection (IP67/IP69K) and extended operating temperature range (-40°C ~ 125°C) compared to the obsolete main part.

Parameter Comparison

Engineering Selection Recommendations

All three substitute parts (09151000309, 09151000310, 09151000311) are direct functional equivalents to the obsolete HARTING 09152000351. Selection among the three active alternatives should be based on application-specific requirements and inventory availability:

Product Status Consideration: The main part 09152000351 is classified as obsolete. All substitute parts maintain Active product status, ensuring long-term availability, technical support, and continued manufacturing commitment from HARTING.

Compliance and Certifications: All substitute parts maintain ROHS3 compliance and REACH Unaffected status, matching the regulatory requirements of the original part. The substitutes provide enhanced ingress protection (IP67/IP69K versus IP67), offering improved performance in demanding environmental conditions.

Operating Temperature: The substitute parts extend the upper operating temperature limit to 125°C compared to the original 115°C specification, providing additional thermal margin for high-temperature applications.

Inventory Availability: Current stock levels are 800 units (09151000309), 914 units (09151000310), and 837 units (09151000311), ensuring adequate supply for production requirements.

Frequently Asked Questions (FAQ)

Q: Are the substitute parts 09151000309, 09151000310, and 09151000311 mechanically compatible with the original 09152000351?

A: Yes. All substitute parts share identical mounting configurations (free hanging in-line and panel mount), mounting features (bulkhead front side nut), fastening methods (threaded), and shell material specifications (copper zinc alloy with nickel finish). Mechanical compatibility is maintained across all three alternatives.

Q: What is the difference between the three substitute parts?

A: The provided data specifies that all three substitute parts (09151000309, 09151000310, 09151000311) share identical electrical and mechanical parameters. Differentiation between these parts is not defined in the available technical specifications. Consult HARTING technical documentation or contact the manufacturer for specific distinctions.

Q: Does the enhanced IP67/IP69K rating of the substitute parts affect compatibility?

A: No. The substitute parts provide equal or superior ingress protection compared to the original IP67 specification. IP67/IP69K encompasses IP67 performance, ensuring full compatibility with applications designed for the original part's protection level.

Q: Are there any temperature-related compatibility concerns when substituting the 09152000351?

A: No. The substitute parts extend the operating temperature range to -40°C ~ 125°C, which encompasses the original specification of -40°C ~ 115°C. Applications operating within the original temperature range will function without thermal-related issues.

Q: Do the substitute parts require different contact or insert specifications?

A: The provided specifications indicate that contacts and inserts are not included with any of these parts. Compatibility with existing contact and insert assemblies is determined by the connector series (Han® M23 for substitutes versus Han® R23 for the original). Verify contact and insert compatibility with HARTING technical resources before assembly.

Q: What is the packaging format for the substitute parts?

A: All three substitute parts are supplied in Bulk packaging, consistent with industrial connector distribution standards.
