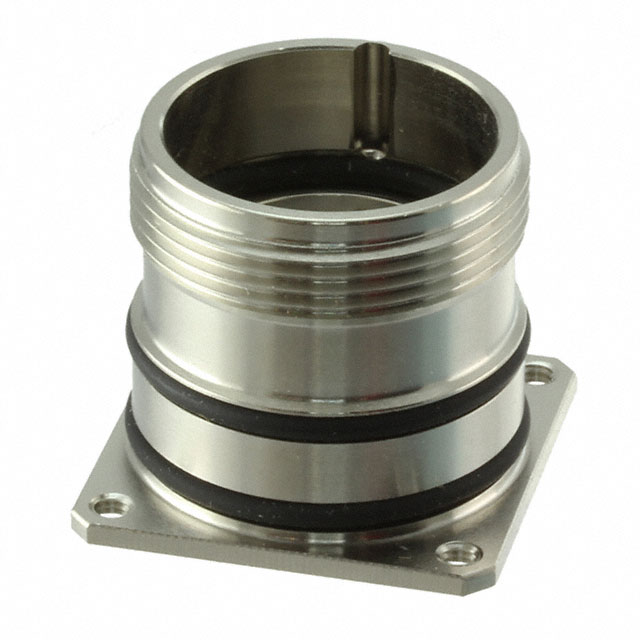

HARTING 09152000311 Circular Connector Insert Shell Panel Mount

Part Overview

The HARTING 09152000311 is a circular connector insert shell designed for panel mount applications within the Han® R23 series. This component functions as the outer shell assembly for circular connectors, featuring a threaded fastening mechanism and flange-based mounting. The part is classified as obsolete, necessitating identification of active alternative components that maintain functional and mechanical compatibility for ongoing applications and new designs.

Substiute Parts

09152000311

HARTINGIn Stock: 105609152000311 Datasheet

Current PartRFQ

09151000305

HARTINGIn Stock: 68809151000305 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the HARTING 09152000311 is determined by the following critical parameters that must remain consistent:

• Connector Type: Insert Shell (functional role within the connector assembly)
• Mounting Type: Panel Mount with Flange (mechanical interface requirement)
• Fastening Type: Threaded (assembly and installation method)
• Shell Material and Finish: Copper Zinc Alloy with Nickel finish (corrosion resistance and electrical properties)
• Ingress Protection: IP67 minimum (environmental sealing requirement)
• Operating Temperature Range: Minimum -40°C to 115°C capability
• RoHS Compliance: ROHS3 Compliant (regulatory requirement)

The substitute part HARTING 09151000305 maintains all critical parameters while offering enhanced specifications and active product status.

Parameter Comparison

Engineering Selection Recommendations

The HARTING 09151000305 serves as the direct substitute for the obsolete 09152000311. Both components satisfy identical functional and mechanical requirements as circular connector insert shells with panel mount configuration. The substitute part maintains all critical electrical and mechanical parameters while providing:

• Active product status ensuring continued availability and supply chain reliability
• Enhanced ingress protection rating (IP67/IP69K versus IP67), providing superior environmental sealing capability
• Extended operating temperature range (-40°C to 125°C versus -40°C to 115°C), accommodating broader thermal application requirements
• ROHS3 compliance maintained for regulatory alignment

Selection of the substitute part is appropriate for both replacement applications and new designs requiring this connector shell category.

Frequently Asked Questions (FAQ)

Q: Can the 09151000305 directly replace the 09152000311 in existing applications?

A: Yes. Both parts maintain identical connector type, mounting configuration, fastening mechanism, shell material composition, and ingress protection baseline. The substitute offers enhanced specifications without compromising compatibility.

Q: What is the difference between Han® R23 and Han® M23 series designations?

A: Series designation reflects the connector family classification within HARTING's product line. Both series employ compatible insert shell designs for panel mount applications with threaded fastening.

Q: Are there packaging differences between these parts?

A: The 09152000311 is supplied without specified packaging information. The 09151000305 is supplied in bulk packaging. Packaging format does not affect functional or mechanical compatibility.

Q: Does the enhanced IP69K rating of the substitute part affect installation procedures?

A: No. Both parts employ identical panel mount flange and threaded fastening mechanisms. Installation procedures remain unchanged.

Q: Are both parts RoHS compliant?

A: Yes. Both the 09152000311 and 09151000305 maintain ROHS3 compliance status.
