HARTING 09152000303 Circular Connector Insert Shell Panel Mount - Equivalent & Substitute Parts

Part Overview

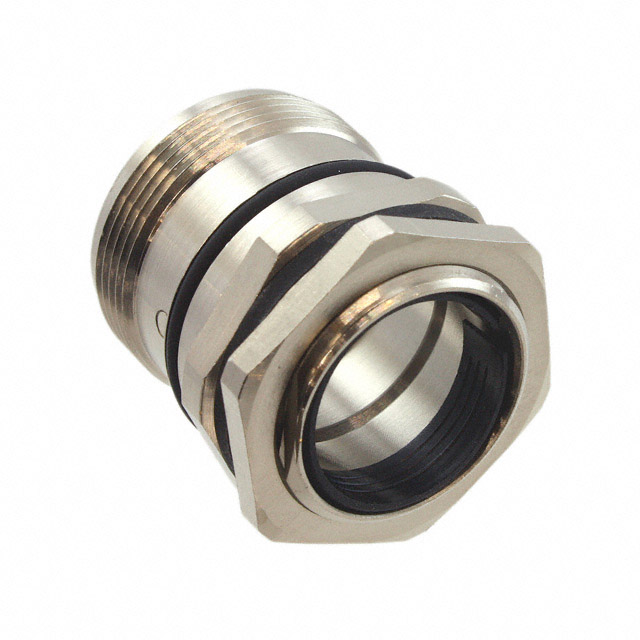

The HARTING 09152000303 is a circular connector insert shell designed for panel mount applications with bulkhead rear side nut fastening. This component is part of the Han® R23 series and provides IP67-rated ingress protection for dust and water resistance. The product is currently obsolete, making identification of suitable substitute components essential for ongoing system maintenance and new design implementations.

Substiute Parts

09152000303

HARTINGIn Stock: 81809152000303 Datasheet

Current PartRFQ

09151000363

HARTINGIn Stock: 96609151000363 Datasheet

MFR RecommendedRFQ

09151000373

HARTINGIn Stock: 83909151000373 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the HARTING 09152000303 is determined by the following critical parameters:

Primary Substitution Criteria:

• Connector type: Insert Shell
• Mounting configuration: Panel Mount with Bulkhead Rear Side Nut fastening
• Fastening mechanism: Threaded
• Shell material composition: Copper Zinc Alloy with Nickel finish
• Ingress protection minimum: IP67 rating
• Shielding configuration: Unshielded
• Regulatory compliance: ROHS3 and REACH Unaffected status

The substitute parts 09151000363 and 09151000373 meet these criteria while offering enhanced specifications. Both substitutes belong to the Han® M23 series, which represents an active product line with improved ingress protection ratings (IP67/IP69K) and extended operating temperature ranges (-40°C to 125°C).

Parameter Comparison

Engineering Selection Recommendations

Both substitute parts 09151000363 and 09151000373 are manufacturer-recommended alternatives to the obsolete 09152000303. Selection between these substitutes should be based on application-specific requirements and availability:

09151000363 and 09151000373 Advantages:

• Active product status ensures long-term availability and supply chain continuity
• Enhanced ingress protection rating (IP67/IP69K) provides superior environmental sealing compared to the original IP67 specification
• Extended operating temperature range (-40°C to 125°C) accommodates broader thermal environments
• Full ROHS3 compliance and REACH Unaffected status maintain regulatory alignment
• Identical mechanical mounting configuration ensures direct physical compatibility

Both substitutes maintain the same connector type, mounting methodology, shell material composition, and electrical shielding characteristics as the original component. The Han® M23 series represents HARTING's current generation technology for this connector class.

Frequently Asked Questions (FAQ)

Q: Can 09151000363 or 09151000373 be used as direct replacements for 09152000303?

A: Yes. Both substitute parts maintain identical mounting configurations (panel mount with bulkhead rear side nut), fastening mechanisms (threaded), shell materials (copper zinc alloy with nickel finish), and shielding characteristics (unshielded). The mechanical interface is compatible.

Q: What are the key differences between the original part and the substitutes?

A: The substitutes belong to the Han® M23 series rather than the Han® R23 series. They offer enhanced ingress protection (IP67/IP69K versus IP67), extended operating temperature range (125°C maximum versus 115°C), and active product status ensuring ongoing availability.

Q: Are there differences between 09151000363 and 09151000373?

A: Both parts share identical electrical and mechanical specifications. Selection between them should be based on inventory availability and packaging preferences (both supplied in bulk packaging).

Q: Do these substitutes require any design modifications?

A: No design modifications are required. The panel mount interface, threaded fastening, and bulkhead configuration remain unchanged. Existing mounting hardware and panel cutouts are compatible.

Q: What is the significance of the IP67/IP69K rating on the substitute parts?

A: IP67 provides dust-tight and waterproof protection. IP69K adds high-pressure jet water resistance. The enhanced rating on substitutes provides superior environmental protection while maintaining backward compatibility with IP67 applications.

Q: Are contacts and inserts included with these parts?

A: No. All three parts (original and substitutes) are supplied as insert shells without contacts or inserts, consistent with the component classification.
