HARTING 09152000301 Equivalent & Substitute Parts

Part Overview

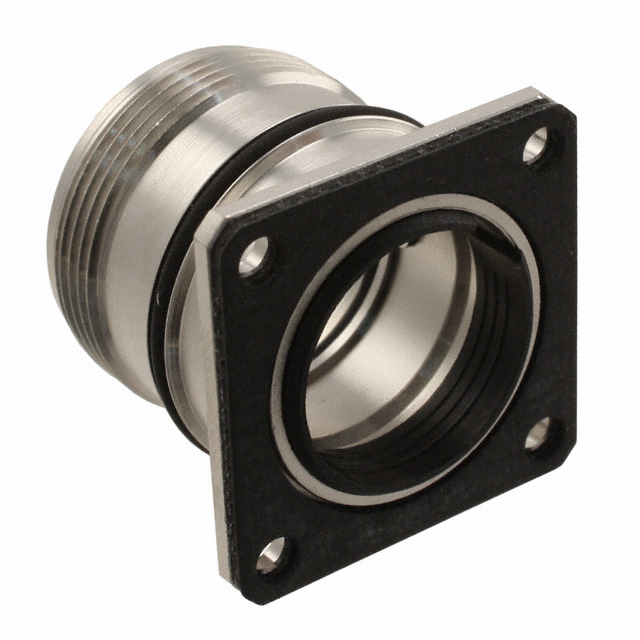

The HARTING 09152000301 is a circular connector insert shell designed for panel mount applications within the Han® R23 series. This component functions as a connector shell assembly with threaded fastening and IP67 ingress protection rating. The part is classified as obsolete, necessitating identification of active equivalent components to maintain system compatibility and ensure continued availability for new designs and field replacements.

Substiute Parts

09152000301

HARTINGIn Stock: 113109152000301 Datasheet

Current PartRFQ

09151000301

HARTINGIn Stock: 121509151000301 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The HARTING 09151000301 qualifies as a direct substitute based on the following alignment of critical parameters:

Matching Parameters:

• Manufacturer: HARTING (same manufacturer ensures design compatibility)
• Category: Circular Connectors (identical component classification)
• Connector Type: Insert Shell (same functional component type)
• Mounting Type: Panel Mount (identical installation method)
• Mounting Feature: Flange (same mechanical interface)
• Fastening Type: Threaded (compatible fastening mechanism)
• Shell Material: Copper Zinc Alloy (identical material composition)
• Shell Finish: Nickel (same corrosion protection)
• Housing Color: Silver (identical aesthetic specification)
• Shielding: Unshielded (same electromagnetic configuration)
• RoHS Status: ROHS3 Compliant (equivalent regulatory compliance)
• REACH Status: REACH Unaffected (equivalent regulatory status)

Enhanced Specifications in Substitute:

• Series: Han® M23 (upgraded series with improved specifications)
• Product Status: Active (currently manufactured and supported)
• Ingress Protection: IP67/IP69K (enhanced protection rating compared to IP67)
• Operating Temperature Range: -40°C to 125°C (extended upper temperature limit)

Parameter Comparison

Engineering Selection Recommendations

The HARTING 09151000301 is the appropriate substitute for the obsolete 09152000301. Both components maintain ROHS3 compliance and REACH unaffected status, satisfying current regulatory requirements. The substitute part is actively manufactured, ensuring long-term availability and supply chain continuity. The enhanced ingress protection rating (IP67/IP69K versus IP67) and extended operating temperature range (-40°C to 125°C versus -40°C to 115°C) provide improved performance margins for demanding applications. Mechanical and material specifications remain consistent, supporting direct functional replacement in panel mount circular connector assemblies.

Frequently Asked Questions (FAQ)

Q: Can the 09151000301 directly replace the 09152000301 in existing designs?

A: Yes. Both parts share identical mounting type, fastening mechanism, shell material, finish, and shielding configuration. The substitute maintains all critical mechanical and electrical interfaces required for panel mount installation.

Q: What is the primary reason for substitution?

A: The 09152000301 is classified as obsolete. The 09151000301 is an active product from the same manufacturer, ensuring continued availability and manufacturing support.

Q: Are there compliance differences between the two parts?

A: No. Both parts maintain ROHS3 compliance and REACH unaffected status. Regulatory requirements are equivalent.

Q: Does the substitute offer any performance improvements?

A: The 09151000301 provides enhanced ingress protection (IP67/IP69K versus IP67) and an extended operating temperature range (up to 125°C versus 115°C), offering improved performance margins for high-temperature or high-moisture environments.

Q: What packaging differences exist?

A: The original part is supplied in standard packaging, while the substitute is available in bulk packaging. This does not affect component functionality or compatibility.

Q: Are contacts and inserts included with either part?

A: No. Both the original and substitute parts are supplied without contacts or inserts, as specified in the product documentation.
