Phoenix Contact 0913757 Equivalent & Substitute Parts

Part Overview

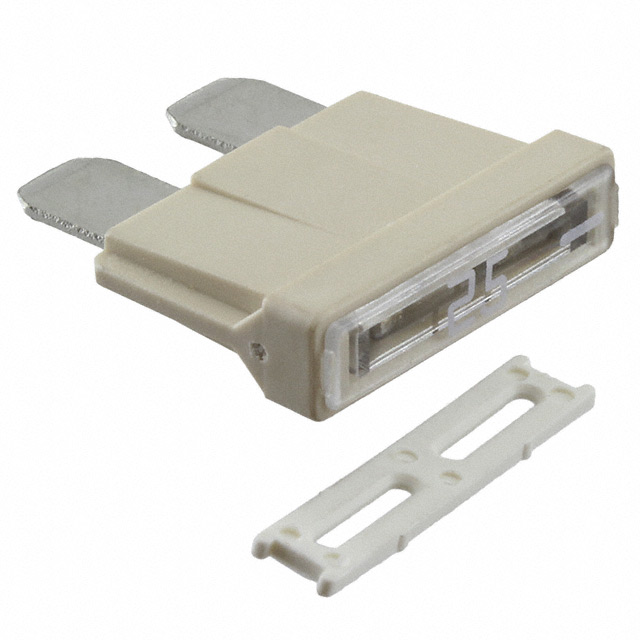

The Phoenix Contact 0913757 is a 25 A automotive blade fuse (ATO/ATC type) designed for DC and AC applications requiring a fuse holder. This component is classified as obsolete, making identification of functionally equivalent alternatives essential for system maintenance and component replacement in automotive electrical circuits.

The primary reason for identifying substitute parts is the obsolete status of the original component. Active alternatives with identical electrical and mechanical specifications ensure continuity of supply and system reliability.

Substiute Parts

0913757

Phoenix ContactIn Stock: 8010913757 Datasheet

Current PartRFQ

0287025.PXCN

Littelfuse Inc.In Stock: 3974260287025.PXCN Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the Phoenix Contact 0913757 is determined by the following critical parameters:

• Current Rating: 25 A (exact match required)
• Fuse Type: Automotive blade fuse
• Package / Case: Blade, ATO/ATC (mechanical and electrical interface compatibility)
• Mounting Type: Requires Holder (system integration requirement)
• Voltage Rating: DC and AC operation capability

The Littelfuse Inc. 0287025.PXCN meets all substitution criteria. It maintains identical current rating, fuse type, and package specifications while providing active product status and enhanced compliance certifications.

Parameter Comparison

Engineering Selection Recommendations

The Littelfuse Inc. 0287025.PXCN is the direct substitute for the obsolete Phoenix Contact 0913757. Selection is based on:

• Electrical Equivalence: Identical 25 A current rating and automotive blade fuse classification
• Mechanical Compatibility: ATO/ATC blade package ensures direct fit in existing fuse holders
• Product Status: Active manufacturing status ensures availability and supply chain continuity
• Compliance: ROHS3 compliance and CSA/UL approvals provide enhanced regulatory coverage compared to the original component
• Operating Specifications: Defined 32 V DC rating and -40°C to 105°C operating temperature range support automotive applications

The substitute part is suitable for direct replacement in all applications where the Phoenix Contact 0913757 was originally specified.

Frequently Asked Questions (FAQ)

Q: Can the Littelfuse 0287025.PXCN be used as a direct replacement for the Phoenix Contact 0913757?

A: Yes. Both components share identical current ratings (25 A), fuse type (automotive), and package specifications (Blade, ATO/ATC). The Littelfuse part is mechanically and electrically compatible for direct substitution.

Q: What are the key differences between these two fuses?

A: The primary differences are product status (obsolete vs. active), physical dimensions (the Littelfuse part is slightly smaller), and documented specifications. The Littelfuse part includes defined voltage rating (32 V DC), operating temperature range (-40°C to 105°C), and dual agency approvals (CSA, UL).

Q: Are there any compatibility concerns with existing fuse holders?

A: No. Both components use the standard ATO/ATC blade interface. The Littelfuse part dimensions are within the tolerance range for ATO/ATC fuse holders, ensuring proper fit and electrical contact.

Q: Does the substitute part meet the same regulatory requirements?

A: The Littelfuse 0287025.PXCN exceeds the original compliance level. It carries ROHS3 compliance (vs. RoHS Compliant) and holds CSA and UL approvals, providing enhanced regulatory coverage for automotive applications.

Q: What is the melting I²t value for the substitute part?

A: The Littelfuse 0287025.PXCN has a melting I²t of 1080, indicating its thermal response characteristics for circuit protection.
