Phoenix Contact 0913715 Equivalent & Substitute Parts

Part Overview

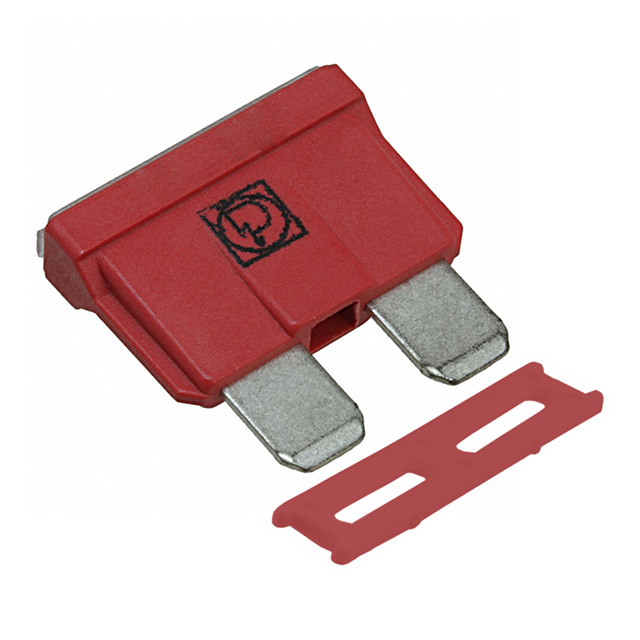

The Phoenix Contact 0913715 is a 10 A automotive fuse rated for 32 V DC operation with ATO/ATC blade configuration. This component is classified as obsolete, making identification of active equivalent parts essential for system maintenance and component procurement. The fuse requires a compatible holder for installation and is designed for automotive electrical circuit protection applications.

Substiute Parts

0913715

Phoenix ContactIn Stock: 12060913715 Datasheet

Current PartRFQ

0287010.PXCN

Littelfuse Inc.In Stock: 3231800287010.PXCN Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the Phoenix Contact 0913715 is determined by strict alignment of the following electrical and mechanical parameters:

• Current Rating: 10 A (exact match required)
• Voltage Rating - DC: 32 V (exact match required)
• Package / Case: Blade, ATO/ATC (exact match required)
• Fuse Type: Automotive (exact match required)
• Mounting Type: Requires Holder (exact match required)

The Littelfuse Inc. 0287010.PXCN meets all substitution criteria. This part maintains identical electrical specifications and mechanical form factor, ensuring direct compatibility with existing holder assemblies and circuit protection requirements.

Parameter Comparison

Engineering Selection Recommendations

The Littelfuse Inc. 0287010.PXCN is the qualified substitute for the obsolete Phoenix Contact 0913715. Selection is based on:

• Identical electrical ratings (10 A, 32 V DC)
• Identical mechanical form factor (Blade, ATO/ATC)
• Active product status ensuring ongoing availability
• ROHS3 compliance meeting current regulatory requirements
• UL approval certification for automotive applications

The substitute part is suitable for direct replacement in existing circuits and holder assemblies without modification.

Frequently Asked Questions (FAQ)

Q: Can the Littelfuse 0287010.PXCN be used as a direct replacement for the Phoenix Contact 0913715?

A: Yes. Both parts share identical current rating (10 A), voltage rating (32 V DC), package type (Blade, ATO/ATC), and mounting requirements. Direct installation in existing holders is supported.

Q: What is the significance of the product status difference?

A: The Phoenix Contact 0913715 is obsolete, meaning it is no longer manufactured or supported. The Littelfuse substitute is active, ensuring availability for procurement and future system maintenance.

Q: Are there dimensional differences between these parts?

A: Yes. The Phoenix Contact 0913715 measures 0.787" L x 0.236" W x 0.689" H, while the Littelfuse 0287010.PXCN measures 0.752" L x 0.201" W x 0.484" H. Both conform to ATO/ATC blade specifications and function within standard automotive fuse holders.

Q: What compliance certifications apply to each part?

A: The Phoenix Contact 0913715 carries GOST approval. The Littelfuse 0287010.PXCN carries UL approval and meets ROHS3 compliance standards.

Q: Are there differences in response time or breaking capacity?

A: The Littelfuse substitute specifies Fast Blow response time and 1 kA breaking capacity at rated voltage. These parameters are not provided for the Phoenix Contact original part.
