Phoenix Contact 0913689 Equivalent & Substitute Parts

Part Overview

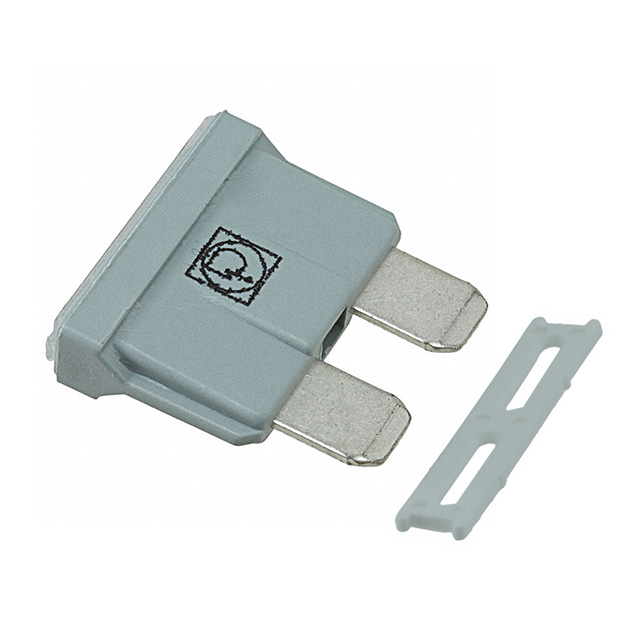

The Phoenix Contact 0913689 is a 2A automotive blade fuse rated for 32V DC operation in ATO/ATC form factor. This component is classified as obsolete, necessitating identification of active equivalent parts for ongoing system support and procurement. The fuse requires a compatible holder for installation and is designed for automotive circuit protection applications.

Substiute Parts

0913689

Phoenix ContactIn Stock: 9430913689 Datasheet

Current PartRFQ

0287002.PXCN

Littelfuse Inc.In Stock: 156120287002.PXCN Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the Phoenix Contact 0913689 is determined by strict equivalence across the following critical parameters:

• Current Rating: 2 A (exact match required)
• Voltage Rating - DC: 32 V (exact match required)
• Package / Case: Blade, ATO/ATC (form factor compatibility)
• Fuse Type: Automotive (application category)
• Mounting Type: Requires Holder (installation method)

The Littelfuse Inc. 0287002.PXCN meets all substitution criteria as an active product with identical electrical ratings and mechanical form factor. This part is currently in production and maintains full stock availability.

Parameter Comparison

Engineering Selection Recommendations

The Littelfuse 0287002.PXCN is the direct equivalent for the obsolete Phoenix Contact 0913689. Selection is based on:

• Identical electrical specifications (2A, 32V DC)
• Identical mechanical form factor (Blade, ATO/ATC)
• Active product status with continuous availability
• Enhanced compliance certifications (UL approval, ROHS3)
• Established automotive fuse series (ATOF®)

No alternative substitutes are available within the provided dataset. The Littelfuse part maintains full functional and physical compatibility with existing ATO/ATC holder installations.

Frequently Asked Questions (FAQ)

Q: Can the Littelfuse 0287002.PXCN be used as a direct replacement for the Phoenix Contact 0913689?

A: Yes. Both parts share identical current rating (2A), voltage rating (32V DC), and ATO/ATC blade form factor. The Littelfuse part is mechanically and electrically compatible with all existing holder installations designed for the Phoenix Contact fuse.

Q: What is the difference between the GOST and UL approvals listed for these parts?

A: GOST is a Russian standards certification, while UL is a North American safety certification. The Littelfuse part carries UL approval, which is the standard certification for automotive fuses in North American applications. Selection between certifications depends on the end-use geographic region and regulatory requirements.

Q: Are there any dimensional differences between these fuses?

A: Yes. The Phoenix Contact 0913689 measures 0.787" L x 0.236" W x 0.689" H, while the Littelfuse 0287002.PXCN measures 0.752" L x 0.201" W x 0.484" H. Despite these dimensional variations, both parts conform to the ATO/ATC blade standard and are compatible with standard ATO/ATC holders.

Q: What does "Fast Blow" response time mean for the Littelfuse part?

A: Fast Blow indicates the fuse will open quickly under overcurrent conditions, typically within milliseconds. This characteristic is standard for automotive blade fuses and ensures rapid circuit protection.

Q: Is the Littelfuse part RoHS compliant?

A: Yes. The Littelfuse 0287002.PXCN carries ROHS3 compliance, which exceeds the RoHS Compliant status of the original Phoenix Contact part. This ensures compliance with current environmental and material restriction regulations.
