Molex 0908140010 Rectangular Connector Header - Equivalent & Substitute Parts

Part Overview

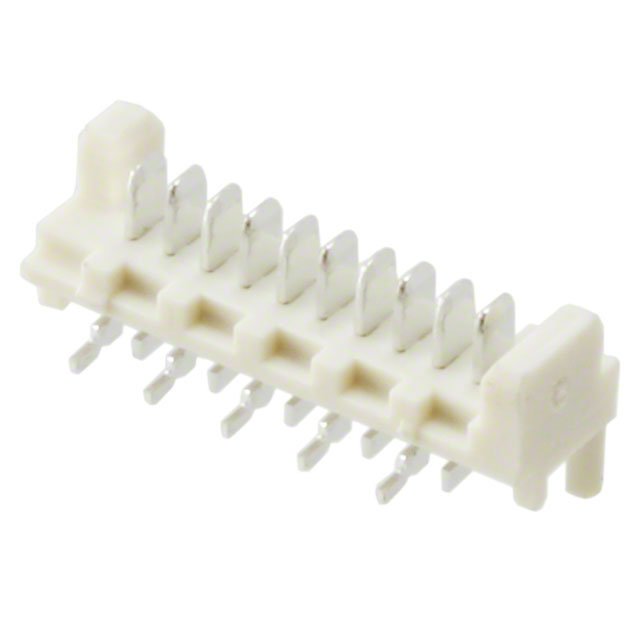

The Molex 0908140010 is a surface mount rectangular connector header from the Picoflex PF-50 series, designed for board-to-cable/wire applications. This 10-position, single-row header features shrouded 2-wall construction with male blade contacts and push-pull fastening. The part is classified as obsolete, making identification of active equivalent components essential for ongoing production and maintenance applications.

Substiute Parts

0908140010

MolexIn Stock: 7130908140010 Datasheet

Current PartRFQ

0908140810

MolexIn Stock: 119950908140810 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the Molex 0908140010 is determined by strict equivalence across the following critical parameters:

• Connector Type & Contact Configuration: Header with male blade contacts
• Position Count & Pitch: 10 positions at 0.050" (1.27mm) mating pitch
• Mounting Technology: Surface mount construction
• Electrical Ratings: 1.2A current capacity and 250V voltage rating
• Mechanical Interface: Shrouded 2-wall design with push-pull fastening
• Termination Method: Solder termination
• Compliance Standards: ROHS3 compliance and UL94 V-0 flammability rating

The substitute part Molex 0908140010 maintains full electrical and mechanical compatibility with the original specification while offering active product status and improved availability.

Parameter Comparison

Engineering Selection Recommendations

The Molex 0908140810 is the direct active equivalent for the obsolete Molex 0908140010. Both components share identical electrical ratings, mechanical interfaces, and compliance certifications. The substitute part maintains ROHS3 compliance and UL94 V-0 flammability rating, ensuring regulatory continuity.

The primary distinction is product status: the 0908140810 is actively manufactured and stocked, with significantly higher inventory availability (11,912 units versus 672 units). The insulation height variation (0.252" versus 0.161") reflects design refinement within the same series and does not affect electrical or mechanical compatibility for standard board-to-cable applications.

Selection of the 0908140810 is appropriate for new designs, production continuity, and replacement applications where the original part is no longer available.

Frequently Asked Questions (FAQ)

Q: Are the Molex 0908140010 and 0908140810 electrically interchangeable?

A: Yes. Both components share identical electrical specifications: 1.2A current rating, 250V voltage rating, and tin-plated brass contacts. They are electrically interchangeable in all applications.

Q: What is the significance of the insulation height difference?

A: The insulation height varies between 0.252" (6.40mm) for the 0908140010 and 0.161" (4.10mm) for the 0908140810. This difference reflects design optimization within the Picoflex PF-50 series and does not affect electrical performance or standard board-to-cable connectivity. Verify clearance in applications with height-constrained PCB layouts.

Q: Can I use the 0908140810 as a direct replacement in existing assemblies?

A: Yes. The 0908140810 is mechanically and electrically compatible with the 0908140010. Both feature identical connector type, position count, pitch, contact configuration, and fastening mechanism. The substitute part is suitable for direct replacement in production and field applications.

Q: Why is the 0908140010 classified as obsolete?

A: The 0908140010 has been superseded by the 0908140810 within the Picoflex PF-50 series. The newer variant offers improved availability and active manufacturing status while maintaining full compatibility.

Q: What packaging is available for the substitute part?

A: The Molex 0908140810 is supplied in tube packaging, suitable for automated assembly and standard component handling.

Q: Are both parts ROHS3 compliant?

A: Yes. Both the 0908140010 and 0908140810 are ROHS3 compliant and carry UL94 V-0 flammability certification, meeting current regulatory requirements for automotive, industrial, medical, and general-purpose applications.
