Phoenix Contact 0902221 Circuit Breaker - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 0902221 is a thermal-magnetic circuit breaker rated for 10A with lever actuation, designed for DIN rail mounting. This component is classified as obsolete, making identification of suitable substitute parts essential for system maintenance and component replacement in existing installations.

The 0902221 operates as a two-pole protective device suitable for both AC and DC applications. Due to its obsolete status, sourcing direct replacements requires evaluation of functionally equivalent alternatives that maintain the same electrical and mechanical characteristics.

Substiute Parts

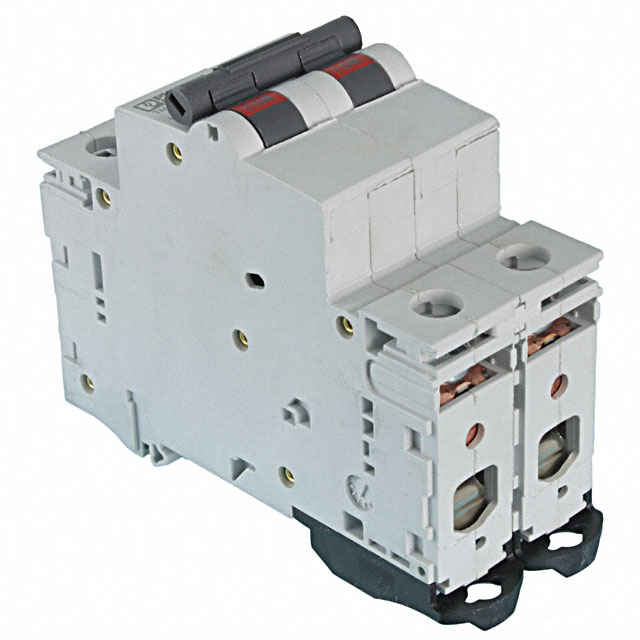

0902221

Phoenix ContactIn Stock: 7550902221 Datasheet

Current PartRFQ

1020002

Phoenix ContactIn Stock: 304451020002 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the Phoenix Contact 0902221 is determined by the following critical parameters:

• Current Rating: 10A (exact match required)
• Breaker Type: Thermal Magnetic (exact match required)
• Number of Poles: 2 (exact match required)
• Actuator Type: Lever (exact match required)
• Mounting Type: DIN Rail (exact match required)
• Manufacturer: Phoenix Contact (same manufacturer preferred for series compatibility)

The substitute part Phoenix Contact 1020002 satisfies all mandatory electrical and mechanical parameters. This part belongs to the TMC 7 series, representing an active product line evolution from the obsolete TMC series. Both components share identical core specifications for current rating, pole configuration, actuation method, and mounting standard.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1020002 serves as the direct functional equivalent for the obsolete 0902221. Both components maintain identical specifications for current rating, pole count, actuation mechanism, and DIN rail mounting compatibility.

The 1020002 is classified as an active product with current manufacturing support and significantly higher inventory availability (30,400 units in stock versus 694 units for the obsolete part). This substitute carries ROHS3 compliance, representing current regulatory standards, and includes specified voltage ratings of 277V AC and 125V DC.

Selection of the 1020002 is supported by product status alignment (active versus obsolete), enhanced compliance certification, and established supply chain availability. Both components are manufactured by Phoenix Contact, ensuring series compatibility and mechanical interchangeability within DIN rail installations.

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 1020002 directly replace the 0902221 in existing installations?

A: Yes. Both components share identical electrical ratings (10A, 2-pole, thermal-magnetic), actuator type (lever), and mounting standard (DIN rail). Mechanical and electrical interchangeability is confirmed.

Q: What is the primary reason for substitution?

A: The 0902221 is classified as obsolete. The 1020002 represents the active equivalent within the Phoenix Contact TMC series family, offering continued manufacturing support and supply availability.

Q: Are there voltage rating differences between these parts?

A: The 0902221 specifications do not include voltage ratings. The 1020002 is rated for 277V AC and 125V DC. Verification of system voltage compatibility with the 1020002 specifications is required during integration.

Q: How do RoHS compliance levels differ?

A: The 0902221 carries RoHS Compliant status. The 1020002 carries ROHS3 Compliant status, representing current regulatory requirements. Both meet environmental compliance standards.

Q: Is packaging different between these parts?

A: The 0902221 packaging is not specified. The 1020002 is supplied in box packaging. Packaging format does not affect electrical or mechanical performance.

Q: Are both parts from the same manufacturer?

A: Yes. Both the 0902221 and 1020002 are manufactured by Phoenix Contact, ensuring design consistency and series compatibility.
