Littelfuse 0895025.Z Automotive Fuse - Equivalent & Substitute Parts

Part Overview

The Littelfuse 0895025.Z is a 25A automotive fuse rated for 58V DC operation, designed for automotive electrical systems requiring holder-mounted protection. This JCASE® series fuse is an active product with full inventory availability. Substitute parts are identified when equivalent electrical and mechanical specifications are required for component sourcing, inventory management, or regional availability considerations.

Substiute Parts

0895025.Z

Littelfuse Inc.In Stock: 26640895025.Z Datasheet

Current PartRFQ

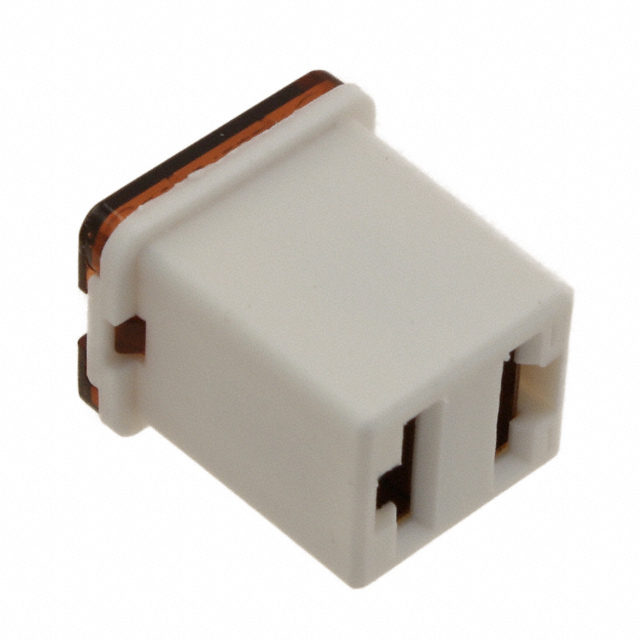

0895025.U

Littelfuse Inc.In Stock: 10300895025.U Datasheet

Parametric EquivalentRFQ

LJCA025.XPA

Littelfuse Inc.In Stock: 1074LJCA025.XPA Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 0895025.Z are identified based on strict equivalence of the following critical parameters:

• Current Rating: 25 A
• Voltage Rating (DC): 58 V
• Fuse Type: Automotive
• Package / Case: Auto Link
• Series: JCASE®
• Breaking Capacity @ Rated Voltage: 1 kA
• Operating Temperature Range: -40°C ~ 125°C
• Size / Dimension: 0.571" L x 0.472" W x 0.630" H (14.50mm x 12.00mm x 16.00mm)

All identified substitutes maintain these core electrical and mechanical specifications, ensuring direct compatibility in automotive fuse holder applications.

Parameter Comparison

Engineering Selection Recommendations

All three parts—0895025.Z, 0895025.U, and LJCA025.XPA—are active Littelfuse products with ROHS3 compliance and REACH unaffected status. Selection between these substitutes should be based on:

• Packaging requirements: 0895025.Z and 0895025.U are supplied in bulk; LJCA025.XPA is supplied in card packaging
• Inventory availability: 0895025.Z has the highest stock level at 2644 pieces
• Response time specification: LJCA025.XPA is specified as Slow Blow; response time is not specified for 0895025.Z and 0895025.U
• Color identification: 0895025.Z and 0895025.U are clear; LJCA025.XPA is white

All parts maintain identical electrical ratings, breaking capacity, operating temperature range, and physical dimensions, ensuring direct functional equivalence in automotive fuse holder applications.

Frequently Asked Questions (FAQ)

Q: Can 0895025.U be used as a direct replacement for 0895025.Z?

A: Yes. Both parts share identical current rating (25 A), voltage rating (58 V DC), package type (Auto Link), breaking capacity (1 kA), operating temperature range (-40°C ~ 125°C), physical dimensions, and DC cold resistance (0.00339 Ohms). The primary difference is inventory availability and approval agency documentation.

Q: What is the difference between 0895025.Z and LJCA025.XPA?

A: Both parts meet the same electrical specifications (25 A, 58 V DC, 1 kA breaking capacity) and physical dimensions. Differences include packaging format (bulk vs. card), color (clear vs. white), and response time specification (LJCA025.XPA is specified as Slow Blow). All three parts are mechanically and electrically compatible in Auto Link fuse holders.

Q: Are all three parts suitable for the same automotive applications?

A: Yes. All three parts are automotive-rated fuses with identical current and voltage ratings, breaking capacity, operating temperature range, and physical dimensions. They are interchangeable in applications requiring 25 A automotive fuse protection at 58 V DC in Auto Link holders.

Q: Does packaging affect electrical performance?

A: No. Packaging format (bulk vs. card) does not affect electrical performance or compatibility. Selection should be based on procurement and inventory management requirements.

Q: Are all parts RoHS and REACH compliant?

A: Yes. All three parts are ROHS3 compliant and REACH unaffected, meeting environmental regulatory requirements for automotive applications.
