Molex 0894000220 Equivalent & Substitute Parts

Part Overview

The Molex 0894000220 is a rectangular connector header, through-hole mounted, with 2 positions at 2.00mm pitch. This component is classified as obsolete, making equivalent substitute parts necessary for new designs and ongoing production support. The part features shrouded 4-wall construction with kinked pin solder termination and detent lock fastening, suitable for board-to-cable/wire applications in general purpose and industrial contexts.

Key Parameters

Parameter	Value
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	2
Number of Rows	1
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Style	Board to Cable/Wire
Insulation Material	Polyamide (PA66), Nylon 6/6
Contact Material	Brass
Contact Finish	Tin
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution for the Molex 0894000220 is determined by strict alignment of the following parameters:

Connector type: Header
Contact type: Male pin
Pitch: 0.079" (2.00mm)
Number of positions: 2
Number of rows: 1
Shrouding: Shrouded - 4 wall
Mounting type: Through hole
Style: Board to cable/wire
Insulation material: Polyamide (PA66), Nylon 6/6
Contact material: Brass
Contact finish: Tin
Material flammability rating: UL94 V-0
RoHS compliance: ROHS3 Compliant
Moisture sensitivity level: 1 (Unlimited)

All identified substitute parts meet these core electrical and mechanical parameters. Variations in termination method (press-fit vs. kinked pin), fastening type, contact finish thickness, insulation color, and operating temperature ranges do not preclude functional equivalence when the above parameters align.

Parameter Comparison

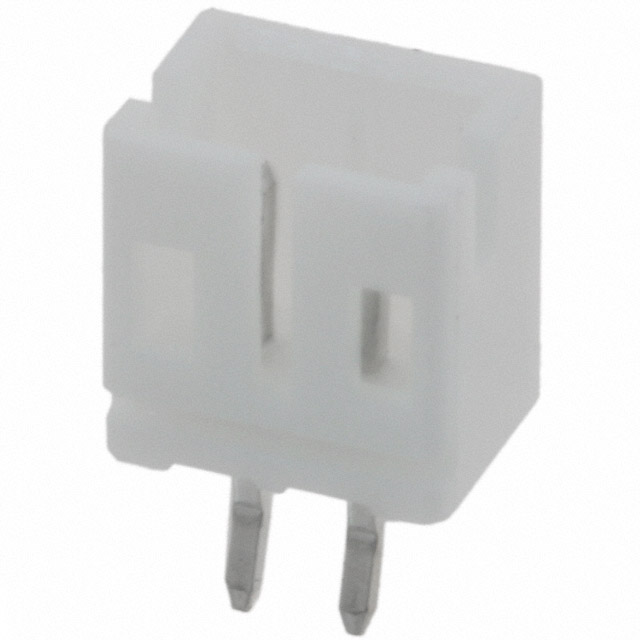

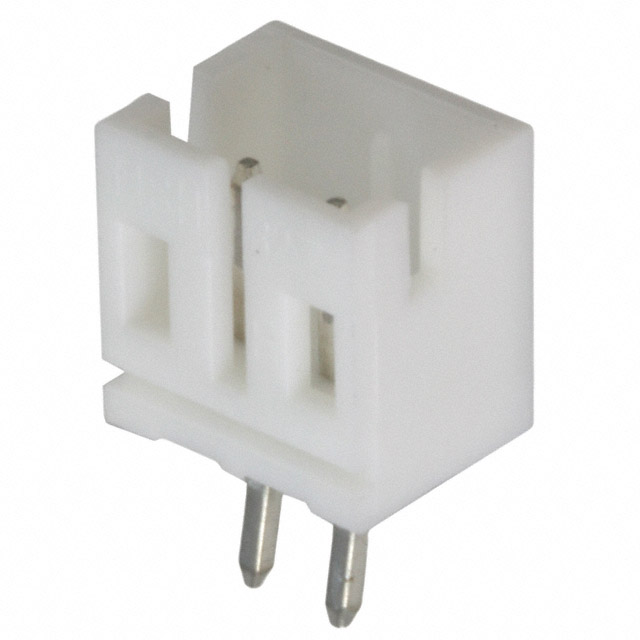

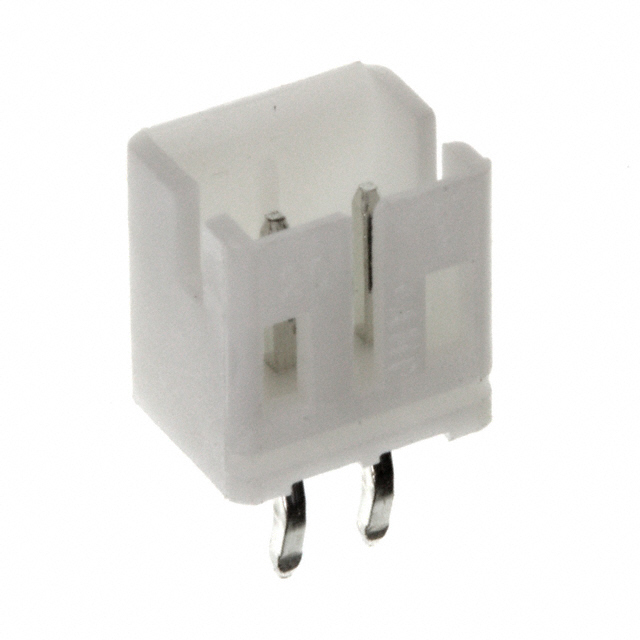

Parameter	Molex 0894000220	TE 440054-2	TE 6-440054-2	JST B2B-PH-KL	Harwin M22-2200246	Sullins SWR201-NRTN-S02-SA-WH
Manufacturer	Molex	TE Connectivity AMP	TE Connectivity AMP	JST Sales America	Harwin Inc.	Sullins Connector Solutions
Series	89400	High Performance Interconnect (HPI)	High Performance Interconnect (HPI)	PH	M22	SWR201
Product Status	Obsolete	Active	Active	Active	Active	Active
Connector Type	Header	Header	Header	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Pitch - Mating	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Number of Positions	2	2	2	2	2	2
Number of Rows	1	1	1	1	1	1
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Style	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire
Termination	Kinked Pin, Solder	Press-Fit, Solder	Press-Fit, Solder	Press-Fit, Solder	Kinked Pin, Solder	Kinked Pin, Solder
Fastening Type	Detent Lock	—	—	Detent Lock	Detent Lock	Detent Lock
Contact Length - Post	0.134" (3.40mm)	0.134" (3.40mm)	0.134" (3.40mm)	0.134" (3.40mm)	0.134" (3.40mm)	0.134" (3.40mm)
Insulation Height	0.238" (6.05mm)	0.238" (6.05mm)	0.238" (6.05mm)	0.236" (6.00mm)	0.240" (6.10mm)	0.236" (6.00mm)
Contact Shape	Square	Square	Square	Square	Square	Square
Contact Finish - Mating	Tin	Tin	Tin	Tin	Tin	Tin
Contact Material	Brass	Brass	Brass	Brass	Brass	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA9T), Nylon 9T	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation Color	Natural	Natural	Black	Gray	Natural	White
Operating Temperature	—	-25°C ~ 85°C	-25°C ~ 85°C	-25°C ~ 85°C	-25°C ~ 85°C	-25°C ~ 85°C
Current Rating (Amps)	—	3A	3A	2A	2A per Contact	1A per Contact
Voltage Rating	—	250V	250V	100V	100V	125V
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)

Engineering Selection Recommendations

All substitute parts listed maintain ROHS3 compliance or equivalent RoHS certification, ensuring regulatory alignment with modern manufacturing standards. The Molex 0894000220 is obsolete; active alternatives include TE Connectivity 440054-2, TE Connectivity 6-440054-2, JST B2B-PH-KL, Harwin M22-2200246, and Sullins SWR201-NRTN-S02-SA-WH.

TE Connectivity parts (440054-2 and 6-440054-2) offer the highest current rating at 3A and voltage rating at 250V, with press-fit termination providing alternative assembly methods. The 6-440054-2 variant features black insulation and significantly higher inventory availability (127,296 pcs).

Harwin M22-2200246 maintains kinked pin termination matching the original design and offers PA9T insulation material with enhanced thermal properties. JST B2B-PH-KL and Sullins SWR201-NRTN-S02-SA-WH provide lower current ratings (2A and 1A respectively) and are suitable for applications within their specified electrical limits.

Selection should prioritize product status (all substitutes are active), compliance certifications, and application-specific electrical requirements.

Frequently Asked Questions (FAQ)

Q: Can TE Connectivity 440054-2 directly replace Molex 0894000220 in existing designs?

A: Yes. Both parts share identical pitch (2.00mm), position count (2), shrouding (4-wall), mounting type (through-hole), and contact materials (brass with tin finish). The primary difference is termination method: TE uses press-fit while Molex uses kinked pin. PCB pad design must accommodate press-fit termination.

Q: What is the difference between TE 440054-2 and TE 6-440054-2?

A: These parts are electrically and mechanically identical. The primary distinction is insulation color (natural vs. black) and inventory availability. The 6-440054-2 has significantly higher stock levels (127,296 pcs vs. 14,837 pcs).

Q: Are there electrical rating differences between substitutes?

A: Yes. TE parts support 3A at 250V. Harwin and JST parts support 2A at 100V and 125V respectively. Sullins supports 1A at 125V. Application electrical requirements must not exceed the substitute part's ratings.

Q: Does insulation material affect compatibility?

A: Harwin M22-2200246 uses PA9T insulation versus PA66 in other parts. Both materials meet UL94 V-0 flammability requirements. PA9T offers enhanced thermal stability. This does not affect mechanical or electrical compatibility.

Q: Can I use Sullins SWR201-NRTN-S02-SA-WH in high-current applications?

A: No. Sullins is rated for 1A per contact, the lowest among substitutes. Applications requiring higher current must use TE (3A) or Harwin/JST (2A) alternatives.

Q: Are all substitutes RoHS compliant?

A: Yes. All listed substitutes meet RoHS requirements: TE, Harwin, and Sullins are ROHS3 compliant; JST is RoHS compliant.

Q: What is the significance of MSL 1 (Unlimited) rating?

A: MSL 1 indicates unlimited shelf life without moisture baking requirements. All parts, including the original Molex component, carry this rating, ensuring no special storage or handling protocols are necessary.
