0875-1B1T-P1 Equivalent & Substitute Parts

Part Overview

The 0875-1B1T-P1 is a 1-port RJ45 modular connector manufactured by Bel Fuse Inc. under the MagJack® series. This through-hole, shielded connector is designed for 10/100 Base-T Ethernet applications with 90° right-angle orientation. The part is currently active in production with 1003 units in stock. Substitute parts are identified when equivalent electrical performance, mechanical compatibility, and compliance certifications align with the original specification.

Substiute Parts

0875-1B1T-P1

Bel Fuse Inc.In Stock: 10490875-1B1T-P1 Datasheet

Current PartRFQ

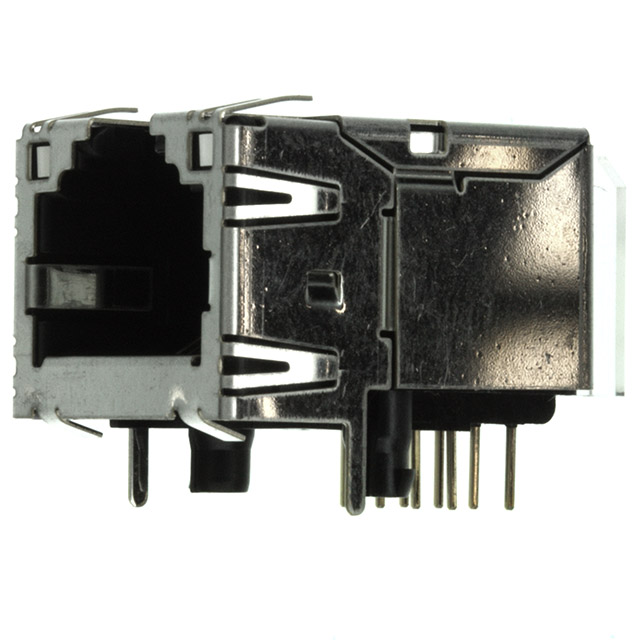

TM21R-5C-88-LP(50)

Hirose Electric Co LtdIn Stock: 20716TM21R-5C-88-LP(50) Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The TM21R-5C-88-LP(50) by Hirose Electric Co Ltd qualifies as a substitute based on the following alignment of critical parameters:

• Connector Type & Port Configuration: Both parts are RJ45 modular connectors with single-port configuration
• Mechanical Compatibility: Both feature 90° right-angle orientation, through-hole mounting, and solder termination
• Electrical Protection: Both incorporate shielding with EMI finger design
• Material Specification: Both use copper alloy contacts with gold finish and PBT housing
• Compliance: Both are ROHS3 compliant and REACH unaffected
• Functional Application: Both support Ethernet connectivity (10/100 Base-T for the main part; Cat5e for the substitute)

Parameter Comparison

Engineering Selection Recommendations

Both the 0875-1B1T-P1 and TM21R-5C-88-LP(50) meet the core electrical and mechanical requirements for RJ45 Ethernet connector applications. Selection between these parts should be based on:

• Thermal Environment: The TM21R-5C-88-LP(50) operates across a wider temperature range (-25°C to 80°C) compared to the 0875-1B1T-P1 (0°C to 70°C). Applications requiring extended low-temperature operation favor the Hirose part.
• Compliance Certification: Both parts maintain identical RoHS3 and REACH compliance status, suitable for regulated markets.
• Availability & Lead Time: Inventory levels differ between manufacturers; procurement strategy should account for supply chain requirements.
• Series Continuity: The 0875-1B1T-P1 belongs to the MagJack® series, while the substitute is part of the TM21R series. Design continuity with existing component families may influence selection.

Frequently Asked Questions (FAQ)

Q: Can the TM21R-5C-88-LP(50) directly replace the 0875-1B1T-P1 in existing designs?

A: Yes, provided the application does not require the specific LED color indicators (Orange, Green) present in the 0875-1B1T-P1. The TM21R-5C-88-LP(50) does not contain LED functionality. All other mechanical, electrical, and compliance parameters align for direct substitution.

Q: What is the difference between the number of cores per jack specification?

A: The 0875-1B1T-P1 specifies 5 cores per jack, while the TM21R-5C-88-LP(50) uses the standard 8p8c (8 position, 8 contact) RJ45 configuration. Both support Ethernet connectivity; the specification difference reflects manufacturer documentation conventions rather than functional incompatibility.

Q: Are there packaging differences between these parts?

A: The 0875-1B1T-P1 packaging is not specified in the provided data. The TM21R-5C-88-LP(50) is supplied in tray packaging. Confirm packaging requirements with your procurement process before finalizing substitution.

Q: Which part should be selected for applications operating below 0°C?

A: The TM21R-5C-88-LP(50) is rated for operation down to -25°C and is the appropriate choice for low-temperature environments. The 0875-1B1T-P1 is rated from 0°C minimum.

Q: Do both parts meet export control requirements?

A: Yes. Both parts are classified as EAR99 under U.S. export control regulations and carry identical HTSUS commodity codes (8536.69.4040), indicating equivalent trade classification.
