Molex 0870892016 Equivalent & Substitute Parts

Part Overview

The Molex 0870892016 is a rectangular connector header designed for through-hole mounting in 20-position, 2-row configurations with 2.00mm pitch. This connector is classified as obsolete, which necessitates identification of active equivalent parts for ongoing design and procurement requirements. The part operates in board-to-cable/wire applications with unshrouded, breakaway header design and push-pull fastening.

Key Parameters

Parameter	Value
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Shape	Square
Shrouding	Unshrouded
Contact Finish - Mating	Gold
Insulation Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Material Flammability Rating	UL94 V-0
Insulation Color	Black

Substitute Part Grouping Explanation

Substitution eligibility for the Molex 0870892016 is determined by strict equivalence across the following parameters:

Pitch - Mating: 0.079" (2.00mm)
Number of Positions: 20
Number of Rows: 2
Row Spacing - Mating: 0.079" (2.00mm)
Contact Type: Male Pin
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Push-Pull
Contact Shape: Square
Shrouding: Unshrouded

All identified substitute parts maintain these core electrical and mechanical parameters, ensuring functional compatibility in applications originally designed for the 0870892016.

Parameter Comparison

Parameter	Molex 0870892016	Molex 0877582016	Samtec TMM-110-03-G-D
Manufacturer	Molex	Molex	Samtec Inc.
Series	Milli-Grid 87089	Milli-Grid 87758	TMM
Product Status	Obsolete	Active	Active
Connector Type	Header, Breakaway	Header, Breakaway	Header
Contact Type	Male Pin	Male Pin	Male Pin
Pitch - Mating	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Number of Positions	20	20	20
Number of Rows	2	2	2
Row Spacing - Mating	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Mounting Type	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder
Fastening Type	Push-Pull	Push-Pull	Push-Pull
Contact Length - Mating	0.157" (4.00mm)	0.157" (4.00mm)	0.157" (4.00mm)
Contact Length - Post	0.102" (2.60mm)	0.102" (2.60mm)	0.106" (2.69mm)
Overall Contact Length	0.319" (8.10mm)	0.319" (8.10mm)	0.323" (8.20mm)
Insulation Height	0.059" (1.50mm)	0.059" (1.50mm)	0.059" (1.50mm)
Contact Shape	Square	Square	Square
Contact Finish - Mating	Gold	Gold	Gold
Contact Finish - Post	Tin-Lead	Tin	Gold
Contact Material	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze
Insulation Material	Polyamide (PA46), Nylon 4/6, Glass Filled	Polyamide (PA46), Nylon 4/6, Glass Filled	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0	UL94 V-0	Not specified
Insulation Color	Black	Black	Black
RoHS Status	RoHS non-compliant	ROHS3 Compliant	ROHS3 Compliant
Operating Temperature	Not specified	Not specified	-55°C ~ 125°C
Current Rating (Amps)	Not specified	Not specified	3.2A per Contact

Engineering Selection Recommendations

The Molex 0877582016 serves as the direct manufacturer equivalent to the obsolete 0870892016. Both parts share identical electrical and mechanical specifications within the Molex Milli-Grid product line. The 0877582016 maintains active product status and is available in higher inventory quantities. This part is suitable for direct replacement in existing designs without modification.

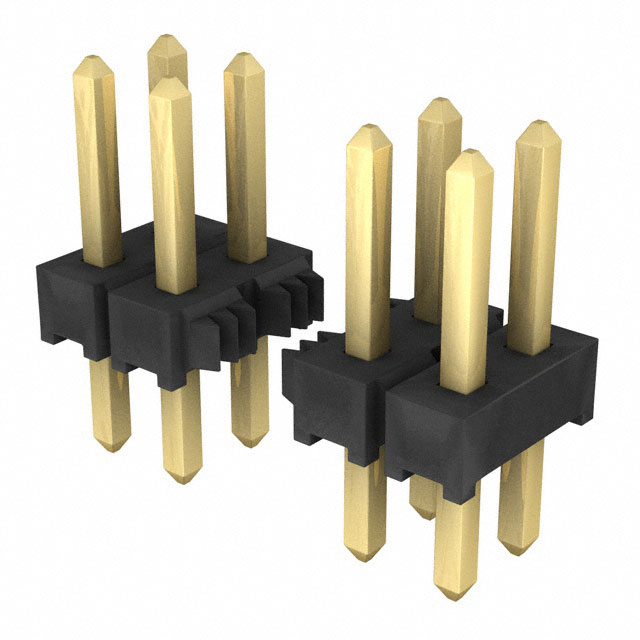

The Samtec TMM-110-03-G-D represents a cross-manufacturer alternative that maintains all critical mating and mounting parameters. This part differs in insulation material composition (Liquid Crystal Polymer versus Polyamide) and contact post finish (Gold versus Tin-Lead). The Samtec part provides ROHS3 compliance and specified operating temperature range (-55°C ~ 125°C) with rated current capacity (3.2A per contact), offering enhanced environmental and thermal specifications compared to the original part.

Both substitute parts carry ROHS3 compliance and REACH unaffected status, addressing regulatory requirements that the original obsolete part does not meet.

Frequently Asked Questions (FAQ)

Q: Can the Molex 0877582016 be used as a direct replacement for the 0870892016?

A: Yes. The 0877582016 maintains identical pitch (2.00mm), position count (20), row configuration (2), contact type (male pin), mounting method (through hole), and fastening mechanism (push-pull). Both parts are from the Molex Milli-Grid series and are mechanically and electrically interchangeable.

Q: What are the key differences between the Molex 0877582016 and Samtec TMM-110-03-G-D?

A: The primary differences are insulation material (Polyamide PA46 versus Liquid Crystal Polymer), contact post finish (Tin versus Gold), and specified operating temperature range. The Samtec part provides rated current capacity (3.2A per contact) and operating temperature specification (-55°C ~ 125°C), while the Molex part does not specify these parameters. Both maintain identical mating pitch, position count, and row spacing.

Q: Are there packaging differences between substitute parts?

A: The Molex 0877582016 is supplied in Tray packaging, while the Samtec TMM-110-03-G-D is supplied in Bulk packaging. Packaging format does not affect electrical or mechanical compatibility.

Q: Which substitute part should be selected for new designs?

A: Selection depends on application requirements. For direct replacement of existing designs, the Molex 0877582016 is recommended due to series continuity and identical specifications. For applications requiring specified operating temperature range or rated current capacity, the Samtec TMM-110-03-G-D provides these parameters.

Q: Do all substitute parts meet current regulatory requirements?

A: The Molex 0877582016 and Samtec TMM-110-03-G-D both carry ROHS3 compliance and REACH unaffected status. The original 0870892016 is RoHS non-compliant, making substitution necessary for applications subject to RoHS regulations.
