Equivalent & Substitute Parts for Molex 0847300001

Part Overview

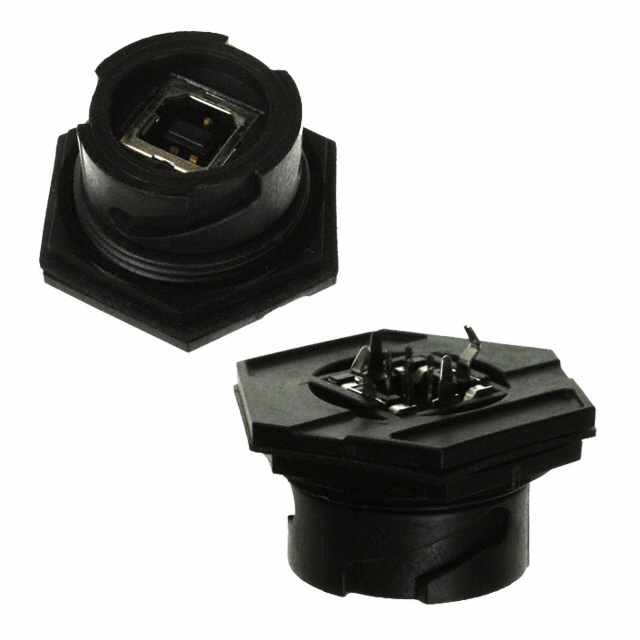

The Molex 0847300001 is a USB-B (USB TYPE-B) USB 2.0 receptacle connector with 4 positions, designed for panel mount and through-hole applications. This connector features a bulkhead mounting configuration with board lock and circular bayonet coupling, rated for IP67 ingress protection. The part is currently listed as obsolete, making identification of equivalent and substitute components essential for ongoing design support and procurement planning.

Substiute Parts

0847300001

MolexIn Stock: 9360847300001 Datasheet

Current PartRFQ

SCRU-02

Samtec Inc.In Stock: 834SCRU-02 Datasheet

MFR RecommendedRFQ

0847300010

MolexIn Stock: 11290847300010 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the Molex 0847300001 is categorized into two distinct groups based on functional equivalence:

Parametric Equivalent (Direct Replacement): The Molex 0847300010 maintains identical electrical and mechanical specifications as the main part, including connector type (USB-B receptacle), contact count (4), USB 2.0 compliance, panel mount through-hole configuration, bulkhead mounting feature, IP67 ingress protection, operating temperature range (-40°C ~ 80°C), current rating (1A), and voltage rating (30VAC). The primary difference is product status (active versus obsolete) and packaging format (bulk). This part is suitable for direct substitution in applications requiring the same form factor and electrical performance.

Functional Adapter (Conversion Solution): The Samtec Inc. SCRU-02 serves as a functional adapter rather than a direct replacement. This part converts from USB-B receptacle to USB-A receptacle, enabling compatibility with USB-A connector interfaces. While it maintains panel mount and bulkhead mounting characteristics, it functions as an interface converter rather than a direct connector replacement. This solution is applicable only when system redesign permits USB-A interface adoption.

Parameter Comparison

Engineering Selection Recommendations

For Direct Replacement Applications: The Molex 0847300010 is the appropriate selection when maintaining identical connector interface and form factor is required. This part is currently in active production status with higher inventory availability (1110 pcs) compared to the obsolete 0847300001 (848 pcs). Both parts maintain ROHS3 compliance and identical electrical ratings, ensuring functional compatibility in existing designs without circuit modification.

For Interface Conversion Applications: The Samtec SCRU-02 adapter is applicable only when system architecture permits conversion from USB-B to USB-A interface. This solution requires design review to confirm USB-A compatibility at the host or device end. The adapter maintains active product status and ROHS3 compliance but does not provide equivalent electrical parameter specifications for all ratings.

Compliance Considerations: All three parts maintain ROHS3 compliance, MSL rating of 1 (unlimited moisture sensitivity), REACH unaffected status, and EAR99 export classification, ensuring regulatory consistency across substitution options.

Frequently Asked Questions (FAQ)

Q: Can the Molex 0847300010 be used as a direct replacement for the 0847300001?

A: Yes. Both parts are USB-B receptacle connectors with identical electrical specifications (USB 2.0, 4 contacts, 1A current rating, 30VAC voltage rating), mechanical configuration (panel mount, through-hole, bulkhead mounting), and environmental ratings (IP67, -40°C ~ 80°C operating temperature). The primary difference is product status and packaging. The 0847300010 is currently in active production.

Q: What is the difference between the Molex 0847300010 and the Samtec SCRU-02?

A: The Molex 0847300010 is a direct connector replacement maintaining USB-B receptacle interface. The Samtec SCRU-02 is a functional adapter that converts USB-B receptacle to USB-A receptacle. The adapter is not a direct replacement but rather an interface conversion solution suitable only when USB-A compatibility is acceptable in the application.

Q: Are all substitute parts ROHS3 compliant?

A: Yes. Both the Molex 0847300010 and Samtec SCRU-02 maintain ROHS3 compliance, matching the compliance status of the original 0847300001 part.

Q: What packaging options are available for the substitute parts?

A: The Molex 0847300010 is available in bulk packaging with 1110 pcs in current inventory. The Samtec SCRU-02 packaging format is not specified in the available data but has 740 pcs in current inventory.

Q: Can the Samtec SCRU-02 adapter be used in applications requiring IP67 ingress protection?

A: The Samtec SCRU-02 adapter does not specify an ingress protection rating. Applications requiring IP67 protection should use the Molex 0847300010 direct replacement, which maintains the IP67 specification of the original part.
