0826-1X1T-80-F RJ45 Modular Connector Equivalent & Substitute Parts

Part Overview

The 0826-1X1T-80-F is a 1-port RJ45 through-hole modular connector manufactured by Bel Fuse Inc. under the MagJack® series. This connector supports 10/100/1000 Base-T Ethernet with AutoMDIX functionality and is designed for PCB integration with solder termination. The part is currently active in production with 1064 units in stock. Equivalent and substitute parts are identified to provide component sourcing flexibility while maintaining electrical and mechanical compatibility within the specified parameter ranges.

Key Parameters

Parameter	Value
Connector Type	RJ45
Number of Ports	1
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Applications	10/100/1000 Base-T, AutoMDIX
Number of Cores per Jack	8
Shielding	Shielded, EMI Finger
Contact Finish	Gold
Operating Temperature	0°C ~ 70°C
RoHS Status	ROHS3 Compliant

Substitute Part Grouping Explanation

Substitute parts for the 0826-1X1T-80-F are qualified based on the following critical parameters:

Connector Type & Port Configuration: RJ45, single port, 8-core jack
Mounting & Orientation: Through-hole PCB mounting, 90° right-angle orientation
Electrical Performance: 10/100/1000 Base-T Ethernet support with AutoMDIX capability
Termination Method: Solder termination for PCB integration
Shielding & EMI Protection: Shielded design with EMI finger
Contact Material & Finish: Gold-plated contacts for reliable signal transmission
Operating Temperature Range: 0°C to 70°C
Regulatory Compliance: RoHS3 compliance

Parts meeting these criteria are classified as direct substitutes. Variations in housing material composition, contact finish thickness, shield material, or LED color specifications do not affect functional compatibility within the defined electrical and mechanical parameters.

Parameter Comparison

Parameter	0826-1X1T-80-F	0826-1X1T-M1-F	JK0-0145NL
Manufacturer	Bel Fuse Inc.	Bel Fuse Inc.	Pulse Electronics
Series	MagJack®	MagJack®	PULSEJACK™ JK0
Connector Type	RJ45	RJ45	RJ45
Number of Ports	1	1	1
Mounting Type	Through Hole	Through Hole	Through Hole
Orientation	90° Angle (Right)	90° Angle (Right)	90° Angle (Right)
Termination	Solder	Solder	Solder
Applications	10/100/1000 Base-T, AutoMDIX	10/100/1000 Base-T, AutoMDIX	10/100/1000 Base-TX, AutoMDIX
Number of Cores per Jack	8	8	8
Shielding	Shielded, EMI Finger	Shielded, EMI Finger	Shielded, EMI Finger
Contact Material	Copper Alloy	Copper Alloy	Phosphor Bronze
Contact Finish	Gold	Gold	Gold
Operating Temperature	0°C ~ 70°C	0°C ~ 70°C	0°C ~ 70°C
Height Above Board	0.536" (13.61mm)	0.536" (13.61mm)	0.546" (13.87mm)
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	RoHS Compliant
Product Status	Active	Active	Active

Engineering Selection Recommendations

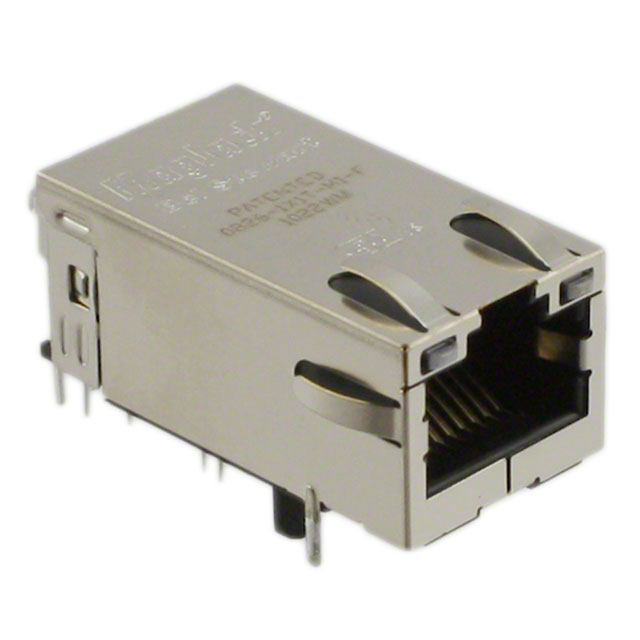

0826-1X1T-M1-F (Bel Fuse Inc.)

This part is a direct equivalent to the 0826-1X1T-80-F. Both are manufactured by Bel Fuse Inc. within the MagJack® series and share identical electrical specifications, mounting characteristics, and regulatory compliance (ROHS3). The parts differ only in housing material composition (Polyamide PA46 vs. Polyamide PA) and contact finish thickness specification. Both parts are active in production with full inventory availability. Selection between these two parts is determined by specific housing material requirements for the application.

JK0-0145NL (Pulse Electronics)

This part is functionally compatible as a substitute for the 0826-1X1T-80-F. Both support 10/100/1000 Ethernet with AutoMDIX, feature identical mounting orientation, solder termination, and shielded EMI design. The JK0-0145NL operates within the same temperature range and maintains RoHS compliance. Differences include manufacturer (Pulse Electronics vs. Bel Fuse Inc.), contact material (Phosphor Bronze vs. Copper Alloy), contact finish thickness (15.0µin vs. 50.0µin), shield material (Brass vs. Copper Alloy), and height above board (0.546" vs. 0.536"). The JK0-0145NL is classified as 10/100/1000 Base-TX rather than Base-T. These variations do not affect functional compatibility within the specified electrical and mechanical parameters.

Frequently Asked Questions (FAQ)

Q: Can the 0826-1X1T-M1-F be used as a direct replacement for the 0826-1X1T-80-F?

A: Yes. Both parts are manufactured by Bel Fuse Inc., share identical electrical and mechanical specifications, and are both ROHS3 compliant. The housing material composition differs (PA46 vs. PA), but this does not affect functional compatibility for standard PCB integration applications.

Q: What are the key differences between the 0826-1X1T-80-F and JK0-0145NL?

A: The primary differences are manufacturer (Bel Fuse Inc. vs. Pulse Electronics), contact material (Copper Alloy vs. Phosphor Bronze), contact finish thickness (50.0µin vs. 15.0µin), shield material (Copper Alloy vs. Brass), and height above board (0.536" vs. 0.546"). Both parts support 10/100/1000 Ethernet with AutoMDIX and maintain compatible electrical performance within the specified operating parameters.

Q: Are all three parts suitable for the same PCB footprint?

A: The 0826-1X1T-80-F and 0826-1X1T-M1-F share identical height above board (0.536"). The JK0-0145NL has a slightly greater height (0.546"), which may require PCB layout verification to ensure clearance compatibility. All three parts maintain the same through-hole mounting orientation and solder termination method.

Q: Do all substitute parts meet the same regulatory requirements?

A: The 0826-1X1T-80-F and 0826-1X1T-M1-F are both ROHS3 compliant. The JK0-0145NL is RoHS compliant. All three parts are REACH unaffected and classified as EAR99 for export control purposes.

Q: What is the inventory status for each part?

A: The 0826-1X1T-80-F has 1064 units in stock. The 0826-1X1T-M1-F has 19154 units in stock. The JK0-0145NL has 1313 units in stock. All parts are listed as active products.
