Amphenol RF 082-346-RFX N Type Coaxial Connector Equivalent & Substitute Parts

Part Overview

The Amphenol RF 082-346-RFX is an N Type Connector Jack with female socket configuration, designed for 50 Ohm RF applications. This panel mount crimp connector operates across frequencies up to 11 GHz and is rated for 1500 V with an operating temperature range of -65°C to 165°C. The connector is ROHS3 compliant and REACH affected, with active product status. Substitute parts are identified to provide alternative sourcing options while maintaining electrical and mechanical compatibility within the specified parameter envelope.

Substiute Parts

082-346-RFX

Amphenol RFIn Stock: 1044082-346-RFX Datasheet

Current PartRFQ

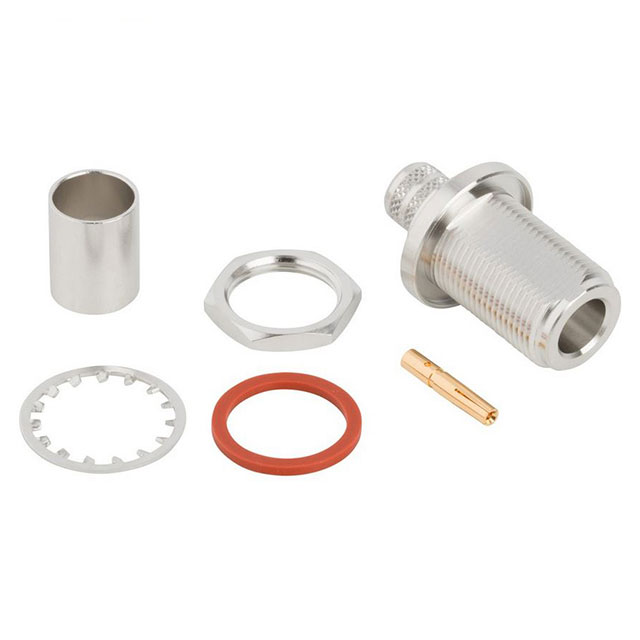

172108

Amphenol RFIn Stock: 947172108 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 082-346-RFX are identified based on strict electrical and mechanical parameter equivalence. The primary substitution criteria include:

Electrical Parameters:

• Connector style (N Type)
• Connector type (Jack, Female Socket)
• Impedance (50 Ohms)
• Frequency maximum (11 GHz)
• Voltage rating (1500 V)
• Insertion loss (0.15 dB)

Mechanical Parameters:

• Contact termination method (Crimp)
• Shield termination method (Crimp)
• Mounting type (Panel Mount)
• Mounting feature (Bulkhead - Front Side Nut)
• Fastening type (Threaded)
• Mating cycles (500)

Environmental & Compliance Parameters:

• Operating temperature range (-65°C ~ 165°C)
• RoHS status (ROHS3 Compliant)
• REACH status (REACH Affected)
• Moisture sensitivity level (MSL 1 - Unlimited)

The substitute part 172108 maintains full equivalence across all critical electrical, mechanical, and environmental parameters. Variations in packaging format and body finish do not affect functional compatibility.

Parameter Comparison

Engineering Selection Recommendations

Both the 082-346-RFX and 172108 are active products manufactured by Amphenol RF with full ROHS3 compliance and REACH affected status. Selection between these parts is based on availability and packaging requirements rather than electrical or mechanical performance differences.

The 082-346-RFX maintains 935 pieces in current inventory, while the 172108 substitute maintains 897 pieces in stock. Both connectors deliver identical electrical performance across the full 11 GHz frequency range with 0.15 dB insertion loss and 1500 V voltage rating.

The body finish variation between Nickel (082-346-RFX) and White Bronze (172108) does not affect electrical performance or environmental protection, as both finishes provide equivalent corrosion resistance and weatherproof ingress protection. The packaging variation (unspecified versus Bag) reflects only the distribution format and does not impact connector functionality or installation.

Frequently Asked Questions (FAQ)

Q: Are the 082-346-RFX and 172108 electrically interchangeable?

A: Yes. Both connectors maintain identical electrical specifications including 50 Ohm impedance, 11 GHz maximum frequency, 0.15 dB insertion loss, and 1500 V voltage rating. They are direct functional equivalents for RF applications.

Q: What is the difference between the body finishes?

A: The 082-346-RFX features Nickel body finish, while the 172108 features White Bronze body finish. Both finishes provide equivalent corrosion resistance and weatherproof protection. The finish variation does not affect electrical performance or environmental durability.

Q: Can these connectors be used with the same cable types?

A: Yes. Both connectors support the identical cable group: RG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, and 393. Cable compatibility is fully maintained between the two parts.

Q: Are both parts RoHS and REACH compliant?

A: Yes. Both the 082-346-RFX and 172108 are ROHS3 compliant and REACH affected. They meet identical regulatory requirements for hazardous substance restrictions.

Q: What is the operating temperature range for both connectors?

A: Both connectors operate across -65°C to 165°C. Temperature performance is identical between the two parts.

Q: How many mating cycles are rated for these connectors?

A: Both connectors are rated for 500 mating cycles, providing equivalent mechanical durability and service life.

Q: Does packaging format affect connector performance?

A: No. Packaging format (unspecified versus Bag) reflects only the distribution method and does not impact connector functionality, installation, or electrical performance.

Q: Are the crimp termination specifications identical?

A: Yes. Both connectors use crimp termination for both contact and shield connections. Crimp tooling and procedures are identical for both parts.
