Molex 0791070013 Equivalent & Substitute Parts

Part Overview

The Molex 0791070013 is a 28-position receptacle connector with 0.079" (2.00mm) pitch, designed for through-hole board-to-board or cable applications. This connector features gold-plated mating contacts, solder termination, and push-pull fastening. The part is classified as obsolete, making equivalent substitutes necessary for new designs and ongoing production support. Active alternatives from major manufacturers provide enhanced compliance and performance characteristics while maintaining electrical and mechanical compatibility.

Key Parameters

Parameter	Value
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	28
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Operating Temperature	-55°C ~ 125°C
Current Rating	1A
Voltage Rating	125V

Substitute Part Grouping Explanation

Substitution eligibility is determined by strict adherence to the following core parameters:

Critical Parameters (Must Match):

Connector type: Receptacle
Contact type: Female Socket
Number of positions: 28
Pitch - mating: 0.079" (2.00mm)
Number of rows: 2
Row spacing - mating: 0.079" (2.00mm)
Mounting type: Through Hole
Termination: Solder
Fastening type: Push-Pull
Contact finish - mating: Gold

Allowable Variations:

Operating temperature range (may be narrower or wider)
Current rating (may be equal or higher)
Voltage rating (may be equal or higher)
Contact finish - post (Tin or Gold acceptable)
Insulation material (thermoplastic or engineered polymer acceptable)
Contact material (Phosphor Bronze or Beryllium Copper acceptable)
Insulation height (within ±0.010")
Contact length - post (within ±0.020")
RoHS compliance status (non-compliant or compliant acceptable)

All substitute parts listed meet these criteria and are confirmed as direct functional equivalents for the Molex 0791070013.

Parameter Comparison

Manufacturer	Part Number	Series	Positions	Pitch	Current Rating	Voltage Rating	Operating Temp	Contact Finish - Post	RoHS Status	Product Status
Molex	0791070013	Milli-Grid 79107	28	0.079" (2.00mm)	1A	125V	-55°C ~ 125°C	Tin-Lead	Non-compliant	Obsolete

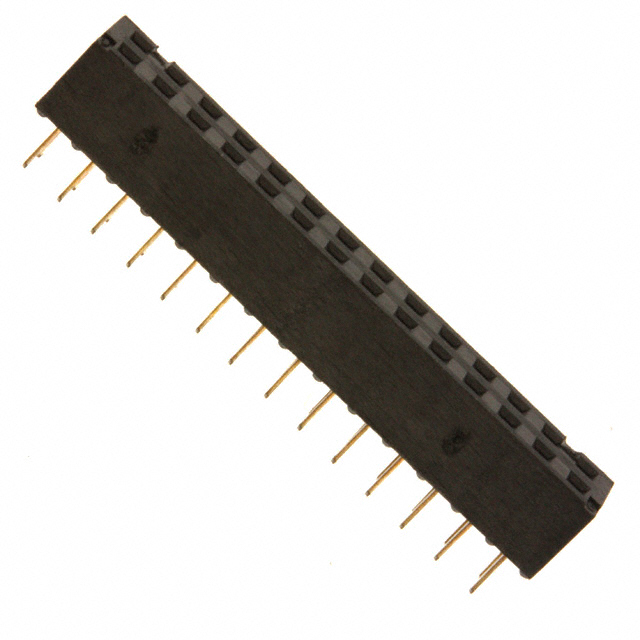

Amphenol ICC (FCI)	63453-128LF	Minitek® 2.00mm	28	0.079" (2.00mm)	2A	200V	-55°C ~ 125°C	Tin	Compliant	Active
Mill-Max Manufacturing	833-13-028-10-002000	833	28	0.079" (2.00mm)	3A	—	-55°C ~ 125°C	Gold	Non-compliant	Active
Hirose Electric	A3C-28DA-2DSA(71)	A3	28	0.079" (2.00mm)	1A	200VAC	-55°C ~ 85°C	Tin	Compliant	Active
Hirose Electric	A3C-28DA-2DSC(71)	A3	28	0.079" (2.00mm)	1A	200VAC	-55°C ~ 85°C	Tin	Compliant	Active
Harwin Inc.	M22-7141442	M22	28	0.079" (2.00mm)	2A	500VAC	-40°C ~ 105°C	Tin	ROHS3 Compliant	Active

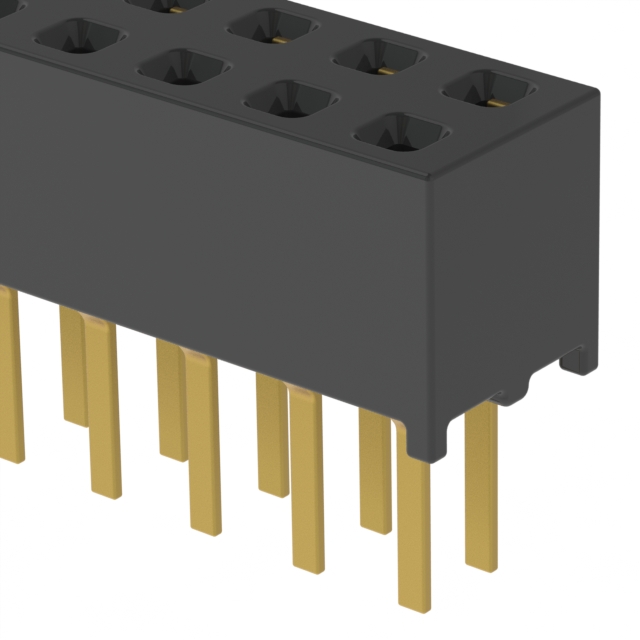

Samtec Inc.	MMS-114-01-H-DV	MMS	28	0.079" (2.00mm)	3.9A per Contact	—	-55°C ~ 125°C	Gold	ROHS3 Compliant	Active
Samtec Inc.	MMS-114-01-L-DV-04	MMS	28 (27 Loaded)	0.079" (2.00mm)	3.9A per Contact	—	-55°C ~ 125°C	Tin	—	Active
Samtec Inc.	MMS-114-01-L-DV-07	MMS	28 (27 Loaded)	0.079" (2.00mm)	3.9A per Contact	—	-55°C ~ 125°C	Tin	ROHS3 Compliant	Active
Samtec Inc.	MMS-114-01-LM-DV	MMS	28	0.079" (2.00mm)	3.9A per Contact	—	-55°C ~ 125°C	Tin	—	Active
Samtec Inc.	MMS-114-01-S-DV	MMS	28	0.079" (2.00mm)	3.9A per Contact	—	-55°C ~ 125°C	Tin	—	Active

Engineering Selection Recommendations

For RoHS Compliance Requirements: Select from Amphenol ICC 63453-128LF, Hirose Electric A3C-28DA-2DSA(71), A3C-28DA-2DSC(71), Harwin M22-7141442, or Samtec MMS-114-01-H-DV and MMS-114-01-L-DV-07. These parts carry RoHS or ROHS3 compliance certifications.

For Extended Temperature Range (-55°C to 125°C): Molex 0791070013, Amphenol ICC 63453-128LF, Mill-Max 833-13-028-10-002000, and all Samtec MMS series variants maintain the full -55°C to 125°C operating range. Hirose A3 series and Harwin M22 series operate within narrower ranges.

For Higher Current Capacity: Samtec MMS series (3.9A per contact), Mill-Max 833-13-028-10-002000 (3A), and Amphenol ICC 63453-128LF (2A) exceed the original 1A rating.

For Higher Voltage Rating: Harwin M22-7141442 (500VAC) and Amphenol ICC 63453-128LF (200V) provide enhanced voltage performance over the original 125V specification.

For Active Production Support: All substitute parts listed carry Active product status, ensuring ongoing availability and manufacturing support.

Frequently Asked Questions (FAQ)

Q: Can I use a substitute part with a different current rating? A: Yes. Substitute parts with equal or higher current ratings are functionally compatible. The Molex 0791070013 specifies 1A; substitutes rated at 2A, 3A, or 3.9A per contact will operate safely in applications requiring 1A or less.

Q: Are the Samtec MMS-114-01-L-DV-04 and MMS-114-01-L-DV-07 compatible if only 27 positions are loaded instead of 28? A: These parts are mechanically and electrically compatible with the 28-position Molex 0791070013. The "27 Loaded" designation indicates the connector body accommodates 28 positions but only 27 are populated with contacts. This does not affect compatibility with fully populated 28-position mating connectors.

Q: What is the difference between Hirose A3C-28DA-2DSA(71) and A3C-28DA-2DSC(71)? A: Both are 28-position receptacles with identical electrical specifications. The primary difference is packaging: A3C-28DA-2DSA(71) is supplied in Tray packaging, while A3C-28DA-2DSC(71) is supplied in Tube packaging. Electrical and mechanical performance are equivalent.

Q: Does the contact finish material affect compatibility? A: No. The Molex 0791070013 features Tin-Lead post finish; substitutes with Tin or Gold post finishes are fully compatible. Post finish does not affect mating performance with standard connector plugs.

Q: Which substitute offers the best compliance profile? A: Amphenol ICC 63453-128LF, Hirose A3C-28DA-2DSA(71), A3C-28DA-2DSC(71), Harwin M22-7141442, and Samtec MMS-114-01-L-DV-07 all carry RoHS or ROHS3 compliance certifications, meeting modern regulatory requirements.

Q: Can I substitute the Molex 0791070013 in automotive applications? A: Yes. The original part lists automotive applications. Amphenol ICC 63453-128LF, Hirose A3 series, Harwin M22-7141442, and Samtec MMS series are all suitable for general purpose and industrial applications. Verify specific automotive qualification requirements with your application engineer.

Q: What is the impact of operating temperature range differences? A: The Molex 0791070013 operates -55°C to 125°C. Hirose A3 series and Harwin M22 operate within narrower ranges (-55°C to 85°C and -40°C to 105°C respectively). Select substitutes based on your application's actual operating temperature requirements.
