Molex 0768660013 SAS Mini 2.0 Receptacle Connector - Equivalent & Substitute Parts

Part Overview

The Molex 0768660013 is a 144-position SAS Mini 2.0 receptacle connector with cage, configured as a ganged (4 x 1) assembly for press-fit through-hole mounting in right-angle orientation. This connector is part of the iPass+ HD 76866 series and features EMI shielding with gold-plated contacts.

The 0768660013 is classified as obsolete. Identifying equivalent substitute parts is necessary to maintain design continuity and ensure component availability for new production runs, repairs, and system upgrades where this connector specification is required.

Substiute Parts

0768660013

MolexIn Stock: 12120768660013 Datasheet

Current PartRFQ

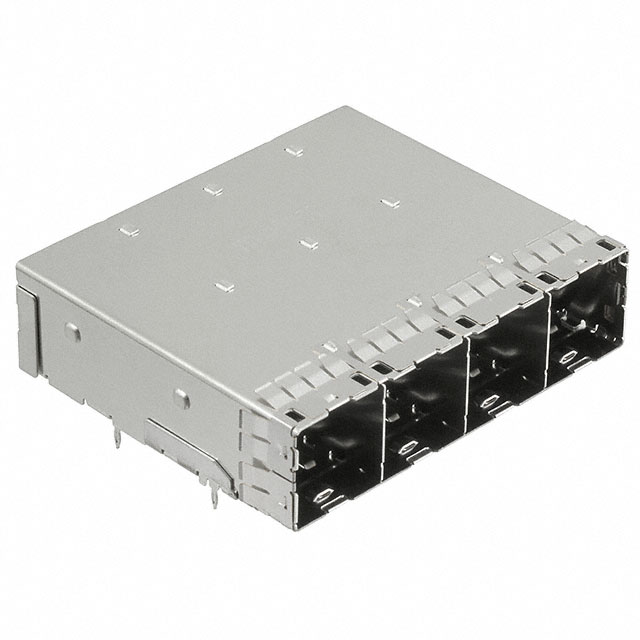

0768661013

MolexIn Stock: 14850768661013 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Molex 0768660013 is determined by the following critical parameters:

• Connector Type: SAS, Mini 2.0 (electrical interface standard)
• Number of Positions: 144 (36 x 4) (contact count and arrangement)
• Mounting Type: Through Hole, Right Angle (PCB integration method)
• Termination: Press-Fit (connection mechanism)
• Contact Finish: Gold at 30.0µin (0.76µm) (electrical performance and reliability)
• Series Compatibility: iPass+ HD 76866 (mechanical and electrical alignment)
• Compliance: ROHS3, MSL 1, REACH Unaffected (regulatory and environmental requirements)

The substitute part 0768661013 maintains electrical and mechanical compatibility through identical connector type, position count, mounting method, termination style, contact specifications, and series designation. The primary difference is the ganged configuration (1 x 4 versus 4 x 1), which represents an alternative physical arrangement of the same 144-position assembly while preserving all functional and electrical characteristics.

Parameter Comparison

Engineering Selection Recommendations

The Molex 0768661013 is the designated substitute for the obsolete 0768660013. Selection is supported by the following engineering criteria:

Product Status: The 0768661013 maintains active product status with current manufacturing and inventory availability (1442 pcs in stock), whereas the 0768660013 is obsolete. This ensures long-term supply chain viability and manufacturing support.

Electrical Compatibility: Both parts maintain identical SAS Mini 2.0 connector specifications, 144-position contact count, gold contact finish at 30.0µin thickness, and press-fit termination. These parameters ensure direct electrical interface compatibility with mating connectors and PCB traces.

Mechanical Compatibility: Both parts feature through-hole, right-angle mounting within the iPass+ HD 76866 series. The ganged configuration difference (4 x 1 versus 1 x 4) represents alternative physical arrangement options for the same 144-position assembly, accommodating different PCB layout requirements while maintaining functional equivalence.

Regulatory Compliance: Both parts are ROHS3 compliant, MSL 1 rated, and REACH unaffected, meeting current environmental and regulatory requirements for electronic component procurement and deployment.

Frequently Asked Questions (FAQ)

Q: Can the 0768661013 directly replace the 0768660013 in existing designs?

A: Yes, provided PCB layout accommodates the alternative ganged configuration (1 x 4 versus 4 x 1). The electrical interface, contact specifications, mounting method, and termination are identical. Physical board space and connector orientation must be verified against the specific PCB design.

Q: What is the difference between the 4 x 1 and 1 x 4 ganged configurations?

A: Both configurations contain 144 positions (36 x 4) with identical electrical and mechanical specifications. The difference is the physical arrangement of the four connector modules: 4 x 1 arranges modules in a 4-module row, while 1 x 4 arranges them in a 4-module column. This affects PCB footprint and connector orientation but not electrical performance.

Q: Are there any feature differences between these parts?

A: The 0768660013 includes a board guide feature in addition to EMI shielding, while the 0768661013 includes EMI shielding. Both provide electromagnetic interference protection. The board guide on the main part provides additional mechanical alignment during assembly. Verify whether the board guide is required for your specific application.

Q: What is the inventory status for these parts?

A: The 0768660013 (obsolete) has 1145 pcs available as new original stock. The 0768661013 (active) has 1442 pcs available as new original stock. For new designs and long-term production, the active 0768661013 is recommended.

Q: Are both parts compliant with current environmental regulations?

A: Yes. Both parts are ROHS3 compliant, MSL 1 rated (unlimited moisture exposure), and REACH unaffected, meeting current environmental and regulatory requirements for electronic component procurement.

Q: What is the contact finish specification for both parts?

A: Both parts feature gold contact finish at 30.0µin (0.76µm) thickness, ensuring consistent electrical performance, corrosion resistance, and reliability in SAS Mini 2.0 applications.
