Molex 0747360211 XFP Cage Connector with Heat Sink – Equivalent & Substitute Parts

Part Overview

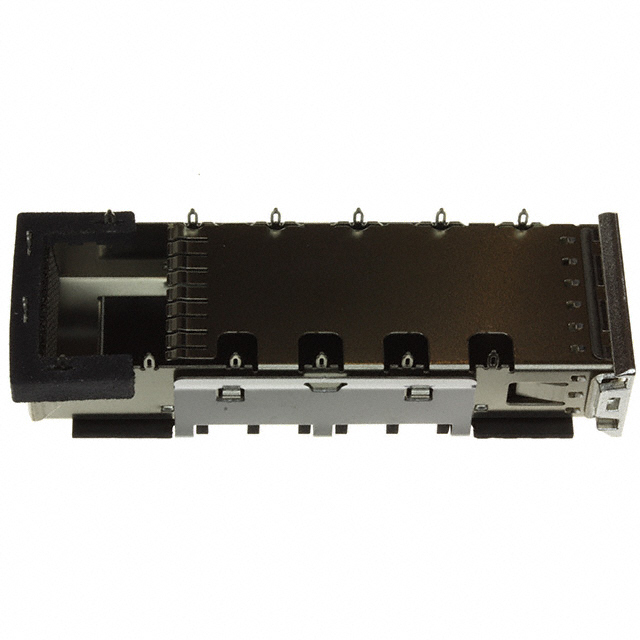

The Molex 0747360211 is a Position XFP Cage with Heat Sink Connector featuring press-fit through-hole mounting in a right-angle configuration. This component is classified as obsolete, making identification of active equivalent parts essential for ongoing design support and procurement continuity. The part belongs to the 74736 series of pluggable connectors and maintains ROHS3 compliance with unlimited moisture sensitivity rating (MSL 1).

Substiute Parts

0747360211

MolexIn Stock: 8420747360211 Datasheet

Current PartRFQ

0747360221

MolexIn Stock: 9810747360221 Datasheet

MFR RecommendedRFQ

0747360222

MolexIn Stock: 11160747360222 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Molex 0747360211 is determined by strict alignment across the following critical parameters:

• Connector Type: XFP
• Connector Style: Cage with Heat Sink
• Mounting Type: Through Hole, Right Angle
• Termination Method: Press-Fit
• Series: 74736
• RoHS Compliance: ROHS3 Compliant
• MSL Rating: 1 (Unlimited)

The two identified substitute parts—0747360221 and 0747360222—maintain identical electrical and mechanical specifications across all core parameters. The primary distinction between these parts lies in packaging configuration (Tray versus Bulk) and product status (both Active versus Obsolete). Both substitute parts include EMI Shielding as an additional feature not specified in the original part documentation.

Parameter Comparison

Engineering Selection Recommendations

Both substitute parts 0747360221 and 0747360222 are functionally equivalent to the obsolete 0747360211 across all specified electrical and mechanical parameters. Selection between the two active alternatives should be based on procurement requirements:

• 0747360221 is supplied in Tray packaging and is recommended for standard production environments requiring organized component handling.
• 0747360222 is supplied in Bulk packaging and is suitable for high-volume applications or inventory consolidation scenarios.

Both parts maintain ROHS3 compliance and unlimited moisture sensitivity rating, ensuring compatibility with current regulatory requirements and environmental specifications. The addition of EMI Shielding in both substitute parts provides enhanced electromagnetic interference protection compared to the original specification.

Frequently Asked Questions (FAQ)

Q: Can 0747360221 and 0747360222 be used interchangeably with 0747360211?

A: Yes. Both substitute parts maintain identical electrical and mechanical specifications across connector type, mounting configuration, termination method, and compliance ratings. The difference is packaging format only.

Q: What is the primary reason for substitution?

A: The original part 0747360211 is classified as obsolete. The substitute parts 0747360221 and 0747360222 are active products from the same manufacturer and series, ensuring continued availability and support.

Q: How do packaging differences affect component selection?

A: Packaging affects handling, storage, and procurement logistics but does not impact electrical or mechanical performance. Tray packaging (0747360221) provides organized component presentation, while Bulk packaging (0747360222) is suited for high-volume consolidation.

Q: Are there compliance differences between the original and substitute parts?

A: No. All three parts maintain identical RoHS3 compliance status and MSL 1 (Unlimited) moisture sensitivity rating.

Q: What is the significance of EMI Shielding in the substitute parts?

A: EMI Shielding is specified in both substitute parts but not documented in the original part specification. This feature provides additional electromagnetic interference protection and represents an enhancement in the active product line.
