Phoenix Contact 0719155 Terminal Block Equivalent & Substitute Parts

Part Overview

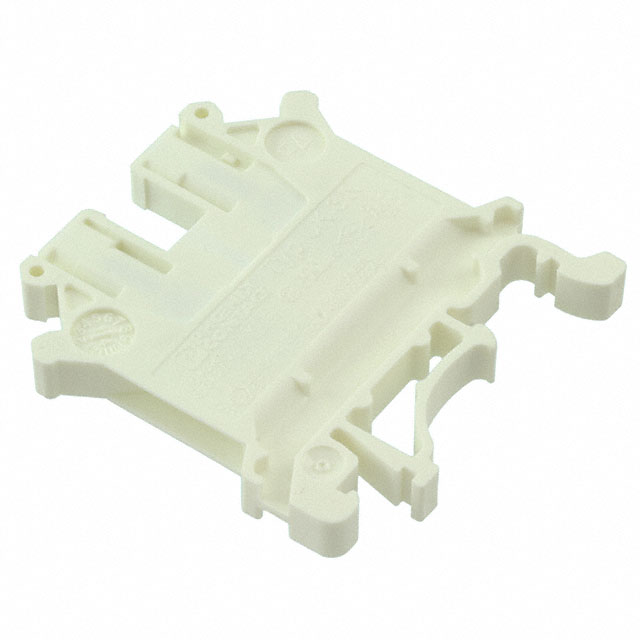

The Phoenix Contact 0719155 is a 2-position feed-through terminal block connector rated for 12-28 AWG wire gauges, with screw termination and polyamide insulation. This component is classified as obsolete, making identification of active equivalent parts essential for ongoing system maintenance and new designs. The CLIPLINE UK series provides standardized connectivity for industrial control and distribution applications requiring 24 A (IEC) / 20 A (UL) current capacity and 800 V (IEC) / 600 V (UL) voltage ratings.

Substiute Parts

0719155

Phoenix ContactIn Stock: 8310719155 Datasheet

Current PartRFQ

3001501

Phoenix ContactIn Stock: 16983001501 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 0719155 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Series: CLIPLINE UK
• Number of Positions: 2
• Number of Levels: 1
• Terminal Width: 5.2 mm
• Termination Style: Screw
• Wire Gauge Range: 12-28 AWG (0.2-4 mm²)
• Current Rating (IEC): 24 A
• Voltage Rating (IEC): 800 V
• Current Rating (UL): 20 A
• Voltage Rating (UL): 600 V
• Material - Insulation: Polyamide (PA), Nylon
• Flammability Rating: UL94 V-2
• Stripping Length: 8 mm
• Type: Feed Through

The substitute part Phoenix Contact 3001501 meets all mandatory matching parameters. The only permitted variation is color (white to gray) and product status transition (obsolete to active), which do not affect electrical or mechanical compatibility.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 3001501 is the direct functional equivalent to the obsolete 0719155. Both components are ROHS3 compliant and carry identical electrical and mechanical specifications within the CLIPLINE UK series. The 3001501 is currently in active production status with higher inventory availability (1648 pcs vs. 814 pcs), ensuring supply chain continuity.

The color difference (white vs. gray) is a cosmetic variation that does not affect electrical performance, mechanical fit, or thermal characteristics. Both components maintain UL94 V-2 flammability ratings and identical current/voltage specifications across IEC and UL standards.

For applications requiring the original white color specification, the 0719155 remains available in existing inventory. For new designs or long-term system support, the 3001501 is the recommended selection due to active product status and superior stock availability.

Frequently Asked Questions (FAQ)

Q: Can Phoenix Contact 3001501 be used as a direct replacement for 0719155?

A: Yes. The 3001501 is electrically and mechanically equivalent to the 0719155. Both components share identical ratings (24 A IEC / 20 A UL, 800 V IEC / 600 V UL), wire gauge capacity (12-28 AWG), terminal geometry (5.2 mm width), and insulation material (Polyamide UL94 V-2). The only difference is color (gray vs. white) and product status (active vs. obsolete).

Q: Does the color difference between white (0719155) and gray (3001501) affect compatibility?

A: No. Color is a cosmetic attribute that does not impact electrical performance, mechanical fit, or thermal behavior. Both colors use identical polyamide insulation materials and flammability ratings.

Q: What is the significance of the product status change from obsolete to active?

A: The 3001501 is in active production, ensuring long-term availability and supply chain stability. The 0719155 is obsolete, meaning production has ended. For new designs or systems requiring extended support, the active 3001501 is the appropriate selection.

Q: Are there any compliance or certification differences between these parts?

A: No. Both components are ROHS3 compliant and carry identical UL94 V-2 flammability ratings. Electrical and mechanical certifications (IEC and UL standards) are identical.

Q: What packaging differences exist between these parts?

A: The 0719155 is supplied in standard packaging, while the 3001501 is supplied in bulk packaging. This does not affect component performance or compatibility.
